Using the Device as PROFINET Controller
3.2

Configuring the Device as PROFINET Controller

Properties
Max. number of devices
Min. cycle time
Max. number of devices at 1 ms A
AThis information refers to standard PROFINET devices with up to 4 byte of process data as for example digital I/O
modules. For PROFINET devices with much more process data (50 ...400 byte) as for example IO-Link, RFID or
serial COM interfaces, the cycle time has to be increased to 2, 4 or 8 ms.
3.2.1

Adding the PROFINET Controller to the Project

The PN-Controller from 3S – Smart Software Solutions GmbH is used.
 Add the PN-Controller to the Ethernet interface using the "Add device..." function.

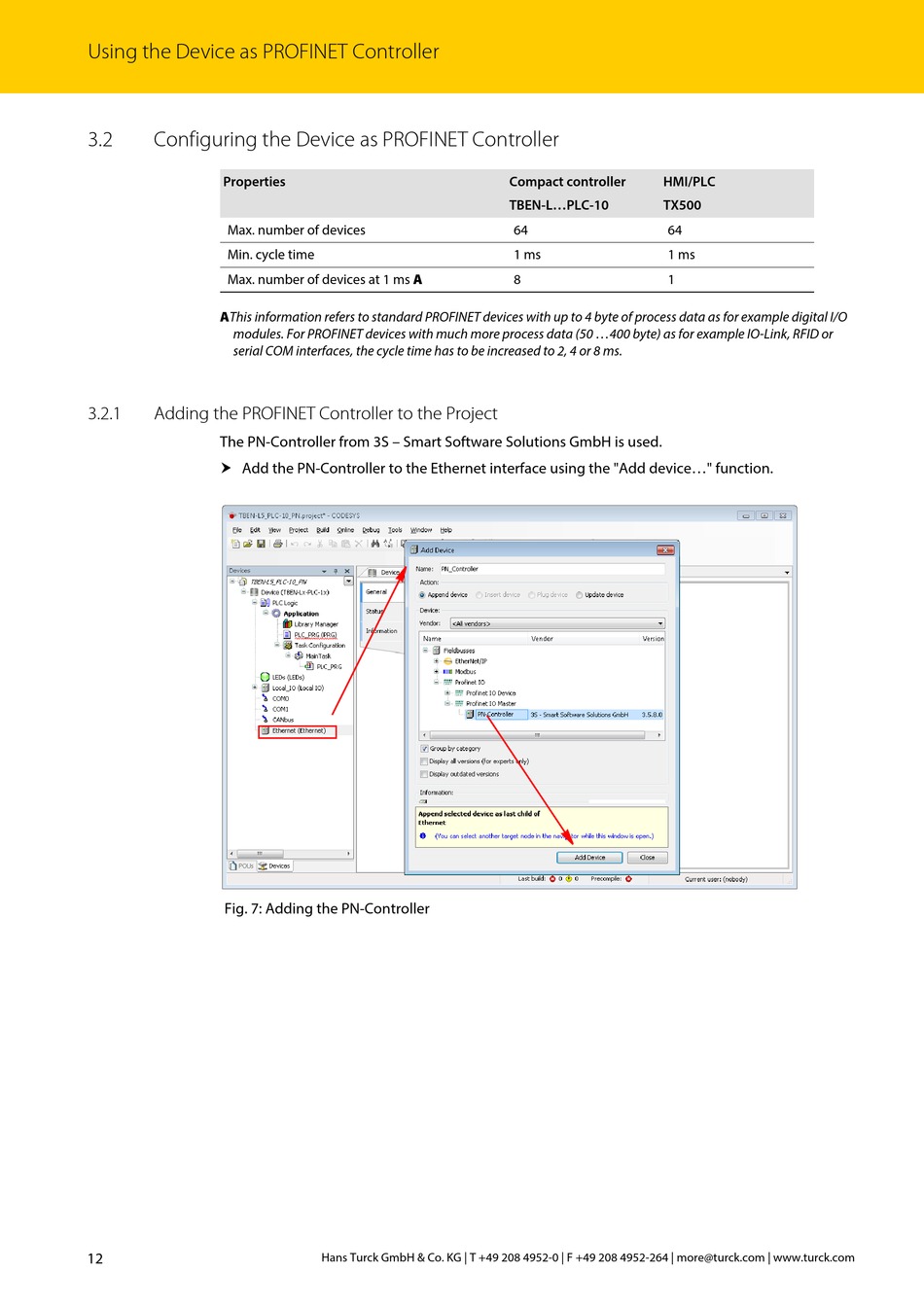

Fig. 7: Adding the PN-Controller
