  • Page 1 Your Global Automation Partner TX700S/D/Q PLC and IIoT Edge Controller Instructions for Use...
  • Page 2 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 3: Table Of Contents

    Table of Contents About These Instructions .........................  5 Target groups........................ 5 Explanation of symbols used .................. 5 Other documents ...................... 5 Feedback about these instructions................ 5 Notes on the Product .........................  6 Product identification.....................  6 2.1.1 Type label............................ 6 2.1.2 Type code ............................
  • Page 4 10 Troubleshooting .......................... 30 11 Repair.............................. 31 11.1 Returning devices...................... 31 12 Disposal .............................. 31 13 Technical Data........................... 32 14 Appendix: Approvals and markings ..................... 34 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 5: About These Instructions

    We make every effort to ensure that these instructions are as informative and as clear as pos- sible. If you have any suggestions for improving the design or if some information is missing in the document, please send your suggestions to techdoc@turck.com. V01.00 | 2020/11...
  • Page 6: Notes On The Product

    TX700Q Ident No. 100009355 Year/week of production A2048 Serial number (S.N.) AA… Internal version ID of the product (V) 121… Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 7: Type Code

    2.1.2 Type code TX 7 05 FB – P3 CV 01 Product series Series Screen diagonal Product series Serie Size Turck HMI/PLC TX700 series Without display 5” 7” 10.1” 15.6” 21.5” – Variant Visualization Variant Visualization Blank Standard P3 CODESYS V3 PLC Runtime CV CODEYS V3 TargetVisu Runtime Food &...
  • Page 8: Manufacturer And Service

    For further inquiries in Germany contact the Sales and Service Team on: Sales: +49 208 4952-380 Technology: +49 208 4952-390 Outside Germany, please contact your local Turck representative. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 9: For Your Safety

    The product is designed according to state-of-the-art technology. However, residual risks still exist. Observe the following warnings and safety notices to prevent damage to persons and property. Turck accepts no liability for damage caused by failure to observe these warning and safety notices.
  • Page 10: Product Description

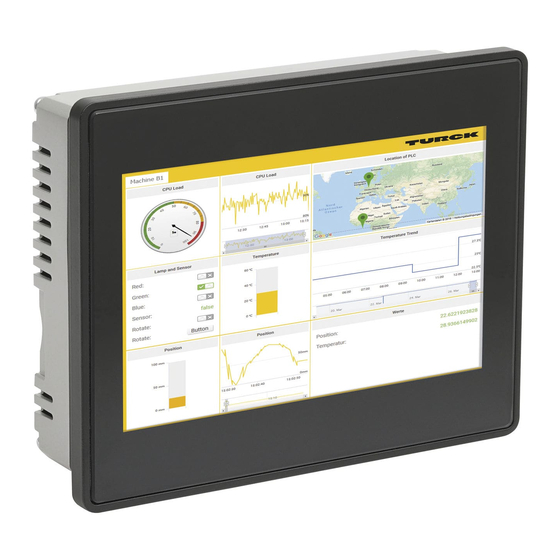

    IP20 CODESYS V3 PLC and IIoT edge controller, WebVisu, quad core A9 800 MHz, 3 Ethernet ports, 8 GB flash, 2 GB RAM Device overview Fig. 3: TX700S Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 11: Properties And Features

    Properties and features Gateway function with OPC UA Server and Client (with TX VisuPro) Safe connection to Turck Cloud with complete network isolation MQTT for connecting all common cloud systems (with TX VisuPro) CODESYS V3 PLC runtime with selection of the most important I/O protocols...
  • Page 12: Interfaces

    Specification Format FAT, FAT32 Max. size Limited by FAT32 specifications ≤ 4 GB for a single file ≤ 32 GB Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 13: Accessories

    USB 2.0 extension cable, male (A) to female (A), 5 m 6827390 USB 2.0 EXTENSION ACTIVE 5M USB 2.0 extension cable, male (A) to female (A), with active repeater, 5 m NOTE You will find further accessory products under www.turck.com. V01.00 | 2020/11...
  • Page 14: Installing

    Installing plug-in modules Fig. 5: Installing plug-in modules Fig. 6: Installing plug-in modules (e. g. TX-CAN, TX-IO-DX06) (e. g. TX-IO-XX03) Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 15: Grounding The Device

    Grounding the device „ Connect terminal 3 of the supply connector to the ground terminal. General instructions for device grounding „ All the electronic devices in the control system must be properly grounded. „ Carry out grounding according to the applicable regulations. „...
  • Page 16: Connecting

    Ethernet port 0 (10/100 Mbps) USB port , V2.0, max. 500 mA Extension slot for plug-in modules SD card slot Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 17: Connecting Tx700D/Q

    Connecting TX700D/Q Fig. 9: TX700D/Q – connectors Port Description USB port , V2.0, max. 500 mA Ethernet port 2 (10/100 Mbps) Ethernet port 1 (10/100 Mbps) Serial interface Ethernet port 0 (10/100/1000 Mbps) Power supply 2 extension slots for plug-in modules SD card slot V01.00 | 2020/11...
  • Page 18: Connecting The Power Supply

    Default settings of the Ethernet ports ETH0/WAN: DHCP ETH1/LAN: IP address: 192.168.1.254 Subnet mask: 255.255.255.0 ETH2/LAN: DHCP (TX700D and TX700Q only) Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 19: Connecting External Devices To The Serial Interface

    Connecting external devices to the serial interface The serial port is used to communicate with a PLC or with another type of device. The following standards are available at the serial interface: The type of serial interface is determined in the programming software.
  • Page 20: Connecting Plug-In Modules

    RS232 Serial TX-IO-DX06 Compact I/O TX-IO-XX03 Multifunction I/O 1 TX700S: TX-EXTEND or other extension module with extension slot neces- sary Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 21: Slot Assignment - Can Port

    Module Application Max. number of modules Interface type/ Bus extension communication connector interface TX-DP-S PROFIBUS-DP slave TX-UMTS UMTS modem Serial TX-EXTEND Extension module 1 for TX700S None The column max. modules refers to the max. number of modules which can be plugged into the HMI (all slots).
  • Page 22: Commissioning

    IP address for Ethernet port ETH1 has already been changed, than the current IP address of the port is entered here. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 23: Setting The Ip Address

    Setting the IP address The IP address can be set via the device’s web server or via the Turck Service Tool. 7.4.1 Setting the IP address via the web server „ Log in to the device’s web server as described under “Web server login”.
  • Page 24: Setting The Ip Address Via Turck Service Tool

    Turck Service Tool shows the connected devices. NOTE Clicking the device's IP address opens the web server. Fig. 16: Turck Service Tool – found devices Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 25: Programming With Codesys

    Change the IP address and the net mask, if necessary. „ Accept the changes with Set in device . Fig. 17: Turck Service Tool – changing the IP configuration Programming with CODESYS The devices are delivered with a pre-installed CODESYS runtime.
  • Page 26: Transferring Tx Visupro To The Device

    Project transfer via a USB stick „ Create an update package with TX VisuPro and copy it to a USB stick. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 27: Configuring

    Configuring The devices have an integrated a webserver for configuring the system. The user interface is based on HTML pages accessible via port 443 using a Web browser (Firefox V.79 Chrome V.44 or higher). Alternatively, the system settings can be called and operated via a VNC client. To use the VNC client, the VNC service must be activated in the system settings.
  • Page 28 ("user”). The administrator has full access to the sys- tem settings (updates of the BSP and other system components). The standard user has some restrictions. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 29: Operating

    Operating DANGER Changing components Explosion hazard – Suitability for Class 1, Division 2 possibly impaired „ When replacing components, make sure that the suitability of the device for Class 1, Division 2 is not affected. „ Only use components that are suitable for use in Class 1, Division 2. „...
  • Page 30: Troubleshooting

    If there are no faults, there is a device malfunction. In this case, decommission the device and replace it with a new device of the same type. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 31: Repair

    Observe our return acceptance conditions when returning the device to Turck. 11.1 Returning devices Returns to Turck can only be accepted if the device has been equipped with a Decontamination declaration enclosed. The decontamination declaration can be downloaded from https://www.turck.de/en/retoure-service-6079.php and must be completely filled in, and affixed securely and weather-proof to the outside of the packaging.
  • Page 32: Technical Data

    For applications requiring compliance with EN 61131-2 and specifically in reference to 10 ms voltage dips, the minimum power supply voltage is 18 VDC. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
  • Page 33 Protection class Complete device IP20 EN 60529 Environmental conditions Operating temperature -20…+60 °C (vertical installation) EN 60068- 2- 14 (surrounding air temperature) Plug-in modules and USB devices may limit the maximum temperature to +50 °C Storage temperature -20…+70 °C EN 60068-2-1 EN 60068-2-2 EN 60068-2-14 Operating and storage humidity...
  • Page 34: Appendix: Approvals And Markings

    CAN/CSA C22.2 No. 61010-1, 3rd Edition and CAN/CSA C22.2 No. 61010-2-201:14 cULus (UL File No. E484803) Class I, Division 2, Groups A, B, C and D Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
