Using the Device as PROFINET Controller
3.3.5

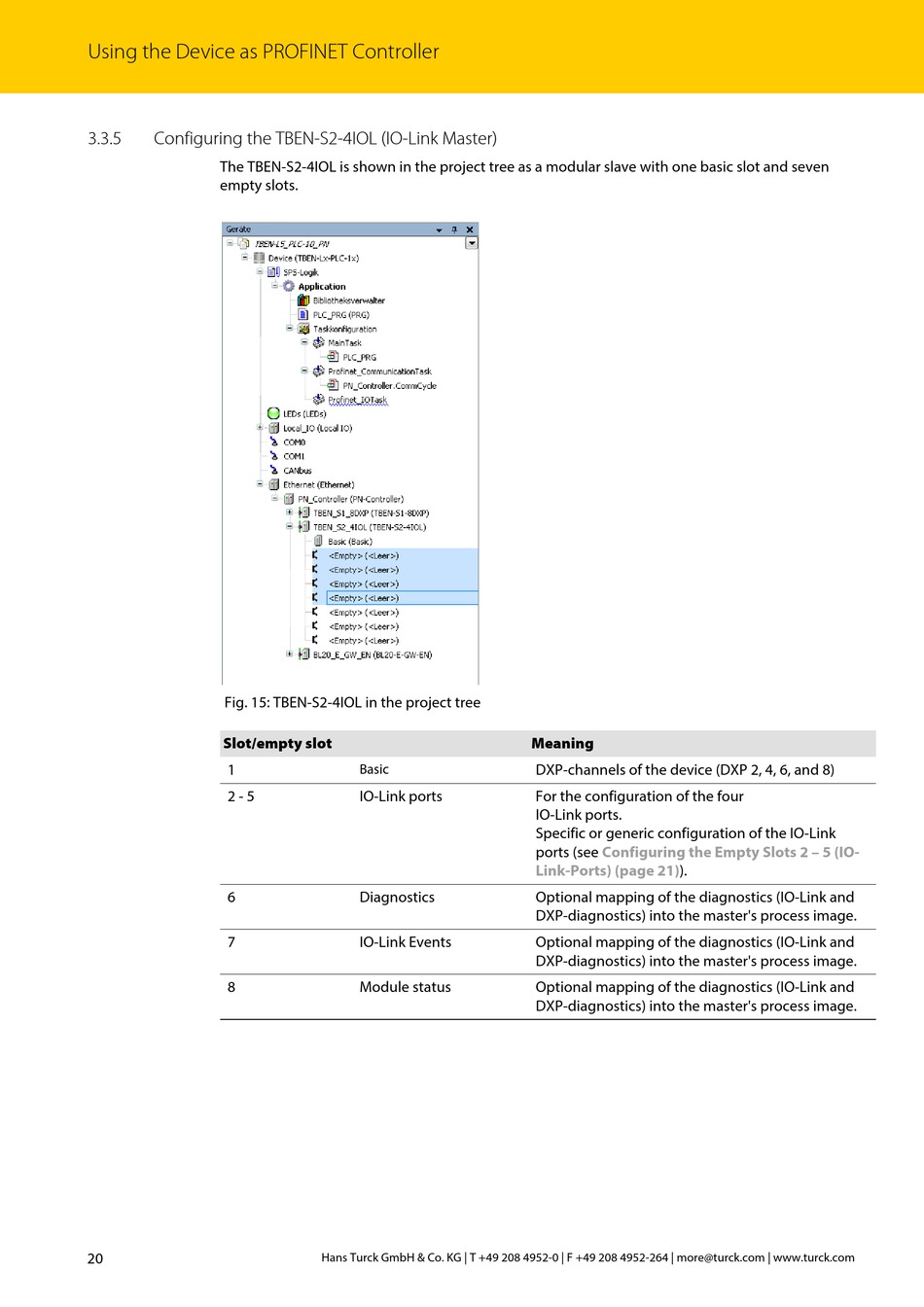

Configuring the TBEN-S2-4IOL (IO-Link Master)

The TBEN-S2-4IOL is shown in the project tree as a modular slave with one basic slot and seven
empty slots.
Fig. 15: TBEN-S2-4IOL in the project tree
Slot/empty slot
1
2 - 5
6
7
8
20
Basic
IO-Link ports
Diagnostics
IO-Link Events
Module status
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
Meaning
DXP-channels of the device (DXP 2, 4, 6, and 8)
For the configuration of the four 
IO-Link ports.
Specific or generic configuration of the IO-Link
ports (see Configuring the Empty Slots 2 – 5 (IO-
Link-Ports) (page 21)).
Optional mapping of the diagnostics (IO-Link and
DXP-diagnostics) into the master's process image.
Optional mapping of the diagnostics (IO-Link and
DXP-diagnostics) into the master's process image.
Optional mapping of the diagnostics (IO-Link and
DXP-diagnostics) into the master's process image.
