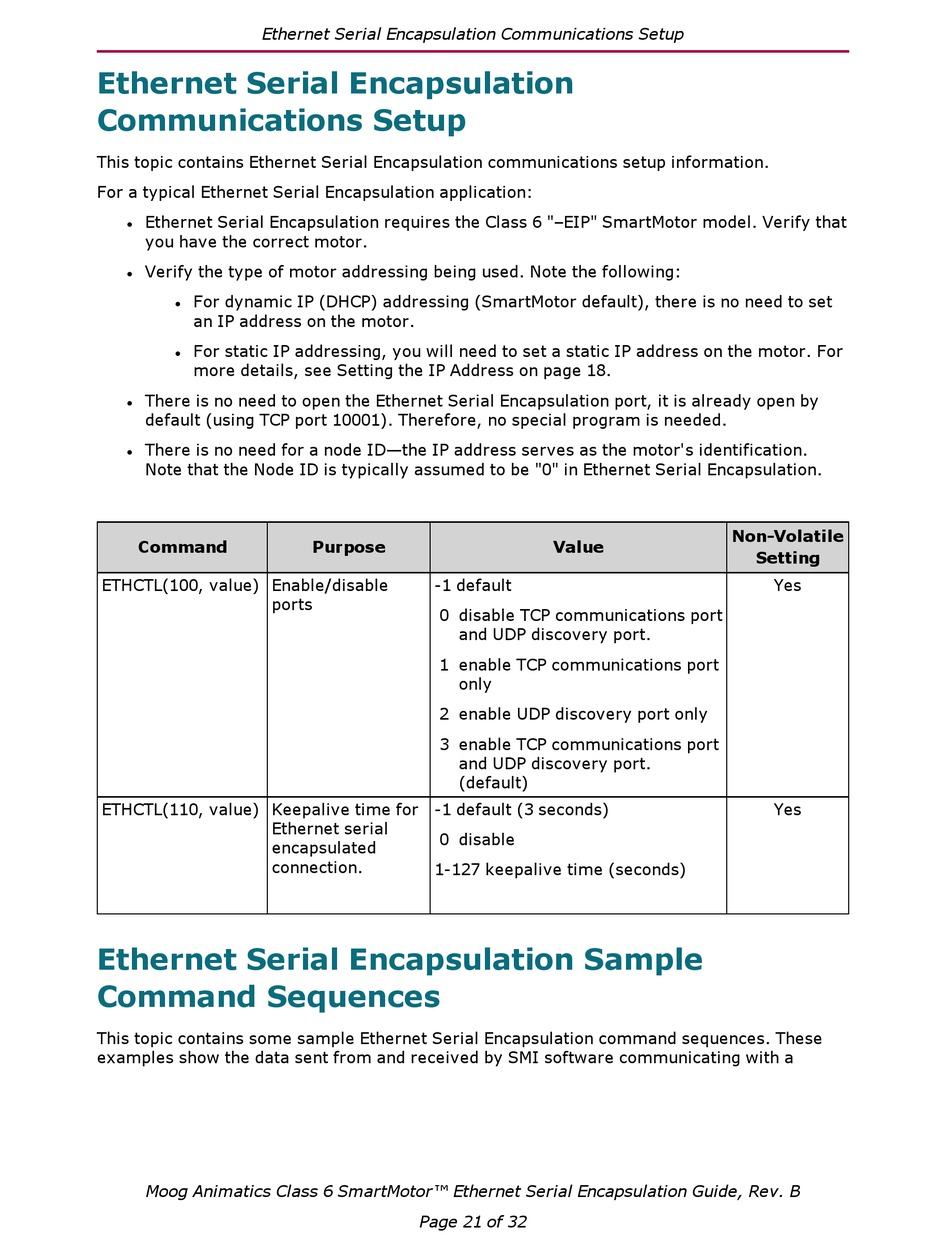

Ethernet Serial Encapsulation Communications Setup

Ethernet Serial Encapsulation
Communications Setup
This topic contains Ethernet Serial Encapsulation communications setup information.
For a typical Ethernet Serial Encapsulation application:
Ethernet Serial Encapsulation requires the Class 6 "–EIP" SmartMotor model. Verify that
l
you have the correct motor.
Verify the type of motor addressing being used. Note the following:
l
For dynamic IP (DHCP) addressing (SmartMotor default), there is no need to set
l
an IP address on the motor.
For static IP addressing, you will need to set a static IP address on the motor. For
l
more details, see Setting the IP Address on page 18.
There is no need to open the Ethernet Serial Encapsulation port, it is already open by
l
default (using TCP port 10001). Therefore, no special program is needed.
There is no need for a node ID—the IP address serves as the motor's identification.
l
Note that the Node ID is typically assumed to be "0" in Ethernet Serial Encapsulation.
Command
ETHCTL(100, value) Enable/disable
ports
ETHCTL(110, value) Keepalive time for
Ethernet serial
encapsulated
connection.
Ethernet Serial Encapsulation Sample
Command Sequences
This topic contains some sample Ethernet Serial Encapsulation command sequences. These
examples show the data sent from and received by SMI software communicating with a
Moog Animatics Class 6 SmartMotor™ Ethernet Serial Encapsulation Guide, Rev. B
Purpose
-1 default
0 disable TCP communications port
and UDP discovery port.
1 enable TCP communications port
only
2 enable UDP discovery port only
3 enable TCP communications port
and UDP discovery port.
(default)
-1 default (3 seconds)
0 disable
1-127 keepalive time (seconds)
Page 21 of 32
Non-Volatile
Value
Setting
Yes
Yes
