MECHANICAL CABLE ROUTING

It is recommended that front and rear derailleur cables be installed after the brake hose has been installed.
These routing illustrations are intended as a supplement to the manufacturer's installation instructions
only. Please refer to the component manufacturer's service center or website for further information.
9

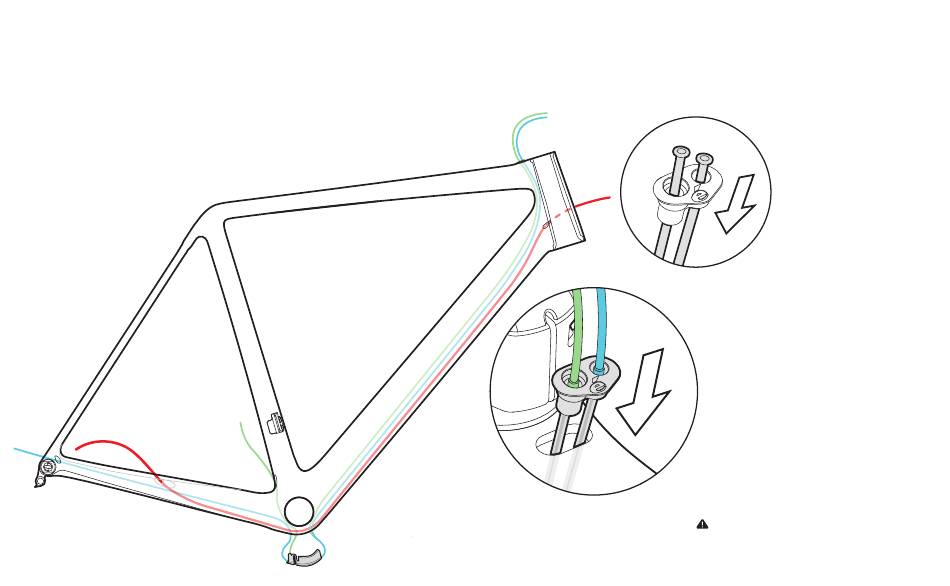

Insert plastic noodles
into Top Tube Cable
Stop (Mechanical).
Assemble shifter cables (with
ferrules) so that the rear housing
is inserted into the drive-side port
of the Top Tube Cable Stop, and the
front housing into the non-drive side.
The housing should be long enough
that it passes in a smooth arc from
the lower back of the bar, over the
stem cap, and enters perpendicular
to the top tube. The housing nests
in the cable stop, with the cables
continuing into the frame though the
noodles.
Failure to use the cable noodles may
result in damage to the frame.
