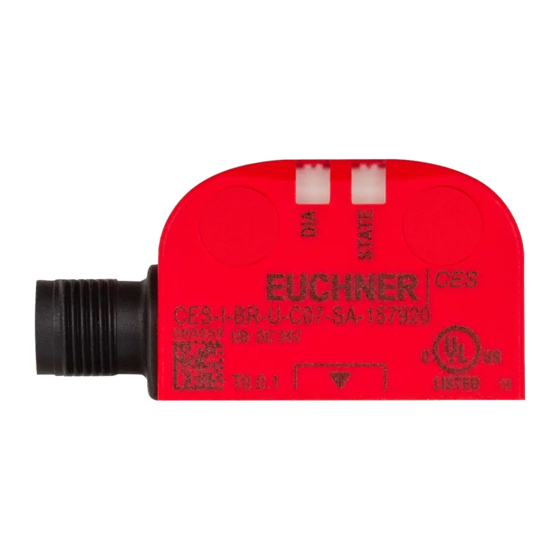

- Page 1 Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… (Unicode/Multicode)
-
Page 2: Table Of Contents
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… Contents About this document ..................... 4 1.1. Scope ............................4 1.2. Target group ..........................4 1.3. Key to symbols ..........................4 1.4. Supplementary documents ......................4 Correct use ......................5 Description of the safety function ................6 Exclusion of liability and warranty ................. 6 General safety precautions ................... - Page 3 Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… Technical data ....................22 11.1. Technical data of safety switch CES-I-BR-C07-… ................22 11.1.1. Radio frequency approvals ....................23 11.1.2. Typical system times ......................24 11.1.3. Dimension drawing for safety switch CES-I-BR-C07-… ............24 11.2. Technical data of actuator CES-A-BTN-C07-… ..................25 11.2.1.
-
Page 4: About This Document
Always read all documents to gain a complete overview of safe installation, setup and use of the device. The documents can be downloaded from www.euchner.com. For this purpose enter the doc. no. or the order number for the device in the search box. -
Page 5: Correct Use
EN 60204-1, Safety of machinery – Electrical equipment of machines. The safety switch is only allowed to be operated in conjunction with the intended EUCHNER CES actuators and the related connection components from EUCHNER. On the use of different actuators or other connection components, EUCHNER provides no warranty for safe function. -
Page 6: Description Of The Safety Function
Prior to use, read the operating instructions and keep these in a safe place. Ensure the operating instructions are always available during mounting, setup and servicing. For this reason you should archive a printed copy of the operating instructions. You can download the operating instructions from www.euchner.com. (translation of the original operating instructions) 2510145-02-07/18... -
Page 7: Function
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 6. Function The safety switch monitors the position of movable guards. The safety outputs are switched on/off when the actuator is moved into/out of the operating distance. The system consists of the following components: coded actuator (transponder) and switch. Whether the device learns the complete actuator code (unicode) or not (multicode) depends on the respective version. -
Page 8: Installation
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 7. Installation CAUTION Safety switches must not be bypassed (bridging of contacts), turned away, removed or otherwise rendered ineffective. Ì Observe EN ISO 14119:2013, section 7, for information about reducing the possibilities for by- passing an interlocking device. NOTICE Risk of damage to equipment and malfunctions as a result of incorrect installation. -
Page 9: Electrical Connection
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 8. Electrical connection The following connection options are available: Ì Separate operation Ì Series connection with Y-distributors Ì Series connection, e.g. with wiring in the control cabinet. WARNING If there is a mistake, loss of the safety function due to incorrect connection. Ì... -
Page 10: Notes About
Ì On the usage of other connection components, the requirements in the following table apply. EUCHNER provides no warranty for safe function in case of failure to comply with these require- ments. Observe the following requirements with respect to the connection cables:... -
Page 11: Maximum Cable Lengths
Possible output current per channel FO1A/FO1B Max. cable length from the last switch to the control system 0.34 mm² Contact EUCHNER in the following cases: Ì If you connect more than 10 switches in series. Ì If you plan to use a different cable design (cross-section, material, etc.). -
Page 12: Determining Cable Lengths Using The Example Table
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 8.5.1. Determining cable lengths using the example table Example: six switches are to be used in series. Cabling with a length of 40 m is routed from a safety relay in the control cabinet to the last switch (#6). Cables with a length of 20 m each are connected between the individual safety switches. = 140 m = 40 m = 5 x 20 m... -
Page 13: Pin Assignment Of Safety Switch Ces-I-Br
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 8.6. Pin assignment of safety switch CES-I-BR FI1A FI1B FO1A FO1B OD/C coding lug View of connection side on the safety switch Figure 2: Pin assignment of safety switch CES-I-BR Designation Description FI1B Enable input for channel 2 Power supply, DC 24 V FO1A Safety output, channel 1... -
Page 14: Pin Assignment Of Y-Distributor
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 8.7. Pin assignment of Y-distributor Pin assignment of safety switch CES-I-BR (8-pin plug) Y-distributor (8-pin socket) Function X1.1 FI1B X1.2 X1.3 FO1A X1.4 FO1B X1.5 X1.6 FI1A X1.7 0 V X1.8 Y-distributor Y-distributor with connecting cable 097627 111696 or 112395 Strapping plug 097645... -
Page 15: Connection Of A Single Br Device
The user is responsible for safe integration into the overall system. Detailed application examples can be found at www.euchner.com. Simply enter the order number in the search box. All available connection examples for the device can be found in “Downloads.”... -
Page 16: Connection Of Several Devices In A Switch Chain
The user is responsible for safe inte- gration into the overall system. Detailed application examples can be found at www.euchner.com. Simply enter the order number in the search box. You will find all available connection examples for the device in Downloads. - Page 17 Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… Read Head Read Head Read Head Figure 4: Connection example for series connection 2510145-02-07/18 (translation of the original operating instructions)
-
Page 18: Notes On Operation With Safe Control Systems
Ì Always connect inputs FI1A and FI1B directly to a power supply unit or to outputs FO1A and FO1B of another EUCHNER BR device (series connection). Pulsed signals must not be present at inputs FI1A and FI1B. -
Page 19: Commissioning
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 9. Commissioning 9.1. LED displays You will find a detailed description of the signal functions in chapter 10. System status table CES‑I‑BR‑… on page 21. LEDs Color STATE green 9.2. Teach-in function for actuator (only for unicode evaluation) The actuator must be allocated to the safety switch using a teach-in function before the system forms a functional unit. -
Page 20: Functional Check
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 9.3. Functional check WARNING Danger of fatal injury as a result of faults in installation and functional check. Ì Before carrying out the functional check, make sure that there are no persons in the danger zone. Ì... -
Page 21: System Status Table Ces-I-Br
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 10. System status table CES-I-BR-… LED indicator Output operating mode State 5 Hz Self-test Self-test after power-up (5 s) 5 Hz Hot plugging (5 s) Normal operation, door closed, safety outputs on the preceding device in the switch chain closed switched on Normal operation, door closed, safety outputs on the preceding device in the switch chain... -
Page 22: Technical Data
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 11. Technical data NOTICE If a data sheet is included with the product, the information on the data sheet applies. 11.1. Technical data of safety switch CES-I-BR-C07-… Parameter Value Unit min. typ. max. Housing material PBT plastic Dimensions 40 x 26.5 x 18... -
Page 23: Radio Frequency Approvals
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 11.1.1. Radio frequency approvals FCC ID: 2AJ58-01 22052-01 FCC/IC-Requirements This device complies with part 15 of the FCC Rules and with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 24: Typical System Times
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 11.1.2. Typical system times Please refer to the technical data for the exact values. Ready delay: After switching on, the device carries out a self-test. The system is ready for operation only after this time. Switch-on time of safety outputs: The max. -
Page 25: Technical Data Of Actuator Ces-A-Btn-C07
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 11.2. Technical data of actuator CES-A-BTN-C07-… Parameter Value Unit min. typ. max. Housing material PBT plastic Dimensions 42 x 25 x 18 Weight 0.03 Ambient temperature - 40 + 70 °C Degree of protection IP 65/IP 67/IP 69/IP 69K Installation position Active face opposite read head... -
Page 26: Operating Distances And Approach Directions
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 11.2.2. Operating distances and approach directions (only in conjunction with actuator CES-A-BTN-C07) Typical operating distance in approach direction A - 2 6 - 1 0 - 1 4 - 1 8 - 2 2 - 2 6 - 3 0 Switching distances on approach in x direction without center offset (z, y = 0) - Page 27 Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… Typical operating distance in approach direction C - 2 2 - 1 0 - 1 4 Switching distances on approach in x direction without center offset (z, y = 0) Parameter Value Unit min. typ. max. Switch-on distance Assured switch-on distance s Switching hysteresis Assured switch-off distance s...
-
Page 28: Technical Data Of Actuator Ces-A-Bdn-06-158210
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 11.3. Technical data of actuator CES-A-BDN-06-158210 Parameter Value Unit min. typ. max. Housing material Macromelt PA-based plastic Dimensions 26 x ∅ 6 Weight 0.005 Ambient temperature - 40 + 70 °C Degree of protection acc. to EN IEC 60529 IP 65/IP 67/IP 69/IP 69K Installation position Active face opposite read head... -
Page 29: Ordering Information And Accessories
12. Ordering information and accessories Tip! Suitable accessories, e.g. cables or assembly material, can be found at www.euchner.com. To order, enter the order number of your item in the search box and open the item view. Accessories that can be combined with the item are listed in “Accessories.”... -
Page 30: Declaration Of Conformity
Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 15. Declaration of conformity (translation of the original operating instructions) 2510145-02-07/18... - Page 31 Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… 2510145-02-07/18 (translation of the original operating instructions)
- Page 32 Edition: 2510145-02-07/18 Title: Operating Instructions Non-Contact Safety Switch CES-I-BR-.-C07-… (translation of the original operating instructions) Copyright: © EUCHNER GmbH + Co. KG, 07/2018 Subject to technical modifications; no responsibility is accept- ed for the accuracy of this information.
