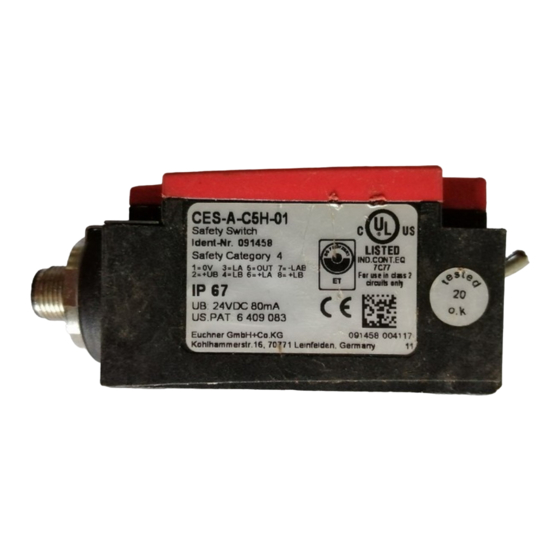

- Page 1 Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX Unicode/Multicode...
-
Page 2: Table Of Contents
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX Contents About this document ..................... 4 1.1. Scope ............................4 1.2. Target group ..........................4 1.3. Key to symbols ..........................4 1.4. Supplementary documents ......................4 Correct use ......................5 Description of the safety function ................6 Explosion protection safety concept ..............7 Exclusion of liability and warranty ................. - Page 3 Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX Technical data ....................22 13.1. Safety switch CES-A-C5H-EX ......................22 13.1.1. Technical data, safety switch CES-A-C5H-EX ...............23 13.1.2. Typical system times ......................24 13.2. Actuator CES-A-BPA-EX ........................25 13.2.1. Technical data .........................25 13.2.2. Typical actuating range.....................26 13.2.3. Actuating range for center offset m = 0 1) ....................26 13.3.
-
Page 4: About This Document
Important! Always read all documents to gain a complete overview of safe installation, setup and use of the device. The documents can be downloaded from www.euchner.com. For this purpose enter the doc. no. in the search box. (Translation of the original operating instructions) 2110182-10-02/20... -
Page 5: Correct Use
Ì EN 60079-14 Ì EN 60079-31 The safety switch must be used only in conjunction with the designated CES actuators from EUCHNER. On the use of different actuators, EUCHNER provides no warranty for safe function. Important! Ì Devices with ATEX rating may be operated only with actuators that also have an ATEX rating for the same zone. -
Page 6: Description Of The Safety Function
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX Table 1: Possible combinations for CES components Actuator Safety Switch CES-A-BBA-EX CES-A-BPA-EX 098158 102125 CES-A-C5H-EX Combination possible Combination possible, guard locking for process protection Key to symbols Combination possible, guard locking for personnel protection Combination not permissible Table 2: Associated connection cables Designation... -
Page 7: Explosion Protection Safety Concept
… Dc X = To prevent electrostatic charging, do not subject the switch/actuator to any processes that generate a large amount of charge. Safety switches with ATEX identification marking from EUCHNER are not safety devices as defined by the ATEX Directive. The specified type of protection ic applies only to the integrated reader module. The electrical circuits in the device connec- tion (M12 plug connector) are not intrinsically safe! In case of mounting on heating/cooling sources, the permissible ambient temperature (see technical data) must be observed. -
Page 8: General Safety Precautions
Prior to use, read the operating instructions and keep these in a safe place. Ensure the operating instructions are always available during mounting, setup and servicing. For this reason you should archive a printed copy of the operating instructions. You can download the operating instructions from www.euchner.com. (Translation of the original operating instructions) 2110182-10-02/20... -
Page 9: Function
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 7. Function The safety switch monitors the position of movable guards. The safety outputs are switched on/off when the actuator is moved to/removed from the actuating range. The system consists of the following components: coded actuator (transponder) and switch. Whether the device learns the complete actuator code (unicode) or not (multicode) depends on the respective version. -
Page 10: Block Diagram
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 7.3. Block diagram Coded Trans- actuator ponder Output circuit: Power supply Read head with for load A Read head evaluation unit Load A CES-A-.5 -LAB Common ground for output A and B Pin assignment: Function Core color WH/white... -
Page 11: Changing The Approach Direction
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 8. Changing the approach direction NOTICE Risk of damage to equipment as a result of trapped cables. Ì Make sure that the cables are not trapped or torn off when the approach direction is changed. The active face of the read head can be adjusted in 5 directions. -
Page 12: Mounting
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 9. Mounting WARNING On use in potentially explosive atmospheres the following applies: Ì Protection against mechanical effects on the switch: - Install switch so that the rear of the housing is entirely covered in order to protect it from me- chanical damage through impact. - Page 13 Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX Note the following points: Ì Actuator and safety switch must be easily accessible for inspection and replacement. Ì Actuator and safety switch must be fitted so that - the front faces are at the minimum operating distance 0.8 x S or closer when the guard is closed.
-
Page 14: Electrical Connection
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 10. Electrical connection WARNING Loss of the safety function due to incorrect connection. Ì Not suitable for safety relays that realize short-circuit monitoring with different potentials (0 V/24 V). The voltage at +LA/+LB must correspond to the information in the technical data. +24 V CES-A-.5 -LAB... -
Page 15: Notes About
Danger of explosion or malfunctions as a result of incorrect connection cables. Ì For connecting cables, the requirements in the following table apply. EUCHNER provides no war- ranty for safe function in case of failure to comply with these requirements. -
Page 16: Connector Assignment Of Safety Switch Ces-A-C5H-Ex
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX Observe the following requirements with respect to the connecting cables: Table 3: Voltage drop as a function of switching current and cable length (examples) Switching current Cable length “l” Voltage drop Max. voltage drop Max. -
Page 17: Correct Connection
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 10.5. Correct connection WARNING In the event of a fault, loss of the safety function due to incorrect connection. Ì To ensure safety, both safety outputs (LA and LB) must always be evaluated. Ì To achieve category 3/4 according to EN ISO 13849-1, it is necessary to monitor the downstream contactors. -
Page 18: Connection Example
Detailed application examples can be found at www.euchner.com. Simply enter the order number of your switch in the search box. All available connection examples for the device can be found in “Downloads.”... -
Page 19: Setup
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 11. Setup 11.1. LED displays Color State Meaning illumi- Normal operation nated STATE green - Teach-in operation flashing (for further signal function, see chapter 12. System status table on page 21) illumi- yellow Valid actuator detected nated OUT/ERROR - Internal electronics fault... -
Page 20: Carrying Out Teach-In For A New Actuator
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 11.2.2. Carrying out teach-in for a new actuator A maximum of 8 teach-in operations can be performed. The number of already completed teach-in operations is signaled by the flashing sequence of the STATE LED each time the power supply is connected (see 12. System status table on page 21, area Status indication). -
Page 21: System Status Table
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 12. System status table LED indicator Output Output Operating mode State closed Normal operation, door closed Normal operation open Normal operation, door open open 4 Hz Initial setup after delivery, ready for first teach-in operation 1 Hz closed Teach-in operation... -
Page 22: Technical Data
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 13. Technical data NOTICE If a data sheet is included with the product, the information on the data sheet applies. 13.1. Safety switch CES-A-C5H-EX Ì Read head and evaluation unit integrated in the normal housing Ì... -
Page 23: Technical Data, Safety Switch Ces-A-C5H-Ex
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 13.1.1. Technical data, safety switch CES-A-C5H-EX Value Parameter Unit min. typ. max. Housing material PBT V0 GF30 Dimensions Acc. to EN 60947-5-2 Weight Ambient temperature at U = DC 24 V °C Degree of protection IP65/IP67 Degree of contamination Rated insulation voltage U... -
Page 24: Typical System Times
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 13.1.2. Typical system times Refer to the technical data for the exact values. Ready delay: After switch-on, the device carries out a self-test. The system is ready for operation only after this time. Turn-on time of safety outputs: The max. reaction time t is the time from the moment when the actuator is in the actu- ating range to the moment when the safety outputs switch on. -
Page 25: Actuator Ces-A-Bpa-Ex
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 13.2. Actuator CES-A-BPA-EX Ì Cube-shaped design 40 x 40 mm ATEX rating II 3G Ex ic IIC T6 Gc II 3D Ex ic IIIC T85°C Dc X Dimension drawing for CES-A-BPA-EX - 0,25 CES-A-BPA-EX IP67 Active face Active face 2 safety screws M4 x 14 included... -
Page 26: Typical Actuating Range
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 13.2.2. Typical actuating range Only in conjunction with actuator CES-A-BPA-EX on surface mounting. - 4 5 - 4 5 For a side approach direction for the actuator and read head, a minimum distance of s = 6 mm must be maintained so that the actuating range of the side lobes is not entered. -
Page 27: Actuator Ces-A-Bba-Ex
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 13.3. Actuator CES-A-BBA-EX Ì Cube-shaped design 42 x 25 mm ATEX rating II 3G Ex ic IIC T6 Gc II 3D Ex ic IIIC T85°C Dc X Dimension drawing CES-A-BBA-EX CES-A-B BA-EX 32 ±0,1 Active face Active face 2 safety screws M4 x 14 included 13.3.1. -
Page 28: Typical Actuating Range
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 13.3.2. Typical actuating range Only in combination with actuator CES-A-BBA-EX. - 3 0 - 3 0 For a side approach direction for the actuator and safety switch, a minimum distance of s = 4 mm must be maintained so that the actuating range of the side lobes is not entered. -
Page 29: Ordering Information And Accessories
14. Ordering information and accessories Tip! Suitable accessories, e.g. cables or assembly material, can be found at www.euchner.com. To order, enter the order number of your item in the search box and open the item view. Accessories that can be combined with the item are listed in “Accessories.”... -
Page 30: Declaration Of Conformity
Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 17. Declaration of conformity (Translation of the original operating instructions) 2110182-10-02/20... - Page 31 Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX 2110182-10-02/20 (Translation of the original operating instructions)
- Page 32 Edition: 2110182-10-02/20 Title: Operating Instructions Non-Contact Safety Switch CES-A-C5H-EX (Translation of the original operating instructions) Copyright: © EUCHNER GmbH + Co. KG, 02/2020 Subject to technical modifications; no responsibility is accept- ed for the accuracy of this information.
