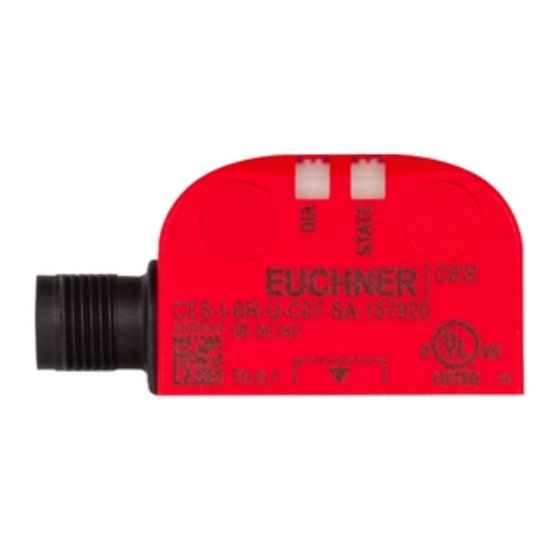

- Page 1 Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… (Unicode/Multicode)
-
Page 2: Table Of Contents
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… Contents About this document ..................... 4 1.1. Scope ............................4 1.2. Target group ..........................4 1.3. Key to symbols ..........................4 1.4. Supplementary documents ......................4 Correct use ......................5 Description of the safety function ................6 Exclusion of liability and warranty ................. 6 General safety precautions ................... - Page 3 Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… Technical data ....................18 11.1. Technical data for safety switch CES-I-BP-C07-… ................18 11.1.1. Radio frequency approvals ....................19 11.1.2. Typical system times ......................20 11.1.3. Dimension drawing for safety switch CES-I-BP-C07-… ............20 11.2. Technical data for actuator CES-A-BTN-C07-… ................21 11.2.1.
-
Page 4: About This Document
Always read all documents to gain a complete overview of safe installation, setup and use of the device. The documents can be downloaded from www.euchner.com. For this purpose enter the doc. no. or the order number for the device in the search box. -
Page 5: Correct Use
Ì EN 60204-1 The safety switch is only allowed to be operated in conjunction with the intended EUCHNER CES actuators and the related connection components from EUCHNER. On the use of different actuators or other connection components, EUCHNER provides no warranty for safe function. -
Page 6: Description Of The Safety Function
Prior to use, read the operating instructions and keep these in a safe place. Ensure the operating instructions are always available during mounting, setup and servicing. For this reason you should archive a printed copy of the operating instructions. You can download the operating instructions from www.euchner.com. (Translation of the original operating instructions) 2528734-01-07/19... -
Page 7: Function
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 6. Function The safety switch monitors the position of movable guards. The safety outputs are switched on/off when the actuator is moved into/out of the operating distance. The system consists of the following components: coded actuator (transponder) and switch. Whether the device learns the complete actuator code (unicode) or not (multicode) depends on the respective version. -
Page 8: Switching States
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 6.3. Switching states The detailed switching states for your switch can be found in the system status table. All safety outputs, monitoring outputs and display LEDs are described there. Guard closed Guard open (actuator in the operating distance and permissi- (actuator not in the operating distance) ble code detected) Safety outputs FO1A and FO1B... -
Page 9: Mounting
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 7. Mounting CAUTION Safety switches must not be bypassed (bridging of contacts), turned away, removed or otherwise rendered ineffective. Ì Observe EN ISO 14119:2013, section 7, for information about reducing the possibilities for by- passing an interlocking device. NOTICE Risk of damage to equipment and malfunctions as a result of incorrect installation. -
Page 10: Electrical Connection
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 8. Electrical connection WARNING If there is a mistake, loss of the safety function due to incorrect connection. Ì To ensure safety, both safety outputs must always be evaluated. Ì Monitoring outputs must not be used as safety outputs. Ì... -
Page 11: Notes About
Use connection components and connecting cables from EUCHNER. Ì On the use of other connection components, the requirements in the following table apply. EUCHNER provides no warranty for safe function in case of failure to comply with these require- ments. Ì... -
Page 12: Connector Assignment Of Safety Switch Ces-I-Bp
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 8.5. Connector assignment of safety switch CES-I-BP-…-SB M12, 5-pin FO1A FO1A FO1A FO1B FO1B FO1B n.c. OD/C n.c. Coding lug View of connection side on the safety switch Figure 1: Connector assignment of safety switch CES-I-BP-…-SB Designation Description Power supply, DC 24 V... -
Page 13: Connection
The user is responsible for safe integration into the overall system. Detailed application examples can be found at www.euchner.com. Simply enter the order number of your switch in the search box. All available connection examples for the device can be found in “Downloads.”... -
Page 14: Connection To A Br Evaluation Unit
A detailed example of connection and setting the parameters of the control system is available for many devices at www.euchner.com in the area Download » Applications » CES. The features of the respective device are dealt with there in greater detail. -
Page 15: Setup
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 9. Setup 9.1. LED displays You will find a detailed description of the signal functions in chapter 10. System status table CES‑I‑BP‑… on page 17. LEDs Color STATE green 9.2. Teach-in function for actuator (only for unicode evaluation) The actuator must be allocated to the safety switch using a teach-in function before the system forms a functional unit. -
Page 16: Functional Check
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 9.3. Functional check WARNING Danger of fatal injury as a result of faults in installation and functional check. Ì Before carrying out the functional check, make sure that there are no persons in the danger zone. Ì... -
Page 17: System Status Table Ces-I-Bp
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 10. System status table CES-I-BP-… LED indicator Output Operating mode State 5 Hz Self-test Self-test after power-up (1.3 s) closed Normal operation, door closed open Normal operation, door open Normal operation flashes closed quickly Normal operation, door closed, actuator in the limit range Re-adjust door ¨... -
Page 18: Technical Data
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 11. Technical data NOTICE If a data sheet is included with the product, the information on the data sheet applies. 11.1. Technical data for safety switch CES-I-BP-C07-… Parameter Value Unit min. typ. max. Housing material PBT plastic Dimensions 40 x 26.5 x 18... -
Page 19: Radio Frequency Approvals
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 11.1.1. Radio frequency approvals FCC ID: 2AJ58-01 22052-01 FCC/IC-Requirements This device complies with part 15 of the FCC Rules and with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 20: Typical System Times
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 11.1.2. Typical system times Please refer to the technical data for the exact values. Ready delay: After switch-on, the device carries out a self-test. The system is ready for operation only after this time. Switch-on time of safety outputs: The max. -
Page 21: Technical Data For Actuator Ces-A-Btn-C07
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 11.2. Technical data for actuator CES-A-BTN-C07-… Parameter Value Unit min. typ. max. Housing material PBT plastic Dimensions 42 x 25 x 18 Weight 0.03 Ambient temperature - 40 + 70 °C Degree of protection IP65/IP67/IP69/IP69K Installation orientation Active face opposite read head... -
Page 22: Operating Distances And Installation Orientations
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 11.2.2. Operating distances and installation orientations (only in conjunction with actuator CES-A-BTN-C07) Typical operating distance in installation orientation A - 2 6 - 1 0 - 1 4 - 1 8 - 2 2 - 2 6 - 3 0 Switching distances for approach from x direction without center offset (z, y = 0)*... - Page 23 Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… Typical operating distance in installation orientation C - 2 2 - 1 0 - 1 4 Switching distances for approach from x direction without center offset (z, y = 0)* Parameter Value Unit min. typ.
-
Page 24: Technical Data For Actuator Ces-A-Bdn-06-158210
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 11.3. Technical data for actuator CES-A-BDN-06-158210 Parameter Value Unit min. typ. max. Housing material Macromelt PA-based plastic Dimensions 26 x ∅ 6 Weight 0.005 Ambient temperature - 40 + 70 °C Degree of protection acc. to EN IEC 60529 IP65/IP67/IP69/IP69K Installation orientation Active face opposite read head... -
Page 25: Ordering Information And Accessories
12. Ordering information and accessories Tip! Suitable accessories, e.g. cables or assembly material, can be found at www.euchner.com. To order, enter the order number of your item in the search box and open the item view. Accessories that can be combined with the item are listed in “Accessories.”... -
Page 26: Declaration Of Conformity
Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 15. Declaration of conformity (Translation of the original operating instructions) 2528734-01-07/19... - Page 27 Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… 2528734-01-07/19 (Translation of the original operating instructions)
- Page 28 Edition: 2528734-01-07/19 Title: Operating Instructions Non-Contact Safety Switch CES-I-BP-.-C07-… (Translation of the original operating instructions) Copyright: © EUCHNER GmbH + Co. KG, 07/2019 Subject to technical modifications; no responsibility is accept- ed for the accuracy of this information.
