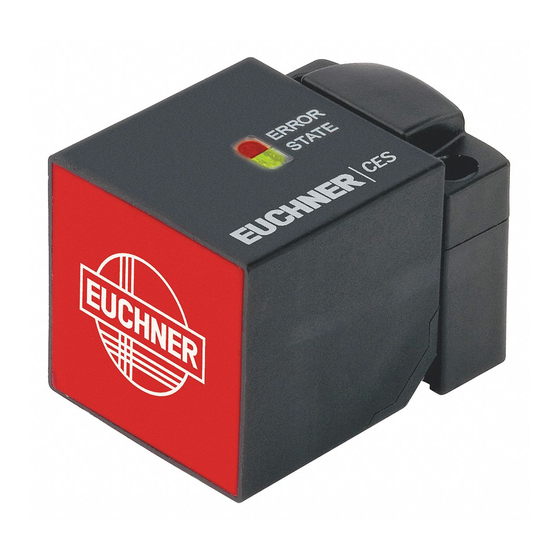

(unicode/multicode) non-contact safety switch
Hide thumbs Also See for CES-AP-C01- Series:

Advertisement

Quick Links

Operating Instructions
Non-Contact Safety Switch
EN
CES-AP-C01-... (Unicode/Multicode)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CES-AP-C01- Series and is the answer not in the manual?

Questions and answers

Summary of Contents for EUCHNER CES-AP-C01- Series

  • Page 1 Operating Instructions Non-Contact Safety Switch CES-AP-C01-… (Unicode/Multicode)
  • Page 2: Table Of Contents

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… Contents About this document ..................... 4 1.1. Scope ............................4 1.2. Target group ..........................4 1.3. Key to symbols ..........................4 1.4. Supplementary documents ......................4 Correct use ......................5 Description of the safety function ................6 Exclusion of liability and warranty ................. 6 General safety instructions..................
  • Page 3 Operating Instructions Non-Contact Safety Switch CES-AP-C01-… Technical data ....................19 6.1. Technical data of safety switch CES-AP-C01-… ................19 6.1.1. Typical system times ......................20 6.1.2. Dimension drawing of safety switch CES-AP-C01-… ............20 6.2. Technical data of actuator CES-A-BBA .....................21 6.2.1. Dimension drawing ......................21 6.2.2.
  • Page 4: About This Document

    Important! Always read all documents to gain a complete overview of safe installation, setup and use of the device. The documents can be downloaded from www.euchner.de. For this purpose enter the doc. no. in the search box. (translation of the original operating instructions) 112663-05-03/15...
  • Page 5: Correct Use

    EN 60204-1, Safety of machinery – Electrical equipment of machines – Part 1: General requirements The safety switch is only allowed to be operated in conjunction with the intended CES actuators from EUCHNER and the related connection components from EUCHNER. On the use of different actuators or other connection components, EUCH- NER provides no warranty for safe function.
  • Page 6: Description Of The Safety Function

    Prior to use, read the operating instructions and keep these in a safe place. Ensure the operating instructions are always available during mounting, setup and servicing. EUCHNER cannot provide any warranty in relation to the readability of the CD for the storage period required. For this reason you should archive a printed copy of the operating instructions.
  • Page 7: Function

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 6. Function The safety switch monitors the position of movable safety guards. The safety outputs are switched on/off when the actuator moves into/out of the operating distance. The system consists of the following components: coded actuator (transponder) and switch. Whether the complete actuator code of the device is taught in (unicode) or not (multicode) depends on the respective version.
  • Page 8: Changing The Approach Direction

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 7. Changing the approach direction NOTICE Risk of damage to equipment as a result of trapped cables. Ì Make sure that the cables are not trapped or torn off when the approach direction is changed. The active face of the read head can be adjusted in 5 directions.
  • Page 9: Mounting

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 8. Mounting CAUTION Safety switches must not be bypassed (bridging of contacts), turned away, removed or otherwise rendered ineffective. Ì Observe EN ISO 14119:2013, section 7, for information about reducing the possibilities for by- passing an interlocking device. NOTICE Risk of damage to equipment and malfunctions as a result of incorrect installation.
  • Page 10: Electrical Connection

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 9. Electrical connection WARNING In case of an error, loss of the safety function through incorrect connection. Ì To ensure safety, both safety outputs must always be evaluated. Ì Monitoring outputs must not be used as safety outputs. Ì...
  • Page 11: Notes About

    Use connection components and connection cables from EUCHNER. Ì On the usage of other connection components, the requirements in the following table apply. EUCHNER provides no warranty for safe function in case of failure to comply with these require- ments. Ì...
  • Page 12: Connector Assignment For Safety Switch Ces-Ap-C01

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 9.5. Connector assignment for safety switch CES-AP-C01 Plug connector 8-pin 5-pin View on the connection side of the safety switch 8-pin 5-pin 5-pin; pin 5 not used n.c. n.c. n.c. n.c. n.c. n.c. n.c. n.c.
  • Page 13: Connection

    The user is responsible for safe integration in the overall system. Detailed application examples can be found at www.EUCHNER.de. Simply enter the order number of your switch in the search box. All available connection examples for the device can be found under “Downloads.”...
  • Page 14 Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 24 V DC Monitoring Safety Output Outputs Connected load Figure 3: Connection example CES-AP-… with reset button (translation of the original operating instructions) 112663-05-03/15...
  • Page 15: Notes On Operation With Safe Control Systems

    A detailed example of connecting and setting the parameters of the control system is available for many devices at www. euchner.de in the area Download » Applications » CES. The features of the respective device are dealt with there in greater detail.
  • Page 16: Setup

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 10. Setup 10.1. LED indicators Color State Significance illumi- Normal operation nated STATE Green - Teach-in operation or power up flashing - Actuator in limit range (from V0.1.2) (refer to chapter 5. System status table on page 18 for further signal functions) illumi- - Internal electronics fault nated...
  • Page 17: Functional Check

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 3.1. Functional check WARNING Danger of fatal injury as a result of faults in installation and functional check. Ì Before carrying out the functional check, make sure that there are no persons in the danger area. Ì...
  • Page 18: System Status Table

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 5. System status table LED indicator, output Operating mode State closed Normal operation, door closed flashes Normal operation closed quickly Normal operation, door closed, actuator in limit range re-adjust door ¨ 2 Hz open Normal operation, door open, no actuator taught open Door open, unit is ready for teach-in for another actuator (only short time after power-up)
  • Page 19: Technical Data

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 6. Technical data NOTICE If a product data sheet is included with the product, the information on the data sheet applies. 6.1. Technical data of safety switch CES-AP-C01-… Parameter Value Unit min. typ. max. Housing material Plastic PBT Dimensions...
  • Page 20: Typical System Times

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 6.1.1. Typical system times Please refer to the technical data for the exact values. Ready delay: After switching on, the unit carries out a self-test. The system is ready for operation only after this time. Switch-on time of safety outputs: The max.
  • Page 21: Technical Data Of Actuator Ces-A-Bba

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 6.2. Technical data of actuator CES-A-BBA Value Parameter Unit min. typ. max. Housing material Fortron, reinforced thermoplastic, fully encapsulated Dimensions 42 x 25 x 12 Ground 0.02 Ambient temperature °C - CES-A-BBA Degree of protection IP67/IP69K Installation position Active face opposite read head Power supply Inductive via read head...
  • Page 22: Typical Operating Distance

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 6.2.3. Typical operating distance (only in combination with CES-A-BBA actuator) - 3 0 - 3 0 For a side approach direction for the actuator and safety switch, a minimum distance of s = 4 mm must be maintained so that the operating distance of the side lobes is not entered.
  • Page 23: Technical Data Of Actuator Ces-A-Bpa

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 6.3. Technical data of actuator CES-A-BPA Parameter Value Unit min. typ. max. Housing material Dimensions 40 x 40 x 10 Ground 0.025 Ambient temperature - 25 + 70 °C Degree of protection acc. to EN IEC 60529 IP67/IP69K Installation position Active face opposite read head...
  • Page 24: Typical Operating Distance

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 6.3.3. Typical operating distance (only in conjunction with actuator CES-A-BPA on surface mounting) - 4 5 - 4 5 For a side approach direction for the actuator and read head, a minimum dis- tance of s = 6 mm must be maintained so that the operating distance of the side lobes is not entered.
  • Page 25: Technical Data Of Actuator Ces-A-Brn

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 6.4. Technical data of actuator CES-A-BRN Parameter Value Unit min. typ. max. Housing material Dimensions 80 x 40 x 15 Ground 0.06 Ambient temperature - 25 + 70 °C Degree of protection acc. to EN IEC 60529 IP67 Installation position Active face opposite read head...
  • Page 26: Typical Operating Distance

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 6.4.3. Typical operating distance (only in conjunction with actuator CES-A-BRN on surface mounting on steel) - 1 0 - 1 5 - 2 0 - 2 5 - 3 0 - 3 5 - 4 0 - 4 5 - 5 0 - 5 5...
  • Page 27: Ordering Information And Accessories

    Ì In case of damage, the entire device must be replaced. Ì Only accessories or spare parts that can be ordered from EUCHNER may be replaced. Regular inspection of the following is necessary to ensure trouble-free long-term operation: Ì Check the switching function (see section 3.1. Functional check on page 17) Ì...
  • Page 28: Declaration Of Conformity

    Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 10. Declaration of conformity (translation of the original operating instructions) 112663-05-03/15...
  • Page 29 Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 112663-05-03/15 (translation of the original operating instructions)
  • Page 30 Operating Instructions Non-Contact Safety Switch CES-AP-C01-… (translation of the original operating instructions) 112663-05-03/15...
  • Page 31 Operating Instructions Non-Contact Safety Switch CES-AP-C01-… 112663-05-03/15 (translation of the original operating instructions)
  • Page 32 Edition: 112663-05-03/15 Title: Operating Instructions Non-Contact Safety Switch CES-AP-C01-… (translation of the original operating instructions) Copyright: © EUCHNER GmbH + Co. KG, 03/2015 Subject to technical modifications; no responsibility is accept- ed for the accuracy of this information.
