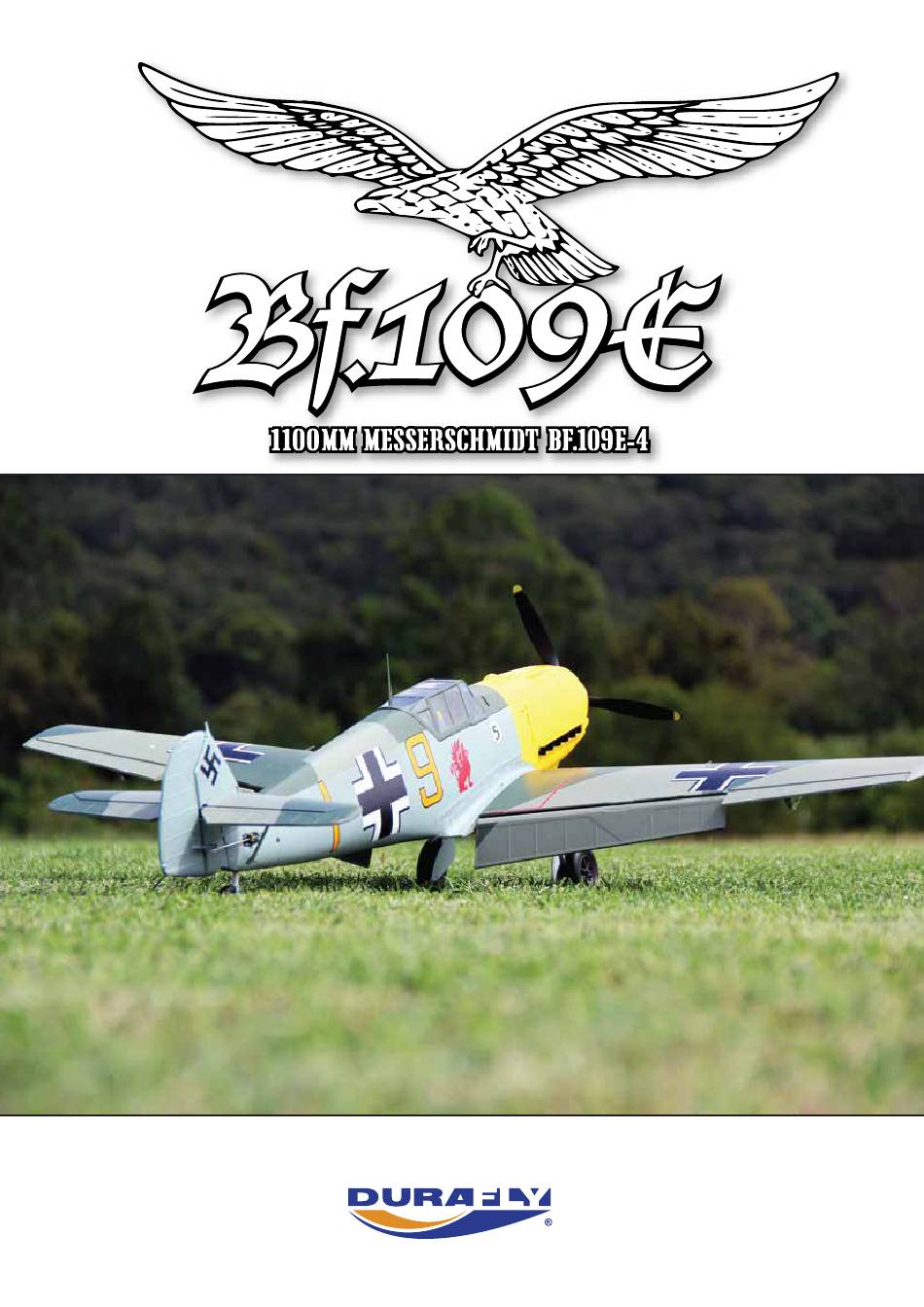

- Page 1 INSTRUCTION MANUAL INSTRUCTION MANUAL...
-
Page 2: Parts Listings

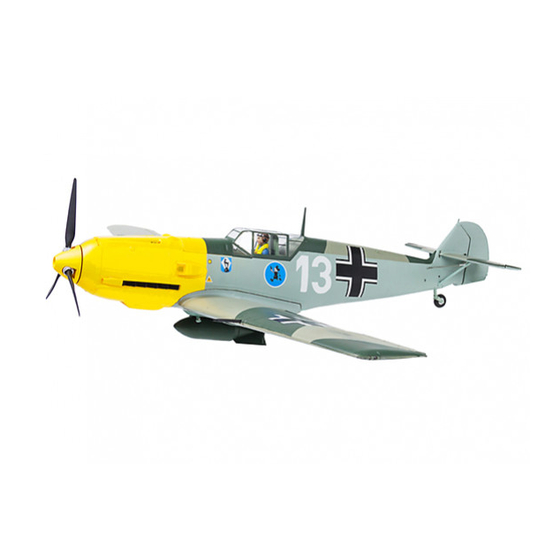

Aviation. Durafly’s 1100mm Messerschmitt Bf-109e is a fantastic scale rendition of the famous Luftwaffe fighter. The Durafly team has worked extremely hard to bring you the Bf-109e, With its graceful lines and undoubtedly the best looking RC Bf-109e ever made. - Page 3 1. Out of the box your BF.109e comes with reinforced foam hinge. However before assembly can begin, each hinge line must be fiexed back and forth 5-6 times to reuce tension and load on the servo. Do this for all control surface before continuing. 2.
- Page 4 Messerschmitt Bf-109e Durafly 1100mm 5. Offer the wing up to the fuselage and ensure the servo wires pass through into the battery aera of the fuselage(A). Check again that on servo wores are caught between the wing and the fuslage before securing in place using the bolts 4.0X10mm(for L/D of the wing) ,...
- Page 5 7. With a small amount of the contact glue, Sucure the under wing radiator opens’ struts in palce before securing the radiators and the pilot tube into place along with wing cannons, exhaust stacks and the fuselage aerial. Note: Install the one with mark “L” to the port side of he fuselage.
- Page 6 Messerschmitt Bf-109e Durafly 1100mm 8. Glue the sand filter of the desert version into place. 9. The bomb been secured to the rack ( the bomb securer’s tougue perpendicular to the axle of the bomb) Insert the servo lead into any of the two switch channel, then you can release the bomb (The tougue of the bomb will align with the axle of the bomb after the releasing).
- Page 7 Flap...
- Page 8 Messerschmitt Bf-109e Durafly 1100mm Bf-109e Bf-109e...
- Page 9 Flaps on the Durafly Bf-109e should The Centre of Gravity (COG) for the Bf-109e is Approximately 60-65mm from the leading edge of the wing. We recommend a Turingy Graphene 2200mah 4S Lipo 65c or a larger 3S battery. The Bf-109e will fly perfectly well on both 3S and 4S Lipo batteries.
- Page 10 The decals are a mix of two different types, vinyl and sticker, each needing to be applied in a certain way. Please follow carefully the guidelines below to achieve the best possible finish on your Durafly Bf-109e. Note: * All wing and fuselage roundels are made of standard sticker type decals and cut exactly to the right size and simply need lifting from the backing paper and applying in place.
- Page 11 3. Vinyl decal use a clear front cover/film that is used to remove the decal from the paper backing. 4. Before lifting from the paper, rub the surface of the clear protective film to ensure all of the decal sticks to this fronting. This will ensure the marking lifts fully off the backing paper (vinyl). 5.
- Page 12 Messerschmitt Bf-109e Durafly 1100mm With assembly and set-up now complete, your Durafly BF-109e should now be ready for flight. However we recommend you read and follow the advice given in the following pages of this manual before flying your Durafly Bf-109e.
- Page 13 Durafly Bf-109e Spare Parts common to both models AeroStar 50A AeroStar 3736 Durafly Bf-109e Durafly Bf-109e Electronic Speed 700kv Brushless Propeller Shaft Propeller Controller Outrunner Motor 9164000037-0 9499000093-0 9499000205-0 9499000209-0 Durafly Bf-109e Main Durafly Bf-109e Durafly Bf-109e Durafly Bf-109e Tail...
- Page 14 Messerschmitt Bf-109e Durafly 1100mm Spare Parts for the Bff-109e “Battle of Britain” Scheme Durafly Bf-109e Durafly Bf-109e Battle Durafly Bf-109e Battle Durafly Bf-109e of Britain Scheme – Battle of Britain of Britain Scheme – Battle of Britain Canopy Hatch Scheme – Wing...
- Page 15 Notes:...
