- Page 1 INSTRUCTION MANUAL...

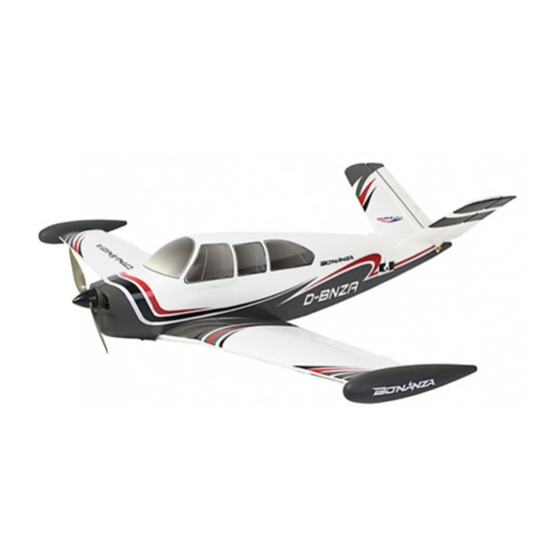

- Page 2 RC plane. The build for the Durafly Bonanza is fast with a minimal build count meaning you’re in the air fast. A basic glued joint for the tail, main wing and wingtip tanks.
-
Page 3: Specifications
CONTENTS SPECIFICATIONS: 1. Fuselage - Wingspan - 950mm (37.5") 2. Left Wing - Length - 670mm (25.6") 3. Right Wing - Flying weight - 540g 4. Left tailplane - Motor - 28mm 1300kv Brushless Outrunner motor 5. Right tialplane - ESC - 20A Electronic Speed Controller 6. - Page 4 Now let’s get to the build. Step 1. - Glue the tail surfaces to the fuselage. Please ensure the tail surfaces fit flush and aligned to the fuselage, please make sure the fit is even and at the same level. Please dry fit these parts and make sure you are satisfied with the fit and alignment prior to gluing these surfaces.
- Page 5 Step 2. – Main wing Please use a servo tester or your Transmitter and bound receiver to check the servo alignment for your aileron servos. If by chance they are not adjusted correctly please adjust to suite. Using the supplied metal wing spar, please make sure you dry fit the spar with the left and right main wing sections to make sure they fit flush and you have the correct dihedral on the wing.
- Page 6 Attach the left and right wingtip with foam safe CA glue or Foam safe contact adhesive. Step 4. - Attach Ball link Controls The Durafly bonanza has a unique V-tail, with all V-tail the right and left servos control the rudder and elevator separately, Using a programmable transmitter with a V-tail option does all the inputs for you.
-
Page 7: Step 5. - Model Set Up
Step 5. – Model set up Your Durafly Bonanza is built and now you are ready to set up the model for it’s maiden flight. Using the correct battery we recommend a 1300 mah 3S Lipo battery (although you can use a battery from sizes ranging from 1100mah~2200mah.) - Page 8 Of course this is our recommendation you can adjust this CoG position to suite your flying style. Control throws – We suggest you set up the Durafly Bonanza with 10mm of distance from centre to maximum travel on all control surfaces. We also suggest you add 30% expo to the elevator control and 25% Expo to the Aileron and rudder controls.
-
Page 9: Flying Tips
If your plane is not flying well land and adjust your bonanza where it needs adjusting. Once you have your Bonanza flying well it will perform like a gem. Able to fly all your moves from rolls loops to slow flybys. The Bonanza is a jackpot.
