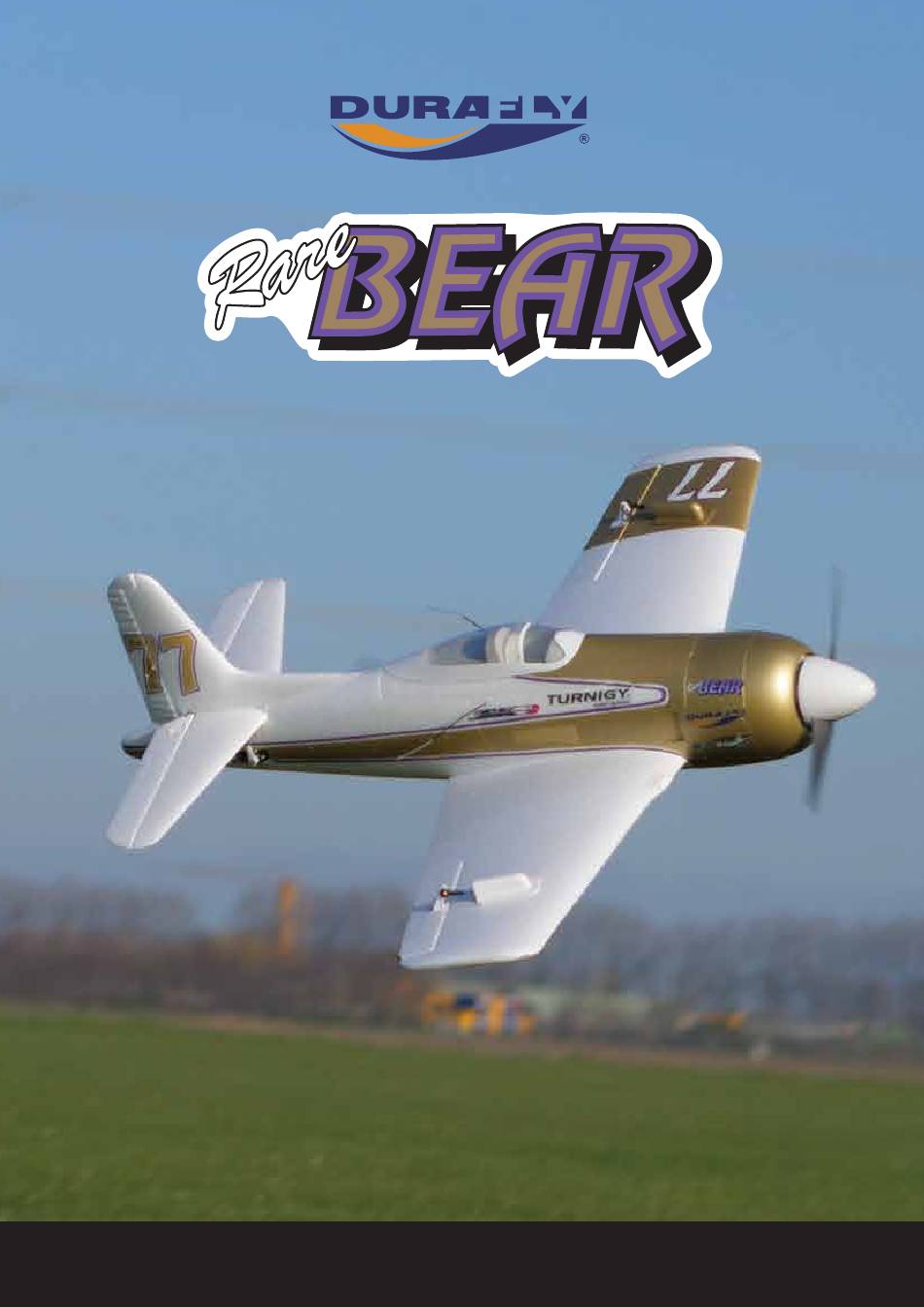

- Page 1 DURAFLY RARE BEAR 680MM RENO RACER ASSEMBLY MANUAL Please read this manual carefully before operating this plane.
-
Page 2: Safety Precautions
WARNING Please read this instruction manual fully so as to become completely familiar with the features of this product before operating. Failure to operate this product correctly could result in damage to the product, personal property, and cause serious injury.This is a sophisticated hobby product and is NOT a toy. -
Page 3: Table Of Contents
CONTENTS Introduction Specifications Contents Required to complete Assembly 3 - 4 Setting up your model 4 - 6 Control throws C of G location Do's and Don'ts Flying on 6S Pre - flight checks Flying the Rare Bear Rare Bear tips Spare parts Troubleshooting Contact... -
Page 4: Introduction
Motor: 3536-1700kv brushless outrunner (Pre-installed) or higher LiPo (not supplied) • Optional: 6S 1000~1200mAh 65C or higher LiPo battery pack Durafly RB 6x5.5 propeller (We only recommend this optional prop for a 6S set up, please do not use other makes or types). -
Page 5: Contents
8. Laser Cut Desktop Profile Model of the Rare Bear REQUIRED TO COMPLETE MODEL In its Plug-N-Fly format the MFX will require some additional components to be ready for flight. Durafly recommends the products below for optimum performance and great value. All are available at hobbyking.com... -
Page 6: Assembly
ASSEMBLY (PNF) 1. Affix some double sided tape to the underside of 2. Attach to the wing as shown, repeat for the the one of the covers for the aileron pushrods.. other side. 3. Position the horizontal stabilizer onto the mounting 4. -
Page 7: Setting Up Your Model
Secure the wing using the supplied Locate the main wing onto the fuselage wing screw. seat. Please perform a final check on all screws and components ensuring they are secure and firmly in place. SETTING THE CONTROL THROWS OF YOUR RARE BEAR: Before getting started on the set up, if you haven't already done so then bind your receiver to your transmitter. - Page 8 Now check that all the control surfaces are neutral (if not adjust the pushrods as necessary), and that they move in the correct direction with the correct stick input (see below).
-
Page 9: Control Throws
55mm mark, then as you get used to the flying characteristics you can move it back if you wish. With assembly and set-up now complete your Durafly Rare Bear should be ready for flight. However we recommend you read and follow the advice... -
Page 10: Do's And Don'ts
The dummy engine must be removed to allow more cooling to the motor and ESC when flying on a 6S pack, please see below how to remove the dummy engine. • We only recommend the use of the Durafly RB 6.5x5 optional propeller when flying on a 6S LiPo battery pack. •... -
Page 11: Pre - Flight Checks
PRE - FLIGHT CHECKS: 1. Always range check your model before any flight (especially when flying a new model for the first time). Follow your radio manufacturers guidelines for performing this check. 2. Check that all screws/bolts and mounting points are firmly secured, including control horns and clevises. -
Page 12: Flying The Rare Bear
FLYING THE RARE BEAR RENO RACER: Durafly's Rare Bear Reno Racers deliver stunning scale looks and performance in a neat, compact package, and go far beyond all expectations for an EPO model of this size and class, especially when in the air. -
Page 13: Rare Bear Tips
Thank you for purchasing the Durafly Rare Bear Reno Racer. We hope you'll have many adrenaline filled days flying and we look forward to bringing you more Durafly models in the future. -
Page 14: Spare Parts
SPARE PARTS LISTING: White) White) White) White) SKU: 1021790020 SKU: 1021790021 SKU: 1021790022 SKU: 1021790023 (Green/White) SKU: 1021790024 SKU: 1021790025 (Gold/White) SKU: 1021790027 SKU: 1021790026 Spinner Prop Adapter SKU: 1021790028 SKU: 1021790030 SKU: 1021790031 SKU: 1021790029 8x5 Prop (for 4S) Aerostar 60A LITE ESC Accessory Pack Decal Set (Gold/White) -
Page 15: Troubleshooting
Trouble Shooting: Problem Cause Solution 1. Charge the batter . 1. Batter is not fully charged. 2. Install a charged battery. 2. Transmitter battery low. 3. Check connection 3. Motor not connected. between the ESC and motor. 4. Replace motor. Motor does not 4. -
Page 16: Contact
Contact: Notes:...
