Summary of Contents for Durafly EFXTRA

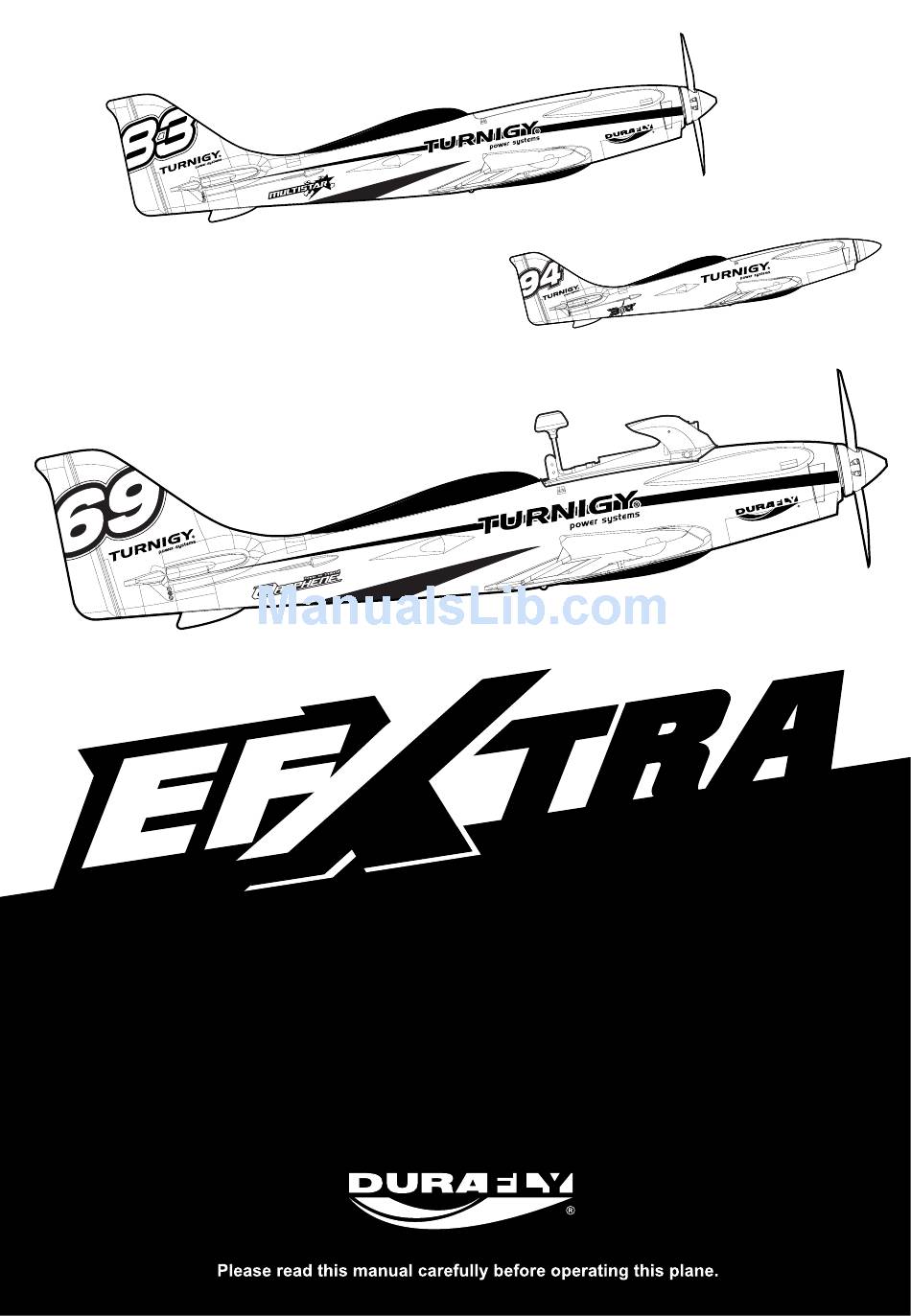

  • Page 1 (PNF) Instruction Manual...
  • Page 3: Table Of Contents

    CONTENTS Introduction Specifications Content Required to complete model Required for Optional FPV Canopy Assembly Setting up the model EFXTRA Optional parts 8-10 Model flying precautions 10-11 Pre-flight checks 11-12 Flying the EFXTRA 12-13 EFXTRA tips Spare parts listing Trouble shooting...
  • Page 4: Introduction

    With a minimal part count and assembly, the EFXTRA simply clips and screws together in less time then it takes to charge a battery. In the air the EFXTRA will reach 110mph+ (4S) and feel exceptionally stable and controlled whilst doing so.
  • Page 5: Content

    5. Aluminuim Spinner 10. FPV canopy REQUIRED TO COMPLETE MODEL: In the ‘PnF’ format the EFXTRA will still require some additional electronic components to be ready for flight. Durafly recommends the products below for optimum performance and great www.hobbyking.com value. Available at https://hobbyking.com/en_us/zippy-compact-2700mah-3s-40c-lipo-pack.html...
  • Page 6: Assembly

    ASSEMBLY : 1. Locate the two horizontal tail halves and slide the left hand tail firmly into the plastic housing at the rear of the fuselage as shown (A). Install the other half of the tail ensuring both pieces lock into one another by pushing both firmly together from the tips and center to ensure good firm fit (B).
  • Page 7 5. With the aileron now connected and centered, peel the paper backing off the bottom of the aileron covers and affix each cover squarely in place as shown. 6. Connect the supplied Y-lead to the aileron servos then mount the wing to the fuselage (A).
  • Page 8 Note: Double check your prop is balanced before installing. An unbalanced prop can cause excess vibration and a loss in efficiency. 3x10mm Basic assembly of your EFXTRA is now complete. Please perform a final check on all screws, bolts and compoents ensuring all are secure and firmly in place.
  • Page 9: Setting Up The Model

    SETTING UP YOUR MODEL: 1. Before getting started, bind your receiver to your transmitter. Please refers to your Transmitter Manual for the operation procedures. Make sure all the control sticks are in neutral position(Rudder, elevator andailerons) and the throttle in the OFF position. Turn on the transmitter make sure all the trims and the sub trims (For computerized TX) are in neutral position, and then power on the ESC for the control system testing.
  • Page 10 With either 3 or 4S installed and pushed as far forwards as possible, your EFXTRA should balance out at this point. To adjust the CG weight can be added or taken away from the nose or tail respectively. Be sure to perform the balance check with the model up side down.
  • Page 11: Efxtra Optional Parts

    Your EFXTRA comes with optional extra’s that really enhance the FUN factor of the EFXTRA. An FPV canopy for mounting your own FPV epquipment in and ripping up the race track and a slope nose cone to convert your powered EFXTRA into a silent slope speed machine. Both are detailed below:...
  • Page 12 FPV Canopy: High speed FPV flying opens up a whole new level of enjoyment with the EFXTRA, add the recommended FPV equipement to the provided FPV canopy and you have yourself a rock solid and 100mph plus FPV racer. Follow the below assembly stages and you’ll be expeiencing high speed FPV in no time.
  • Page 13: Model Flying Precautions

    3. With all FPV components installed and secure on the FPV pod insert on fuselage in place of the battery hatch and ensure the canopy fits firmly and aligns as show below. To power your VTX, it is reccomended that you make up a power lead that can run from the balance tab of your lipo to the power port of the VTX.
  • Page 14: Pre-Flight Checks

    PRE-FLIGHT CHECKS:...
  • Page 15: Flying The Efxtra

    Very soon after launching you will see just how rock solid the EFXTRA is in flight, but keep in mind the EFXTRA gets small quickly at full throttle!
  • Page 16 A true testament to the EFXTRA’s design however is its slow flying ability and how well it handles even without power. This is in no way more apparent than when landing. Though the EFXTRA does have a relatively high glide rate, it benefits from a very low stall speed, so you can comfortably increase elevator input at slow speeds without the risk of a stall.
  • Page 17: Efxtra Tips

    EFXTRA tips: 1. If the stock set still isn’t given you enough speed, the stock motor in the EFXTRA is the perfect motor for 6S to give you 150mph+ HOWEVER, you will need to change the prop to a 5.5x5.5 and change the ESC for one rated at 80amps. With a 1500mah 6S, you can expect flight times of not more than 3mins, but what a 3mins that will be! 2.
  • Page 18: Spare Parts Listing

    Hatch Cover(Red): Hatch Cover(Blue): Hatch Cover(Green): Horizontal Stab: 9499000148-0 9499000167-0 9499000147-0 9499000027-0 Cowl(Red): Cowl(Blue): Cowl(Green): Spinner set: 9499000150-0 9499000168-0 9499000149-0 9499000151-0 EFXTRA prop shaft FPV Canopy kit Motor X mount PVC covers: 9499000153-0 9499000154-0 9499000157-0 9499000032-0 Sticker(Green): Hardware: Sticker(Red): Sticker(Blue): 9499000033-0 9499000156-0...
  • Page 19: Trouble Shooting

    battery. Motor not connected Motor does not turn 1. Prop installed backwards 1. Ask Bruce.
  • Page 20: Contact

    To watch the promo for the EFXTRA, https://www.youtube.com/watch?v=P1IP-AqOB9I https://www.youtube.com/watch?v=P1IP-AqOB9I https://www.youtube.com/watch?v=P1IP-AqOB9I https://www.youtube.com/watch?v=P1IP-AqOB9I https://www.youtube.com/watch?v=P1IP-AqOB9I https://www.youtube.com/watch?v=P1IP-AqOB9I https://www.youtube.com/watch?v=P1IP-AqOB9I https://www.youtube.com/watch?v=RtEXmgF0RrI click here https://www.youtube.com/watch?v=RtEXmgF0RrI To watch the product profile for the EFXTRA, https://www.youtube.com/watch?v=RtEXmgF0RrI https://www.youtube.com/watch?v=RtEXmgF0RrI https://www.youtube.com/watch?v=RtEXmgF0RrI https://www.youtube.com/watch?v=RtEXmgF0RrI https://www.youtube.com/watch?v=RtEXmgF0RrI https://www.youtube.com/watch?v=RtEXmgF0RrI https://www.youtube.com/watch?v=RtEXmgF0RrI https://www.youtube.com/watch?v=RtEXmgF0RrI...
  • Page 22 facebook.com/durafly...
