WP-HDBTKVM3

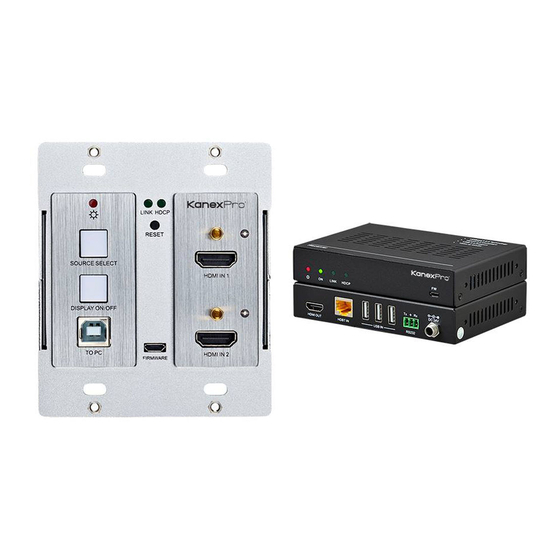

Double Gang. 2x1 HDMI® & USB 2.0 Wall Plate Switcher over HDBaseT™ & PoH
All Rights Reserved
Version: WP-HDBTKVM3_2019V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP-HDBTKVM3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KanexPro WP-HDBTKVM3

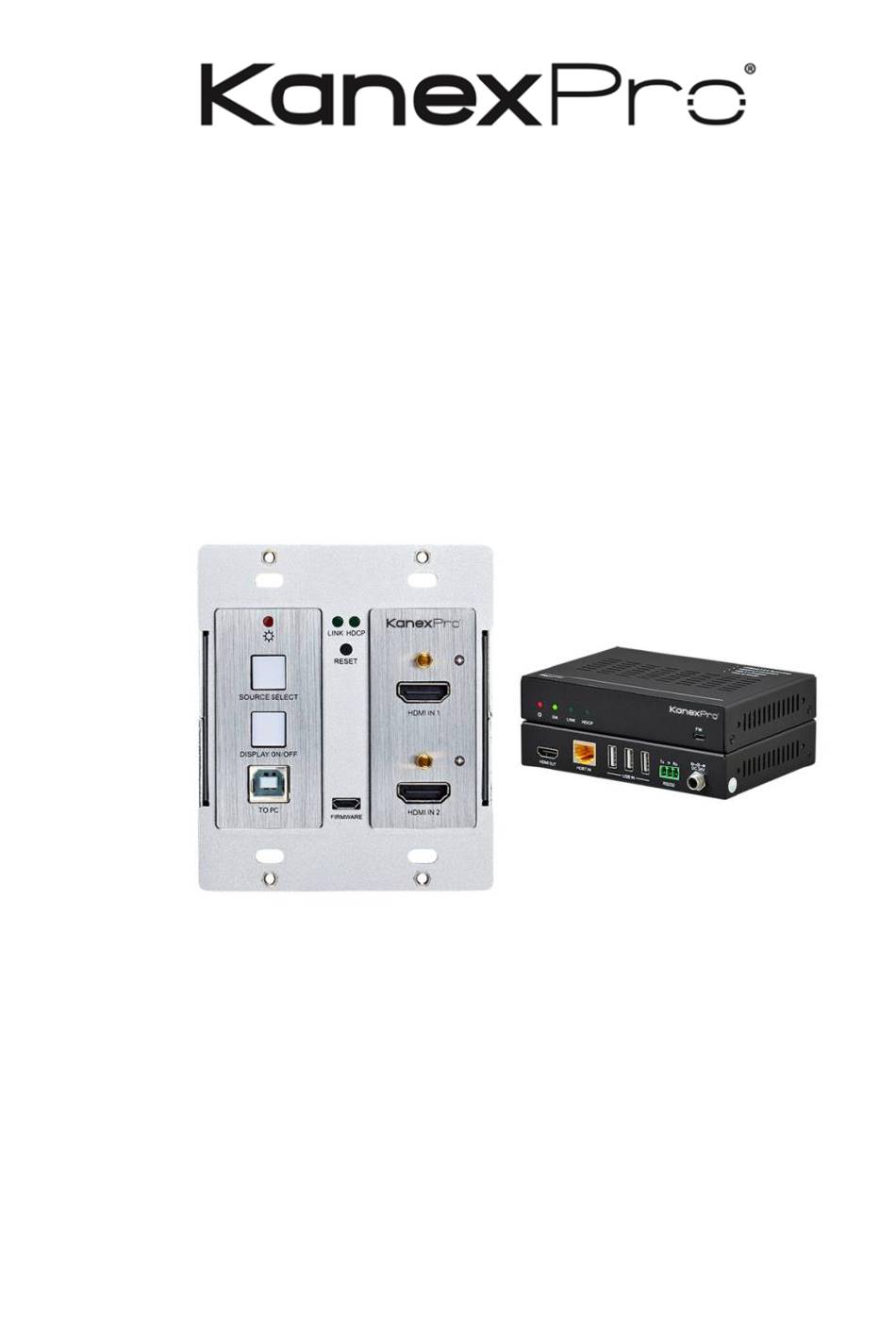

  • Page 1 WP-HDBTKVM3 Double Gang. 2x1 HDMI® & USB 2.0 Wall Plate Switcher over HDBaseT™ & PoH All Rights Reserved Version: WP-HDBTKVM3_2019V1.0...
  • Page 2 4K/60 2x1 Wall Plate Switcher & Extender Set Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
  • Page 3 4K/60 2x1 Wall Plate Switcher & Extender Set SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ⚫...
  • Page 4: Table Of Contents

    4K/60 2x1 Wall Plate Switcher & Extender Set Table of Content 1. Product Introduction ....................1 1.1 Features ......................2 1.2 Package List ....................... 2 2. Specification ........................ 4 2.1 Transmitter ......................4 2.2 Receiver ......................5 3. Panel Description ......................6 3.1 Transmitter Front Panel ..................
  • Page 5: Product Introduction

    4K/60 2x1 Wall Plate Switcher & Extender Set 1. Product Introduction The KanexPro EXT-HDBTKVM3 is a US Decora style double-gang, 2x1 HDMI wall plate transmitter and receiver set designed to switch two HDMI inputs with one USB 2.0 input to a remote display or a projector up to 131ft.(40m) at 4K/60 and 330ft.(100m) at 1080p/60 video and audio over single cat5e/6/7...
  • Page 6: Features

    4K/60 2x1 Wall Plate Switcher & Extender Set Applications: USB for Conferencing in AV & Digital Signage Perfect for conference rooms, boardrooms and digital signage applications where the extender offers two USB 2.0 ports allowing touch-panel screens, cameras, USB Mic and SOFTCODEC systems to be used for video conferencing or KVM functionality.
  • Page 7 ⚫ 1x RS232 Cable (3-pin to DB9) ⚫ 1x Power Adaptor (24V DC 1.25A) ⚫ 1 x User Manual ⚫ Note: Please contact your distributor or KanexPro immediately at support@kanexpro.com if any damage or defect in the components is found.
  • Page 8: Specification

    4K/60 2x1 Wall Plate Switcher & Extender Set 2. Specification 2.1 Transmitter Input Input (2) HDMI Input Connector (2) Type-A female HDMI Output Output (1) HDBT, (1) TO PC, (1) DC OUT Output Connector (1) RJ45, (1) Type-B USB, (1) 2-pin terminal block Control Control Port (1) FIRMWARE, (1) RS232...
  • Page 9: Receiver

    4K/60 2x1 Wall Plate Switcher & Extender Set 2.2 Receiver Input Input (1) HDBT, (3) USB Input Connector (1) RJ45, (3) Type-A USB Output Output (1) HDMI Output Connector (1) Type-A female HDMI Control Control port (1) FIRMWARE, (1) RS232 Control Connector (1) Micro-USB, (1) 3-pin terminal block General...
  • Page 10: Panel Description

    4K/60 2x1 Wall Plate Switcher & Extender Set 3. Panel Description 3.1 Transmitter Front Panel LINK RESET SOURCE SELECT HDMI IN 1 DISPLAY ON/OFF TO PC HDMI IN 2 FIRMWARE ① POWER LED: The LED illuminates red when power is applied. ②...
  • Page 11: Transmitter Rear Panel

    4K/60 2x1 Wall Plate Switcher & Extender Set input source. ⑧ HDMI IN 1: Type-A HDMI port to connect a HDMI source. ⑨ HDMI IN 2 LED: The LED illuminates orange when the HDMI IN 2 port is connected to a source device, and it will turn green once the device is selected as input source.
  • Page 12: Receiver Front Panel

    4K/60 2x1 Wall Plate Switcher & Extender Set ③ RS232: 3-pin terminal block to connect a control device (such as PC) to send RS232 command to control this unit, or to connect a third party device which needs to be controlled by RS232 pass-through.
  • Page 13: Receiver Rear Panel

    4K/60 2x1 Wall Plate Switcher & Extender Set 3.4 Receiver Rear Panel ① HDMI OUT: Type-A HDMI port to connect a display. ② HDBT IN: RJ45 HDBaseT input port to connect to the HDBT OUT port on the transmitter by a CATx cable. ③...
  • Page 14: System Connection

    4K/60 2x1 Wall Plate Switcher & Extender Set 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. ⚫ System should be installed in a clean environment with proper temperature and ⚫ humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ⚫...
  • Page 15: Button Control

    4K/60 2x1 Wall Plate Switcher & Extender Set 5. Button Control 5.1 Signal Switching 1) Press the SOURCE SELECT button to switch to next source device, and then the corresponding input LED will turn green. 2) Press and hold the SOURCE SELECT button at least 3 seconds to enable auto- switching mode, and it abides by the following principles: New input: ⚫...
  • Page 16: Rs232 Control

    4K/60 2x1 Wall Plate Switcher & Extender Set 6. RS232 Control 6.1 RS232 Connection According the RS232 control mode, there are three types of RS232 connection for different application. ① When only control the local transmitter, please connect a control device (e.g. PC) to the RS232 port of the transmitter, the connection diagram shown as below:...
  • Page 17 4K/60 2x1 Wall Plate Switcher & Extender Set ② When control the far-end third party device from local control device (e.g. PC), please connect the PC to the RS232 port of the transmitter, and then please connect the third party device (e.g. projector) to the RS232 port of receiver. The connection diagram shown as below: Transmitter HDBT:...
  • Page 18 4K/60 2x1 Wall Plate Switcher & Extender Set ③ When control the local third party device from far-end control device (e.g. PC), please connect the PC to the RS232 port of the receiver, and then please connect the third party device to the RS232 port of transmitter. The connection diagram shown as below: Transmitter HDBT:...
  • Page 19: Rs232 Control Software

    4K/60 2x1 Wall Plate Switcher & Extender Set 6.2 RS232 Control Software After set all needed input and output devices according to the RS232 connection diagram, please install the RS232 control software into the control PC to send RS232 command. Installation: Copy the control software file to the control PC.
  • Page 20: Rs232 Command

    4K/60 2x1 Wall Plate Switcher & Extender Set Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, then the RS232 commands can be sent in the Command Sending Area. Baud rate: 2400, 4800, 9600, 19200, 38400, 57600 or 115200. Data bit: 8.
  • Page 21: Hdcp Command

    4K/60 2x1 Wall Plate Switcher & Extender Set 6.3.3 HDCP Command Command Function Feedback Example HDCP: ON 50709% Get the HDCP mode HDCP: OFF HDCP1.4 50713% Get the HDCP status HDCP2.2 NO HDCP 6.3.4 Button Control User-defined When the display is incompatible with the extender, the DISPLAY ON/OFF button can be defined to send control characters by following command format.
  • Page 22: Factory Default

    4K/60 2x1 Wall Plate Switcher & Extender Set 6.3.5 Factory Default Command Function Feedback Example 50617% Restore factory default FACTORY RESET 50699% Get firmware version VERSION Vx.x.x...
  • Page 23: Panel Drawing

    4K HDBaseT 2.0 Extender 7. Panel Drawing 7.1 Transmitter 89 mm LINK RESET SOURCE SELECT HDMI IN 1 DISPLAY ON/OFF TO PC HDMI IN 2 FIRMWARE 7.2 Receiver 136 mm...
  • Page 24: Troubleshooting & Maintenance

    Note: If your problem still remains after following the above troubleshooting steps, please contact our support team at support@kanexpro.com Or call your local dealer or distributor for further assistance.
  • Page 25: Customer Service

    4K HDBaseT 2.0 Extender 9. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years. 2) Scope These terms and conditions of Customer Service apply to the customer service provided for the products or any other items sold by authorized distributor only.
