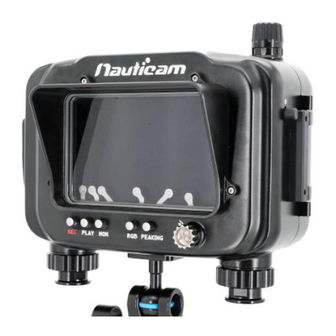

Summary of Contents for Nauticam NA-Ninja V
- Page 2 ORWARD Thank you for your purchase of a NAUTICAM housing. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
-
Page 3: Table Of Contents
ABLE OF ONTENTS Warranty ……………………………………………………………………………………………………………. Precautions ………………………………………………………………………………………………………… Package Contents ………………………………………………………………………………………………. Specifications …………………………………………………………………………………………………….. Identification of Parts ………………………………………………………………………………………… Opening and Locking the Housing ……………………………………………………………………… Preparation of the Housing ………………………………………………………………………………… Connecting HDMI 2.0 Cable ……………………………………………………………………………… Installing the Monitor ………………………………………………………………………………………… Care and Maintenance ………………………………………………………………………………………. Compatible housings………………………………………………………………………………….………... -
Page 4: Warranty
NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products. -
Page 5: Precautions
O-ring(s). • Do not use lubricants from other brands with the silicone rubber O-ring on this housing, only use the lubricant provided by NAUTICAM. • Discontinue use immediately should you notice any leakage. - Page 6 • Do not open the product in a wet or sandy environment. Protect the interior from moisture and debris in order to prevent malfunction or leakage. • Do not store the product in an environment of high humidity. • Do not leave the housing and the monitor in direct sunlight for prolonged periods. •...
-
Page 7: Package Contents
Package ACKAGE CONTENTS • NA-Ninja V Housing • Monitor hood • 25625 M16 Vacuum Valve (pre-installed) • 90137 Spare silicone rubber main O-ring • O-ring remover • CR2032 battery • Lubricant • Manual Instruction Card... -
Page 8: Specifications
PECIFICATIONS Housing body: Aluminum alloy Construction Surface treatment: Hard anodized Display window: Abrasion resistant polycarbonate Width: 224mm Dimensions Height: 169mm Depth: 113mm Weight in air Approx. 1.62kg -0.36kg Weight in water (incl. Ninja V with AtomX SSD mini, Sony NP-F970 battery) Depth rating 100 m Compatible... -
Page 9: Identification Of Parts
DENTIFICATION OF ARTS Attaching point for mounting ball M16 vacuum valve Moisture alarm window Monitor hood Housing lock safety button Housing lock... - Page 10 Power button Mon button RGB button Multi selector lever REC button Peaking button Play button...
- Page 11 M28 accessory port Sacrificial zinc anode Ball mount...
-
Page 12: Opening And Locking The Housing
PENING AND OCKING THE OUSING To open the housing: 2. Turn the housing lock 270°, 1. Press the housing lock safety counter clockwise, until the lock button. reaches the “Open” position as shown. - Page 13 To lock the housing: 4. Turn the housing lock 270° 3. Close the housing while the clockwise until the lock reaches housing lock is in the “Open” the “lock” position as shown. position. Confirm that the white indicator line on the safety button is visible.
-
Page 14: Preparation Of The Housing
REPARATION OF THE OUSING 1. After verifying that the main O-ring is in 4. Setting up the moisture alarm: good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the front part of the housing is free from any foreign material;... - Page 15 Battery Installation: Press Press Insert the battery as shown above and To remove the battery, press the metal then press down the battery. plate as indicated and the battery will pop out. *Use only recommended battery with this product...
- Page 16 2. Switch the alarm on. The LED light 3. Test the alarm by connecting the two wires near the bottom of the housing will flash blue once and turn blue for five seconds indicating the battery is with a damp cotton bud; the alarm normal.
- Page 17 Vacuum valve: Vacuum valve is pre-install to the housing for conducting a vacuum seal test. Please refer to the manual of the vacuum valve for details of the operation. LED status identification: On start up LED indicator Status Flash “Blue” light once Indicates a 2nd generation PCB Battery is normal, goes into flashing "Blue"...
- Page 18 After start up LED indicator Status Standby mode. The moisture alarm is active, Flashing "Blue" light and the system is ready for vacuum indication whenever a vacuum is detected. Flashing "Red" light Moisture is detected. with beeping sound Some vacuum is detected, target vacuum level Flashing "Yellow"...
-
Page 19: Connecting Hdmi 2.0 Cable
HDMI 2.0 ONNECTING CABLE To install the monitor into the housing: 1. Unscrew the cap off M28 accessory port 2. Align and plug the HDMI 2.0 cable in the M28 port opening. Gently push the cable into the M28 port opening until it cannot go in any further. - Page 20 3. Then, tighten the HDMI 2.0 cable by Repeat the above steps for another M28 accessory port if turning the threaded working ring. HDMI out cable is required...
-
Page 21: Installing The Monitor
NSTALLING ONITOR Before mounting the camera, connect Secure the monitor by turning the two HDMI 2.0 cables (IN and OUT) to the locking levers towards the monitor as camera’s HDMI connectors accordingly. shown. Then place the monitor inside the housing... -
Page 22: Care And Maintenance
O-ring with the provided lubricant before reinstalling it in the groove. A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. • Replace the main O-ring annually. It is recommended that you ship the housing to our... -
Page 23: Compatible Housings
NA-XT3 Housing for Fujifilm X-T3 Camera 17718 NA-S1R Housing for Panasonic Lumix S1/S1R Camera NA-GH5SV Housing for Panasonic Lumix GH5 Camera (to use with NA- 17713V Ninja V) 17223V NA-Z7V Housing for Nikon Z7/Z6 Camera (to use with NA-Ninja V) -
Page 24: Optional Accessories
PTIONAL CCESSORIES P.N. 25077 P.N. 25078 P.N. 25079 M24D1R205-M28A1R170 HDMI M28A1R225-M28A1R170 HDMI M28A2R210-M28A1R170 2.0 Cable (for NA-T3 to use with 2.0 Cable (for NA-BMPCCII/S1R to HDMI 2.0 Cable (for NA-GH5V Ninja V housing) use with Ninja V housing) to use with Ninja V housing...
