30
Handling of Consumables
_________________________________________________________________________________________
Front printhead
release lever
Front
printhead
assembly
_________________________________________________________________________________________
Microplex
3.

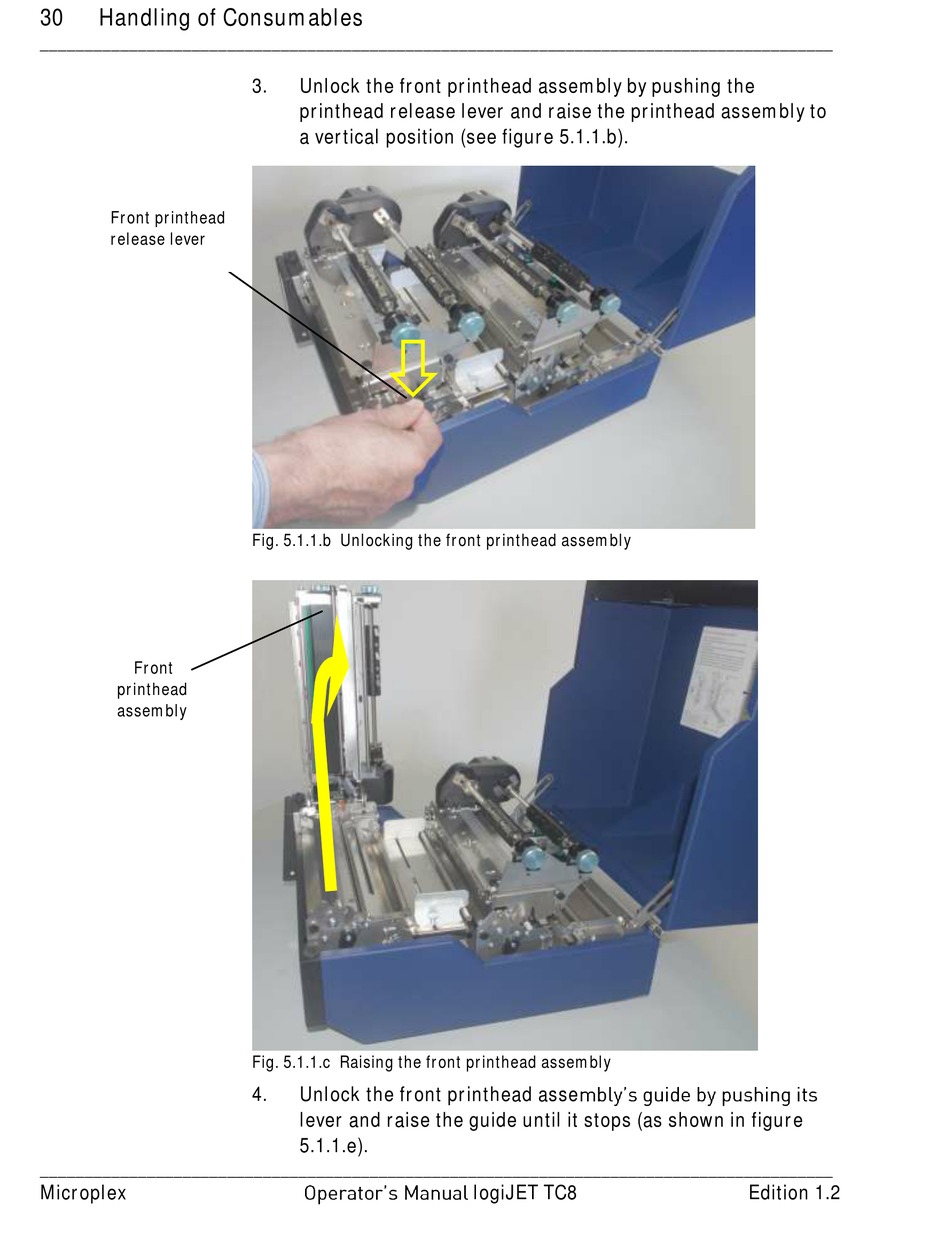

Unlock the front printhead assembly by pushing the
printhead release lever and raise the printhead assembly to
a vertical position (see figure 5.1.1.b).
Fig. 5.1.1.b Unlocking the front printhead assembly
Fig. 5.1.1.c Raising the front printhead assembly
4.
Unlock the front printhead asse
lever and raise the guide until it stops (as shown in figure
5.1.1.e).
logiJET TC8
Edition 1.2
