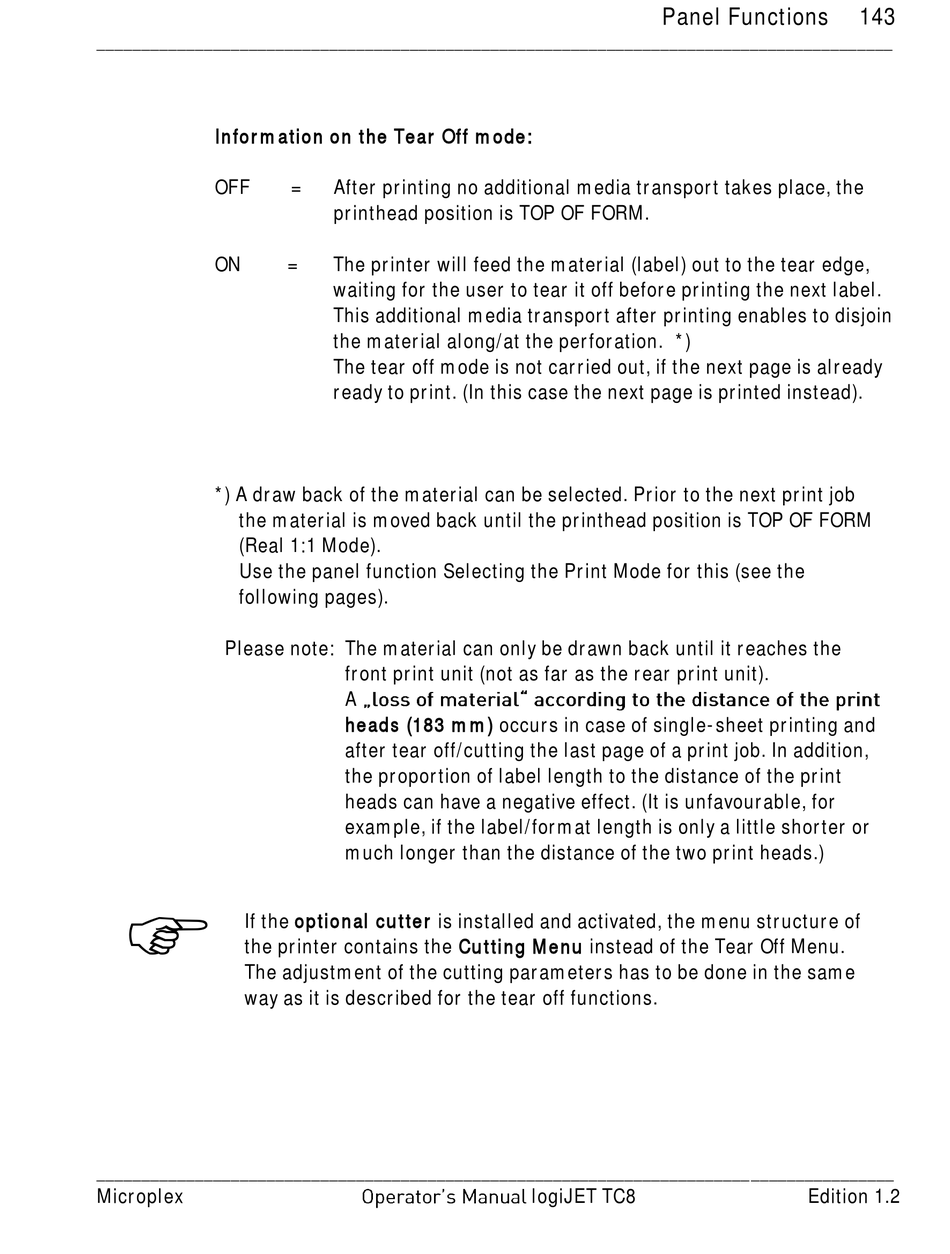

Information on the Tear Off mode:
OFF
ON
*) A draw back of the material can be selected. Prior to the next print job
the material is moved back until the printhead position is TOP OF FORM
(Real 1:1 Mode).
Use the panel function Selecting the Print Mode for this (see the
following pages).
Please note: The material can only be drawn back until it reaches the

If the optional cutter is installed and activated, the menu structure of
the printer contains the Cutting Menu instead of the Tear Off Menu.
The adjustment of the cutting parameters has to be done in the same
way as it is described for the tear off functions.
_________________________________________________________________________________________
Microplex
= After printing no additional media transport takes place, the
printhead position is TOP OF FORM.
= The printer will feed the material (label) out to the tear edge,
waiting for the user to tear it off before printing the next label.
This additional media transport after printing enables to disjoin
the material along/at the perforation. *)
The tear off mode is not carried out, if the next page is already
ready to print. (In this case the next page is printed instead).
front print unit (not as far as the rear print unit).
A
heads (183 mm) occurs in case of single-sheet printing and
after tear off/cutting the last page of a print job. In addition,
the proportion of label length to the distance of the print
heads can have a negative effect. (It is unfavourable, for
example, if the label/format length is only a little shorter or
much longer than the distance of the two print heads.)
