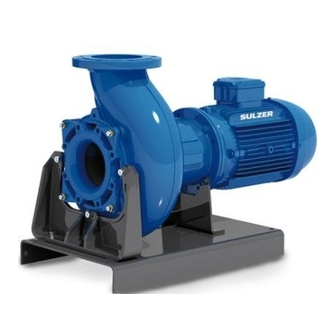

Dry-installed sewage pump

Advertisement

Dry-Installed Sewage Pump Type ABS AFC 50/50-2046
Installation and operating instructions
en
www.sulzer.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABS AFC 0831 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sulzer ABS AFC 0831

  • Page 1 Dry-Installed Sewage Pump Type ABS AFC 50/50-2046 Installation and operating instructions www.sulzer.com...
  • Page 2 Dry-Installed Sewage Pump Type ABS AFC 0831 0841 1032 1041 1541 2046 80/80 0832 0844 1033 1045 1543 50/50 80/80 RV 0835 1031 1035 1049 1546 50/50 RV Sulzer reserves the right to alter specifications due to technical developments...
  • Page 3: Table Of Contents

    Contents General ..............................4 Application areas ............................. 4 1.1.1 Explosion-proof approvals ........................4 1.1.2 Particular comments on the use of explosion-proof pumps in explosive zones........4 Technical data ............................4 1.2.1 Nameplate ............................... 4 Safety ..............................5 Transport ..............................5 Electrical connection ..........................
  • Page 4: General

    In the event that the pump is to be operated in explosive atmospheres, using a variable speed drive, please contact your local Sulzer representative for technical advice regarding the various Approvals and Standards concerning thermal overload protection.
  • Page 5: Safety

    Safety The general and specific health and safety guidelines are described in detail in the ”Safety Instructions for Sulzer Products Type ABS” booklet. If anything is not clear or you have any questions as to safety make certain to contact the manufacturer Sulzer. Transport During transport the pump should not be dropped or thrown. The unit must never be raised by the power cable.
  • Page 6: Temperature Monitoring (Ptc Thermistor)

    Temperature monitoring (PTC thermistor) Thermal sensors protect the motor from overheating. Thermal protection is in accordance with DIN 44082. PTC relays for use in control panels must also be in accordance with this standard. Bearing temperature monitor (optional) PTC thermistor bearing monitor versions of AFC pumps include thermal protection in accordance with DIN 44082.
  • Page 7: Checking Direction Of Rotation

    Checking direction of rotation When three phase units are being commissioned for the first time and also when used on a new site, the direction of rotation must be carefully checked by a qualified person. When checking the direction of rotation, the pump should be secured in such a manner that no danger to personnel is caused by the rotating impeller, or by the resulting air flow. Do not place your hand into the hydraulic system! The direction of rotation should only be altered by a qualified person. When carrying out the direction of rotation check as well as when starting the unit pay attention to the START REACTION.
  • Page 8: Commissioning

    Should nevertheless, a malfunction occur, do not improvise, but ask your Sulzer Customer Service Department for assistance.
  • Page 9: Coolant Filling And Coolant Changing

    A coolant change is only necessary when carrying out repair work or if the inspection lamp lights up. The 70% water and 30% propylene glycol coolant is frost resisting down to -15°C / 5°F. In case of extreme ambient temperatures below -15°C / 5°F (e.g. during transport, storage or if the pump is out of duty) the cooling liquid must be drained. Otherwise the pump may be damaged. Please contact your Sulzer consultant! Venting of the volute We strongly recommend that AFC pumps are vented back into the sump by means of the drilled and tapped hole provided in the volute.
  • Page 12 Sulzer Pump Solutions Ireland Ltd. Clonard Road, Wexford, Ireland Tel. +353 53 91 63 200.. www.sulzer.com...
