- Page 1 Lifting Station Type ABS Sanimax Installation and Operating Instructions www.sulzer.com...
-
Page 2: Table Of Contents
Lifting Station Type ABS Sanimax R 202 MF 154 R 202/C MF 154HW MF 324 This manual is available to download from www.sulzer.com > Products & Services > Pumps and Systems. Contents General ..............................5 Application areas ............................. 5 Nameplate ............................... 6 Summary of the legal regulations covering the use of lifting stations for the pumping of faecal-free effluent.............................. -
Page 3: General
This may cause damage to the pump or the pumping system. In such case Sulzer will not accept any guarantee or warranty claim. -
Page 4: Nameplate
The general and specific health and safety guidelines are described in detail in the “Safety Instructions for Sulzer Products Type ABS” booklet. If anything is not clear or you have any questions as to safety make certain to contact the manufacturer Sulzer. -
Page 5: Transport
Transport ATTENTION! The lifting unit should not be thrown or dropped during transport. The Sanimax unit should not be lifted by the cable! All relevant safety regulations as well as good general technical practice must be complied with. Description • Five optional connections for inflow line or cable already prepared for installation, as well as two discharge connections for PVC pipe. -
Page 6: Installation
Installation NOTE: EN, DIN, and VDE regulations should be observed Cable inlet - Remove cable ties and select tank opening. Internal External - Remove external stopper (5) from the tank opening while leaving the tank seal (2) in place. - Feed cable (3), with cable stopper (1) and cable seal (4), to the outside of the tank. -
Page 7: Installation Example Sanimax R202 And R202/C

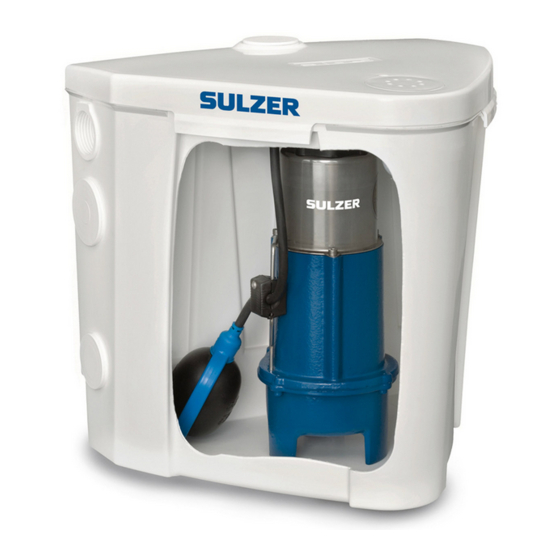

5.2.1 Installation example Sanimax R202 and R202/C Synthetic tank Wastewater pump Robusta 202 with TS level control system Bend Cover with integral odour lock Variable inlet possibiIities. Pipes Ø 40/50 mm Discharge line connection with seal and non-return valve Earthed socket Discharge line 40 mm Sealed cable entry Hose connection for washing machine... -
Page 8: Washing Machine Connection
Washing machine connection The washing machine nozzle should be installed together with seal from the inside and pushed into the washing machine hose. ATTENTION! Clamp the washing machine hose with a hose clamp. Figure 6: Washing machine connection Hand wash basin connection For hand wash basin connection, remove the plug in the cover and push the S-bend tube downward into the unit. -
Page 9: Maintenance
In order to ensure a long running life, regular checks and care are recommended. The Sulzer Service Organisation will be glad to advise you on any special applications you have, and is always ready to assist you with your pumping problems. - Page 12 Sulzer Pump Solutions Ireland Ltd. Clonard Road, Wexford, Ireland Tel. +353 53 91 63 200 Fax +353 53 91 42335. www.sulzer.com...
