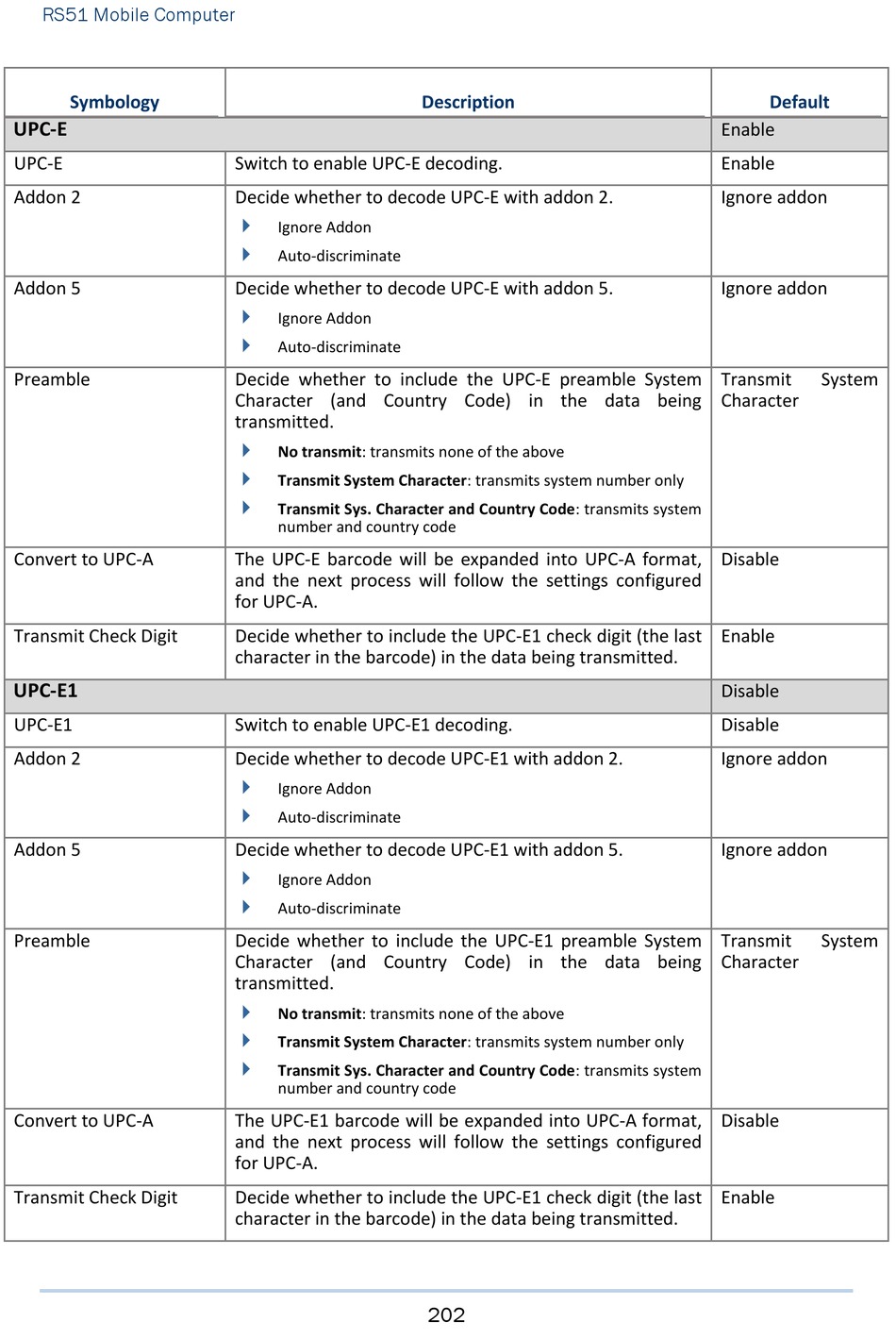

CipherLab RS51 Reference Manual page 202

RS51 Mobile Computer
Symbology
UPC-E
UPC-E
Addon 2
Addon 5
Preamble
Convert to UPC-A
Transmit Check Digit
UPC-E1
UPC-E1
Addon 2
Addon 5
Preamble
Convert to UPC-A
Transmit Check Digit
Switch to enable UPC-E decoding.
Decide whether to decode UPC-E with addon 2.

Ignore Addon

Auto-discriminate
Decide whether to decode UPC-E with addon 5.

Ignore Addon

Auto-discriminate
Decide whether to include the UPC-E preamble System
Character (and Country Code) in the data being
transmitted.

No transmit: transmits none of the above

Transmit System Character: transmits system number only

Transmit Sys. Character and Country Code: transmits system
number and country code
The UPC-E barcode will be expanded into UPC-A format,
and the next process will follow the settings configured
for UPC-A.
Decide whether to include the UPC-E1 check digit (the last
character in the barcode) in the data being transmitted.
Switch to enable UPC-E1 decoding.
Decide whether to decode UPC-E1 with addon 2.

Ignore Addon

Auto-discriminate
Decide whether to decode UPC-E1 with addon 5.

Ignore Addon

Auto-discriminate
Decide whether to include the UPC-E1 preamble System
Character (and Country Code) in the data being
transmitted.

No transmit: transmits none of the above

Transmit System Character: transmits system number only

Transmit Sys. Character and Country Code: transmits system
number and country code
The UPC-E1 barcode will be expanded into UPC-A format,
and the next process will follow the settings configured
for UPC-A.
Decide whether to include the UPC-E1 check digit (the last
character in the barcode) in the data being transmitted.
Description
202
Default
Enable
Enable
Ignore addon
Ignore addon
Transmit System
Character
Disable
Enable
Disable
Disable
Ignore addon
Ignore addon
Transmit System
Character
Disable
Enable
