Summary of Contents for CipherLab RS51

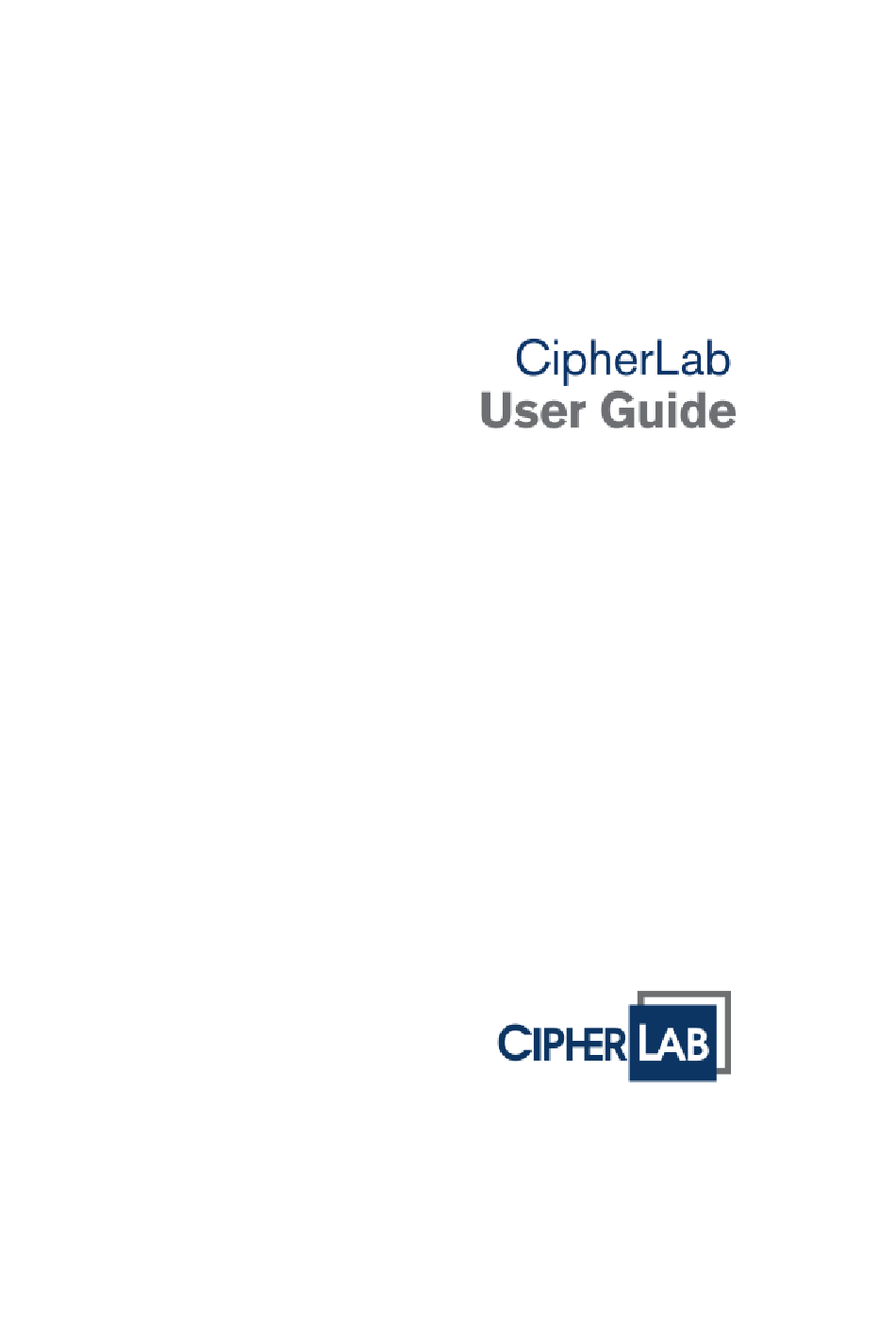

- Page 1 CipherLab OS Image Download Tool RS51 RK95 Version 1.00...
- Page 2 The editorial use of these names is for identification as well as to the benefit of the owners, with no intention of infringement. CIPHERLAB logo is a registered trademark of CIPHERLAB CO., LTD. All other brands, products and services, and trademark names are the property of their registered owners.
-
Page 3: Release Notes
RELEASE NOTES Version Date Notes 1.00 Feb. 18 , 2020 Initial release... -
Page 4: Table Of Contents
OS IMAGE UPGRADE ........................13 CipherLab Download Tool ..................14 Upgrade the OS Image ..................17 2.2.1 How to Enter EDL Mode ..................17 2.2.2 Upgrade RS51 OS Image in EDL Mode ..............20 2.2.3 Upgrade RK95 OS Image in EDL Mode ..............25... -
Page 5: Prerequisite
PREREQUISITE This chapter guides you all the things need to be done before upgrading the OS image of your RK95 or RS51 mobile computer, and the steps of installing ADB Driver on your PC. IN THIS CHAPTER 1.1 Prerequisite for Upgrading OS Image ......6... -
Page 6: Prerequisite For Upgrading Os Image
Please use the supplied Snap-on Charging and Comm. Cable Charging & Comm. to connect the PC with your device. Cradle RS51 Snap-on Charging and Comm. Cable RS51 Charging & Comm. Cradle RK95 Snap-on Charging and Comm. Cable RK95 Charging & Comm. Cradle... - Page 7 Prerequisite ADB Driver: Please download it from https://developer.android.com/studio/run/win-usb CipherLab OS Image Download Tool & RS51/RK95 OS Image File Fetch from CipherLab Download Tool the latest RS51/RK95 OS image GoBetween. (Please download the GoBetween desktop or mobile device application, or launch the GoBetween Lite web application from the following site:...
-
Page 8: Installing Adb Driver
1) Power on your device, and connect it with your PC by the supplied Snap-on Charging and Comm. Cable or Charging & Comm. Cradle. 2) Enable debugging mode on your RS51/RRK95 mobile computer. The exact location of “build number” may differ depending on your device model. The following takes RS51... - Page 9 Prerequisite Step 4: Return to Settings and tap on “ Developer options”, switch both Developer options and USB debugging to “On” , and tap on “OK” on the confirmation window. 3) Go to “ ” → “ ” in your PC to check whether Control Panel Device Manager ADB Driver...
-
Page 10: Install Adb Driver
CipherLab OS Image Download Tool User Guide 1.2.2 INSTALL ADB DRIVER 1) Acquire the from Google USB Drivers https://developer.android.com/studio/run/win-usb 2) Go to “ ” → “ ”, and find your connected device (which is Control Panel Device Manager shown up as an unknown Android device). Click on it to open the settings menu and select “... - Page 11 Prerequisite Step 3: Step 4: Directly click on “Next”. Click on “Have Disk”. Step 5: Step 6: Click “Browse” to select the folder you unziped from Select the “android_winusb.inf” file to open. the “latest_usb_driver_windows” you downloaded . Step 7: Step 8: Click on “OK”...
- Page 12 CipherLab OS Image Download Tool User Guide Step 9: Step 10: Click on “Install” on the “Windows Security” ADB Interface installation is complete. confirmation window. 4) Go to “ ” → “ ”, and you will find the unknow Android device...
-
Page 13: Os Image Upgrade
OS Image Upgrade OS IMAGE UPGRADE This chapter will walk you through the steps of upgrading the OS image through CipherLab Download Tool, and all the prerequisites before OS image upgrade. IN THIS CHAPTER 2.1 CipherLab Download Tool ........... 14... -
Page 14: Cipherlab Download Tool
CipherLab OS Image Download Tool User Guide 2.1 CIPHERLAB DOWNLOAD TOOL Acquire from and uncompress the zip file. In the CipherLab Download Tool GoBetween folder you uncompressed, please find these 2 files: MultiDownloadConfig.ini The Initialization file which stores the settings of upgrading your mobile computer in mode. - Page 15 OS Image Upgrade MULTIDOWNLOADCONFIG.INI FILE SETTINGS When updating the OS image, the device must be in EDL (Emergency Download) mode. The file “ ” is for configuring the status your device should be in for MultiDownloadConfig.ini upgrading the OS image. To check/change the configuration: 1) Click “...
- Page 16 CipherLab OS Image Download Tool User Guide DOWNLOADTOOL.EXE “ ” provides the functions as below: DownloadTool.exe Item Description RawProgram Path Showing the path to access the OS image file in the PC. LoadXML To browse and locate the OS image file.
-
Page 17: Upgrade The Os Image
2.2.1 HOW TO ENTER EDL MODE Please follow the steps to put your mobile computer into EDL (Emergency Download) mode FOR RS51 MOBILE COMPUTER 1) Make sure the RS51 mobile computer is powered off. 2) Press the at the same time, and Volume Up Key... - Page 18 CipherLab OS Image Download Tool User Guide 3) Now the device is in EDL mode. Please connect it with the PC by RS51 Snap-on Charging and Comm. Cable or RS51 Charging & Comm. Cradle. RS51 Snap-on Charging and Comm. Cable...
- Page 19 2) The device is in EDL Mode now. Please connect your RK95 mobile computer with your PC by the RK95 Snap-on Charging and Comm. Cable or RK95 Charging & Comm. Cradle. RS51 Snap-on Charging and Comm. Cable RS51 Charging & Comm. Cradle Note: The figures above are RK95 mobile computer 38-key model without camera.
-
Page 20: Upgrade Rs51 Os Image In Edl Mode
CipherLab OS Image Download Tool User Guide 2.2.2 UPGRADE RS51 OS IMAGE IN EDL MODE To upgrade the OS image of the RS51 mobile computer: 1) Run the executable file “ ”. DownloadTool.exe 2) Click “ ” to browse the OS image saved in the PC, and choose the file LoadXML…... - Page 21 OS Image Upgrade 3) If the RS51 mobile computer is correctly connected to the PC, the field “ ” Download Info shows “ ” while it remains as blank if the device is not correctly connected to the READY The device is not correctly connected:...
- Page 22 CipherLab OS Image Download Tool User Guide Note If it shows blank in the “Download Info” field and the RS51 mobile computer is appropriately connected to the PC, you may: Click on “Refresh” button to detect the port again. Unplug the Snap-on Charging and Comm. Cable or Charging & Comm. Cradle, and plug it to the USB port of the PC again.
- Page 23 5) The upgrade starts. You can keep track of the progression through the bar and Progress the percentage complete value. 6) “ ” status turns to be " " which indicates OS upgrade is complete, and Download Info PASS within few seconds, your RS51 mobile computer will automatically boot up.
- Page 24 CipherLab OS Image Download Tool User Guide 7) The Welcome wizard appears to run you through setting up the environment. Follow the on-screen instructions to finish the initial setup, and the Home app screen shows up. The OS upgarde is completed for the...
-
Page 25: Upgrade Rk95 Os Image In Edl Mode
2.2.3 UPGRADE RK95 OS IMAGE IN EDL MODE After putting your RK95 mobile computer into EDL mode and correctly connected the device with your PC, you can start to upgrade the OS image by Cipherlab Download Tool: 1) Run the executable file “... - Page 26 CipherLab OS Image Download Tool User Guide 2) Click “ ” to browse the latest RK95 OS image saved in your PC, and then LoadXML… choose the file “ ” to open. rawprogram0.xml...
- Page 27 OS Image Upgrade 3) After “ ” is loaded and the “ ” shows “ ”, click on rawprogram0.xml Download Info READY “ ” button to start to execute RK95 OS upgrade: Download Note If it shows blank in the “Download Info” field and the RK95 mobile computer is appropriately connected to the PC, you may: Click on “Refresh”...
- Page 28 CipherLab OS Image Download Tool User Guide 4) The upgrade starts. You can keep track of the progression through the bar and Progress the percentage complete value. 5) " ” status turns to be " " which indicates OS upgrade is complete, and...
- Page 29 OS Image Upgrade 6) The Welcome wizard appears to run you through setting up the environment. Follow the on-screen instructions to finish the initial setup.
