JessEm Mite-R-Excel II Owner's Manual page 8

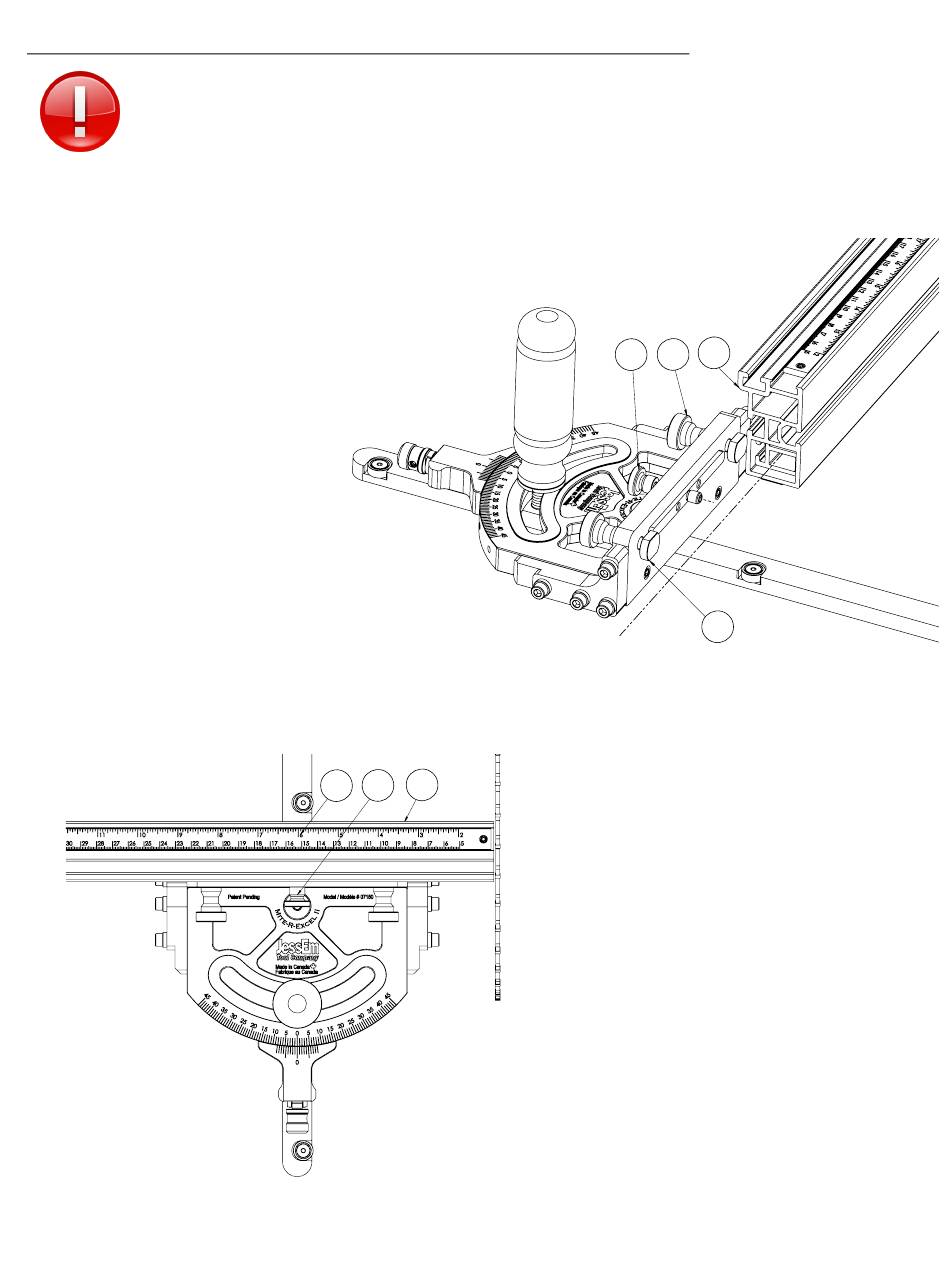

Step 5: Attaching the Fence Extrusion to the Mite-R-Excel II™ Assembly
**NOTE ** The Fence Locating Pin Knob was designed to always allow for the user to
keep their fence properly referenced from the blade when the gauge is set to 0 degrees.
Not all table saw are the same. The instructions below will allow you to properly
reference the fence to suit your needs.
a.
Pull the Fence Locating Pin Knob (Part # 40) back and loosen
both Fence Knobs (Part #45). Slide the fence extrusion through
both of the Fence Clamping T-Bolts - Long (Part #64). See
Figure 5.
33
32 40
Figure 6
8
33
40 45
64
b. Once the extrusion is through both T-Bolts,
line up the Fence Locating Pin Knob (Part
#40) with the 6 inch mark on the ruler
(See Figure 6). Push the knob forward to
engage it as you slowly slide the fence
towards the blade. At roughly the 6-1/8"
mark on the ruler, (See Part 32 in Figure 6)
the locating pin will engage with the preset
Fence Locating Nut in the fence extrusion.
When the locating pin is engaged, tighten
both fence knobs.
Figure 5
