JessEm Mite-R-Excel II Owner's Manual page 11

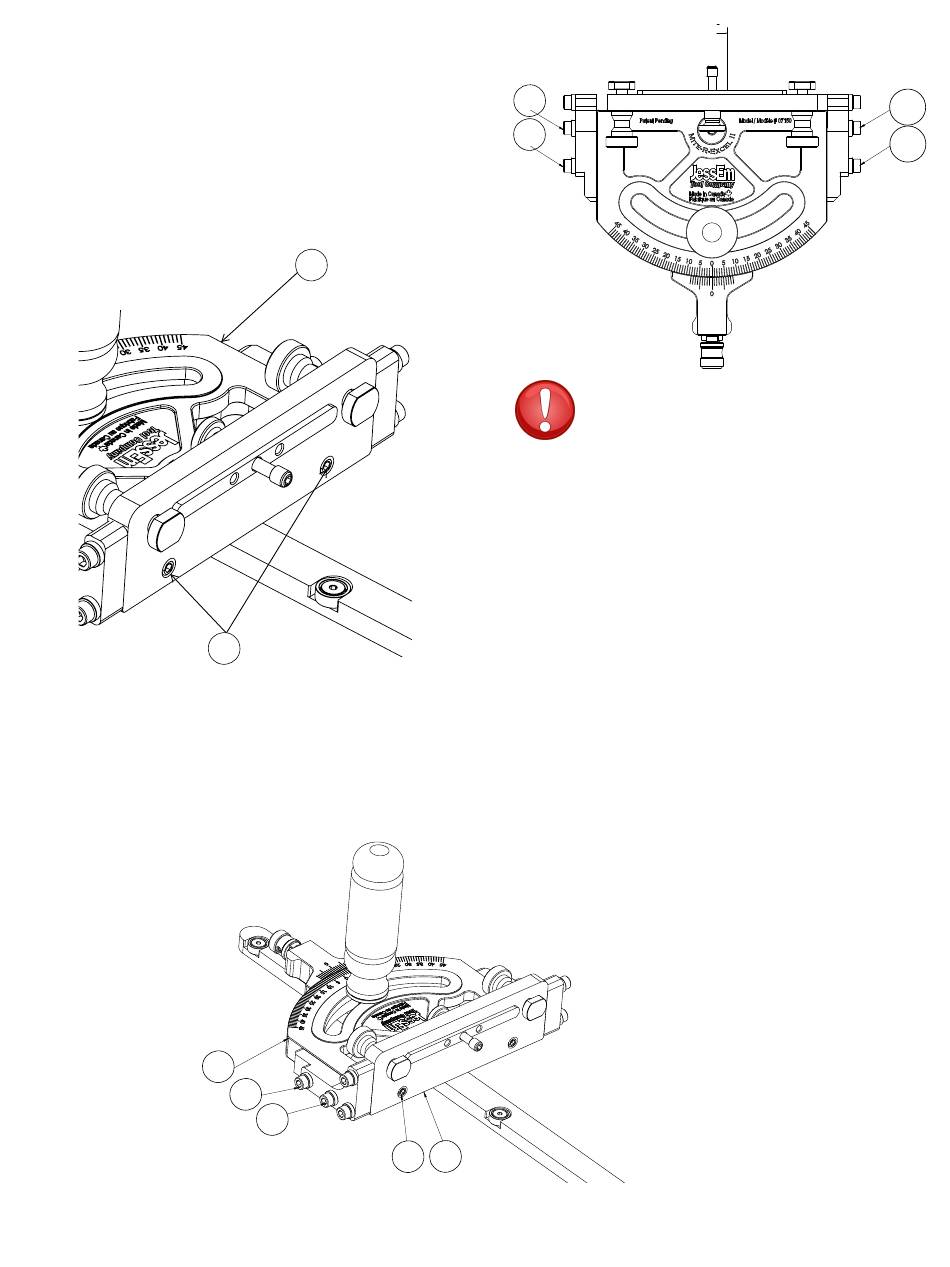

Loosen off (4) Four #10-32 x 7/8" Socket
b.
Head Screw on both sides of the gauge (Part
#9.3 & 9.4) as shown in Figure 11.
39
d. Push the Fence Mount (Part #44) against the Gauge Body (Part #6) and retighten the (4) four
#10-32 x 7/8" Socket Head Screw (Part #9.3 & 9.4), you loosened in step "c" as shown in Figure
13.
6
6
Figure 12
9.4
9.3
39
9.3
9.4
Make sure the (2) ¼-28 x 5/16" Flat Point Set
c.
Screw (Part # 39) are loose before moving on to
step (d). Set screws should not contact gauge
(Part #6) Shown in Figure 12
44
11
Figure 11
Figure 13
9.3
9.4
