JessEm Mite-R-Excel II Owner's Manual page 13

NOTE: Steps (b) thru (e) do not have to be done on the saw.
Using a machine/combination square, align the base against the guide bar (Part #56) and
c.
the ruler/straight edge against the Fence Mount (Part # 44) See Figure 15.
9.4
Look at both the left and right side of the gauge. If there is any gap or light between the
d.
combination square blade and the Fence Mount on either the left or right side,(Part #44)
follow steps i) thru iii) below.
i)
Loosen the 10-32 x 7/8" Socket Head Cap Screws (Part 9.3 and 9.4) on the side with gap.
ii) With 1/8" hex key provided, tighten the 1/4-28 x 5/16" Flat Point Set Screw (Part # 39) until
the set screw presses against the gauge body between the blade and fence mount (Part #44)
See NOTE below.
NOTE: Once the set screw engages with the gauge body, only turn the screw in small
increments while checking to see if the gap has closed after each turn. You will not need
to turn the set screw too many times before the gap is gone.
iii) Once the gauge is flush and no light is seen on both sides of the fence mount, retighten the
10-32 x 7/8" Socket Head Cap Screws (Part 9.3 and 9.4)
e. Re-attach the Fence Extrusion.
f.
Engage the Fence Locating Pin Knob (Part #40) and tighten the fence knobs (Part #45).
9.3
39
44
Left Gap
56
13
Right Gap
C

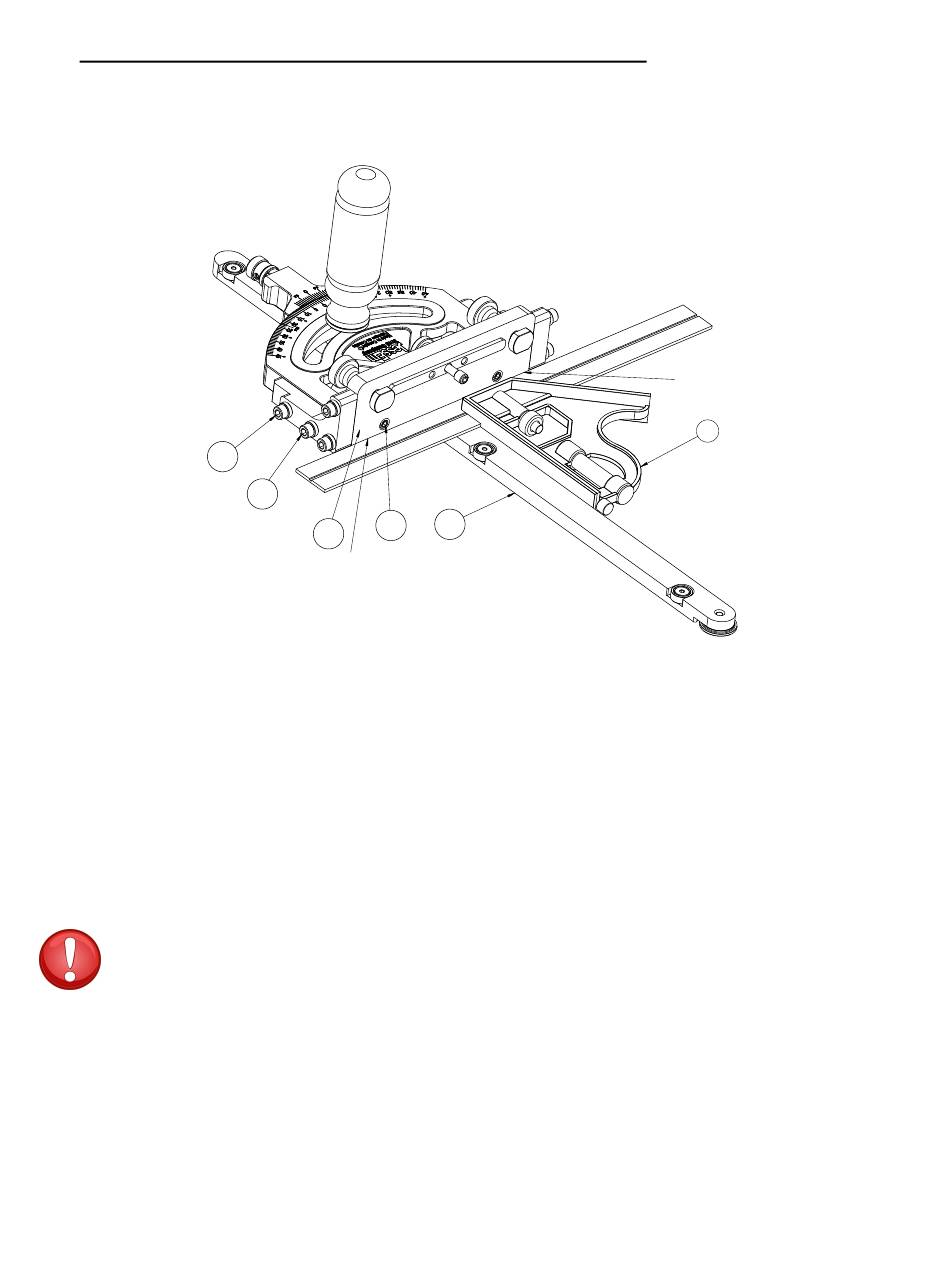

Figure 15
