JessEm Mast R Lift Excel II User Manual

Mast R Lift Excel II
User Manual: Model 02202
Thank you for choosing this product from JessEm
Tool Company. We appreciate your support and
hope that our product serves you well. This
product is designed to provide many years of
reliable service provided it is used as intended and
taken care of.
This user manual will assist you in assembly and
general operation of this product. It is not our intent
to you about woodworking. It is assumed that you
are an experienced woodworker with the basic
skills and experience necessary to use this product
safely. If after reading the following instructions,
you are unsure or uncomfortable about safely
using this product, we urge you to seek additional
information through widely available woodworking
books or classes.
Suggested Router Bit Speeds
Bit Diameter
1" (25mm)
1-1/4" - 2" (30-50mm)
2-1/4" - 2-1/2" (55-65mm)
3" - 3-1/2" (75-90mm)
Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Max. Speed
24,000 RPM
18,000 RPM
16,000 RPM
12,000 RPM
State of California:
61 Forest Plain Road
Oro-Medonte, Ontario, Canada
L3V 0R4
Toll Free: 1-800-436-6799
Local: 705-726-8233
Fax: 705-327-0295
Email: jessem@jessem.com
Website: www.jessem.com
IMPORTANT!
Read and understand the
contents of
this manual before assembly
or operation of this product.
As part of our Continuous Product
Improvement Policy, JessEm products
are always advancing in design and
function. Therefore there may be
differences between what is shown in
our catalogs, website or at retail display
and what is sold at time of purchase.
We reserve the right to make positive
changes to our products at our
discretion.
CONTENTS: Box #1

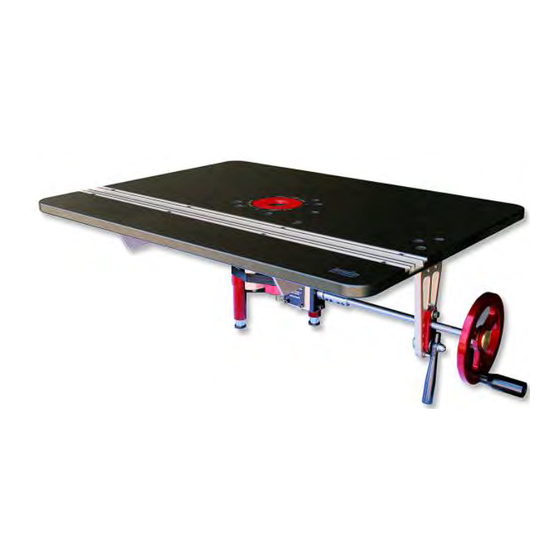

1-Mast-R-Lift Excel Table Top w/Mite-R- Track
CONTENTS: Box #2
1-Carriage and Gear Box Assembly
1-Hardware Package
1-Vaccuum Shroud
1-Crank Handle
2-Table Reinforcements
1-Insert Wrench
1-Two inch insert ring
1-Handle Support/Cam Lock
Assembly
WARNING
