JessEm 07310 Manual

Stainless Steel Tool Setting Gauge
Model #07310 (Large Imperial)
Model #07311 (Small Imperial)
Model #07312 (Imperial Combo Pack)
Model #07315 (Large Metric)
Model #07316 (Small Metric)
Model #07317 (Metric Combo Pack)
Thank you for choosing this product from JessEm Tool Company. We appreciate your support
and hope that our product serves you well. This product is designed to provide many years of
reliable service provided it is used as intended and taken care of.
When using the tool setting gauge to set any tool, ensure that the tool is turned off and the power
source is disconnected before adjustment. Ensure the gauge is not contacting the tool when turned

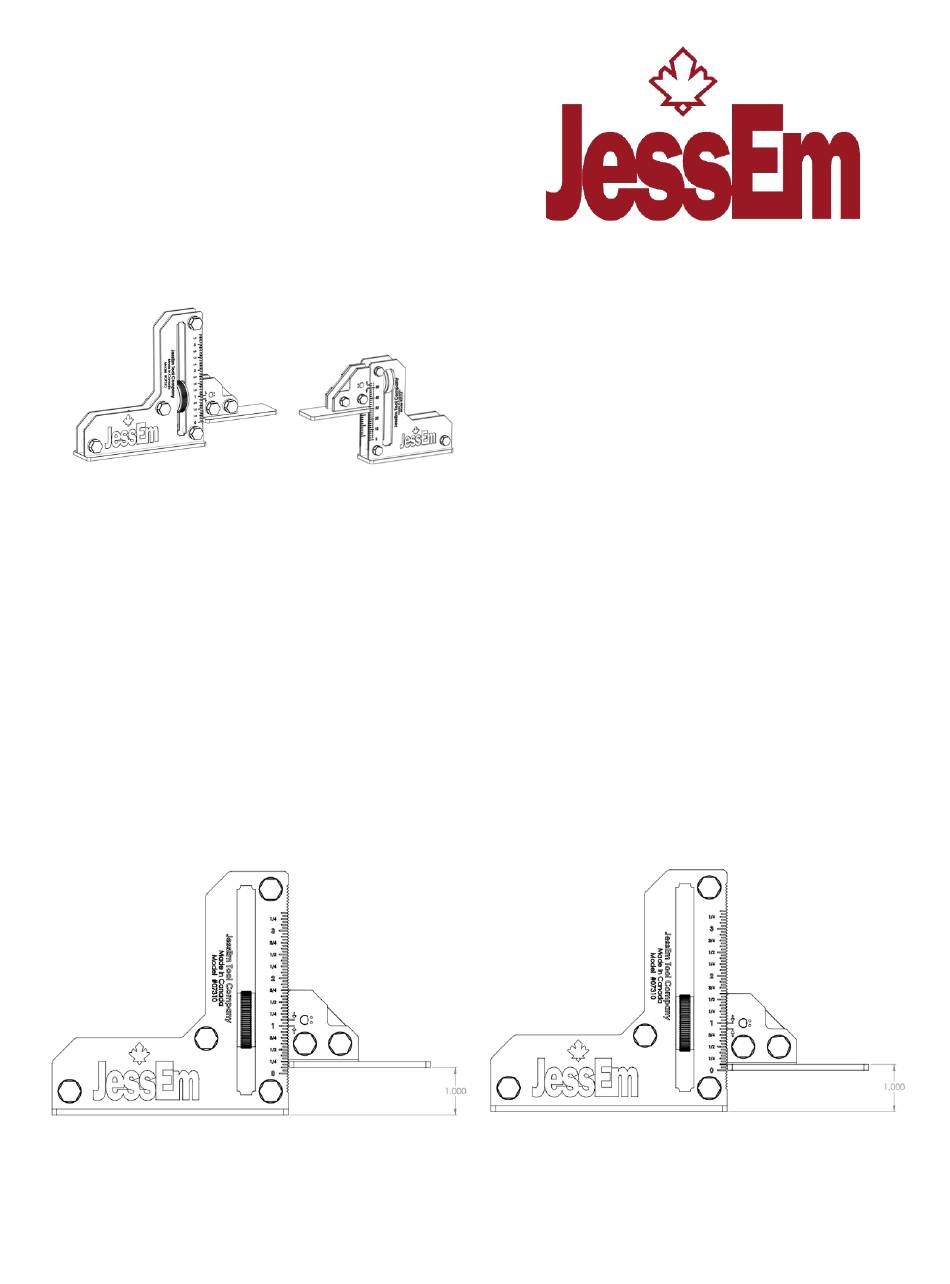

Your tool setting gauge is adjustable either in 1/16" increments (imperial), or 1 mm increments
(metric). Use the bottom reference line with the scale for setting the distance between the lower edge
of the blade and the base of the gauge. Use the upper reference line with the scale to set the distance
between the upper edge of the blade and the gauge base. (See diagram below)
Use lower reference line against scale for setting
distance between the lower blade and the base.
324 Desbrisay Avenue
Moncton, New Brunswick,
Toll Free: 800-436-6799
Local Phone: 705-726-8233
Fax: 705-327-0295
Website: www. JessEm.com
back on.
Use upper reference line against scale for setting
distance between the upper blade and the base.
E1E 0G8, Canada
