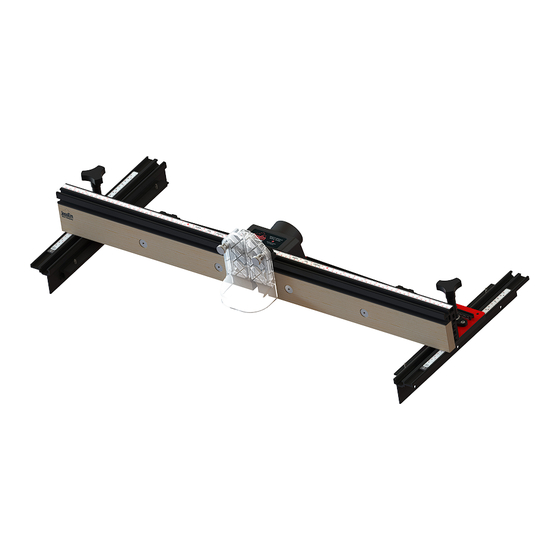

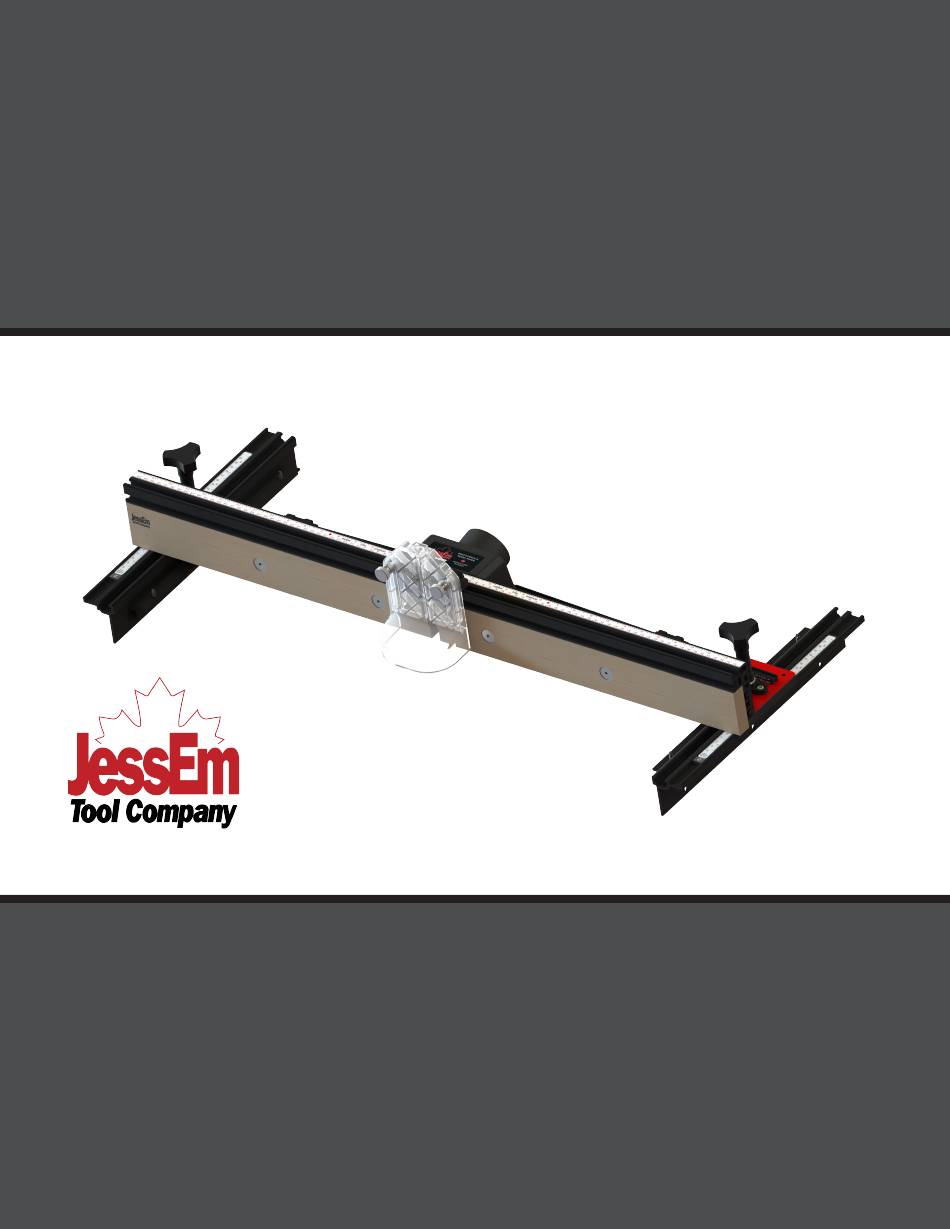

- Page 1 MAST-R-FENCE III Owners Manual Model #04400 61 Forest Plain Road Oro-Medonte, Ontario, Canada L3V 0R4 Toll Free: 1-800-436-6799 Local: 705-726-8233 Fax: 705-327-0295 Email: jessem@jessem.com Web: www.jessem.com...
- Page 2 • Abuse, misuse or neglect. MESSAGE TO OUR CUSTOMERS Thank you for choosing the Mast-R-Fence III router table fence Model: #04400 from JessEm Tool Company. We appreciate your support and hope that our product serves you well. This product is designed to provide many years of reliable service, provided it is used as intended and taken care of.
- Page 3 IMPORTANT SAFETY PRECAUTIONS ROUTER AND ROUTER FENCE A) Personal Safety SAFETY PRECAUTIONS Stay alert, watch what you are doing and use common sense when operating a tool. Do not use a power tool while you are Always make sure the fence on your router table is tired or under the influence of drugs, alcohol or medication.
-
Page 4: Contents Of Packaging
CONTENTS OF PACKAGING Item No. Part Description MAST-R-FENCE III Assembly Guard Track Clamping Knob Guard Mount Fence Track Fence Mounting Angle Fence Shimming Bar TOOLS REQUIRED FOR ASSEMBLY (SUPPLIED) Item No. Part Description JessEm T-25 Torx Screwdriver ⁄ " Hex Key ⁄... - Page 5 THE FOLLOWING INSTRUCTIONS ARE FOR MOUNTING THE #04400 MAST-R-FENCE III TO A JESSEM MAST-R-TOP OR A JESSEM MAST-R-LIFT EXCEL II TOP NOTE: If you are mounting your Mast-R-Fence III to a Non-JessEm top, please skip to step 2. Step 1: Securing fence mounting angles (part #20) to table top JessEm’s Mast-R-Top and Mast-R-Lift Excel II table tops are...
- Page 6 Step 3: Attaching the square nuts Place ⁄ " washers (part #23) onto the ⁄ "-20 X ⁄ " socket head cap screws (part #29). Slide the screws through the slots in the left and right hand track (part #18) See figure 3. Thread the square nuts (part #28) onto the screws.
- Page 7 Step 5: Levelling the tracks to the table top Turn your top right side up on the 2" spacers or you can now mount the top to a stand. Place the fence on the table top in its upright position and allow it to hang over the table edge and lie across the front end of the fence track.
- Page 8 MOUNTING THE MAST-R-FENCE III TO EMBEDDED TABLE TOP TRACKS NOTE: If you are mounting your Mast-R-Fence III with the provided tracks, please skip step 7. NOTE: You will need to source a T-nut or hex nut with a ⁄ "-16 thread which matches the width of the T-slot in your top.
- Page 9 Slide the scale to align the “0” on the scale with the front edge of the fence. See Figure 12. Tighten the set screw. Repeat this for the other scale on the opposite side of the fence. The Mast-R-Fence III should now be centred on your router table. Figure 12...
- Page 10 Figure 15 ADJUSTING THE WOODEN FENCE FACE (PART #37) ON THE MAST-R-FENCE III Step 10: Loosen the (4) fence face clamping knobs (part #22). See figure 16.
- Page 11 REPLACING THE WOODEN FENCE FACE (PART #37) ON THE MAST-R-FENCE III Step 12: Removing the fence faces Remove the (2) fence face clamping knobs (part #22) from the backside of the fence. (HINT: If the knobs are too tight to ⁄...
- Page 12 Slide the fence face clamping knobs into the slots in the fence uprights (part #12). Reattach with clamping knobs (part #22). Figure 19 MAST-R-FENCE III JOINTING Step 14: Storage of shimming bars (when not in use) Slide the shimming bars (part #33) into the shimming bar hold- ers (part #21) until the detent “clicks”...
- Page 14 MAST-R-FENCE III™ PARTS LIST Item No. Part No. Part Description S0053-17 Guard Height Adjustment Knob M0286 Guard F0363 #10-24 X ½" Pan Head Torx Screw S0064-12 Track Clamping Knob Washer E0131-5 Track Clamping Knob S0065-10 Track Clamping Knob Stud E0041-4...
