JessEm Mite-R-Excel II Owner's Manual page 18

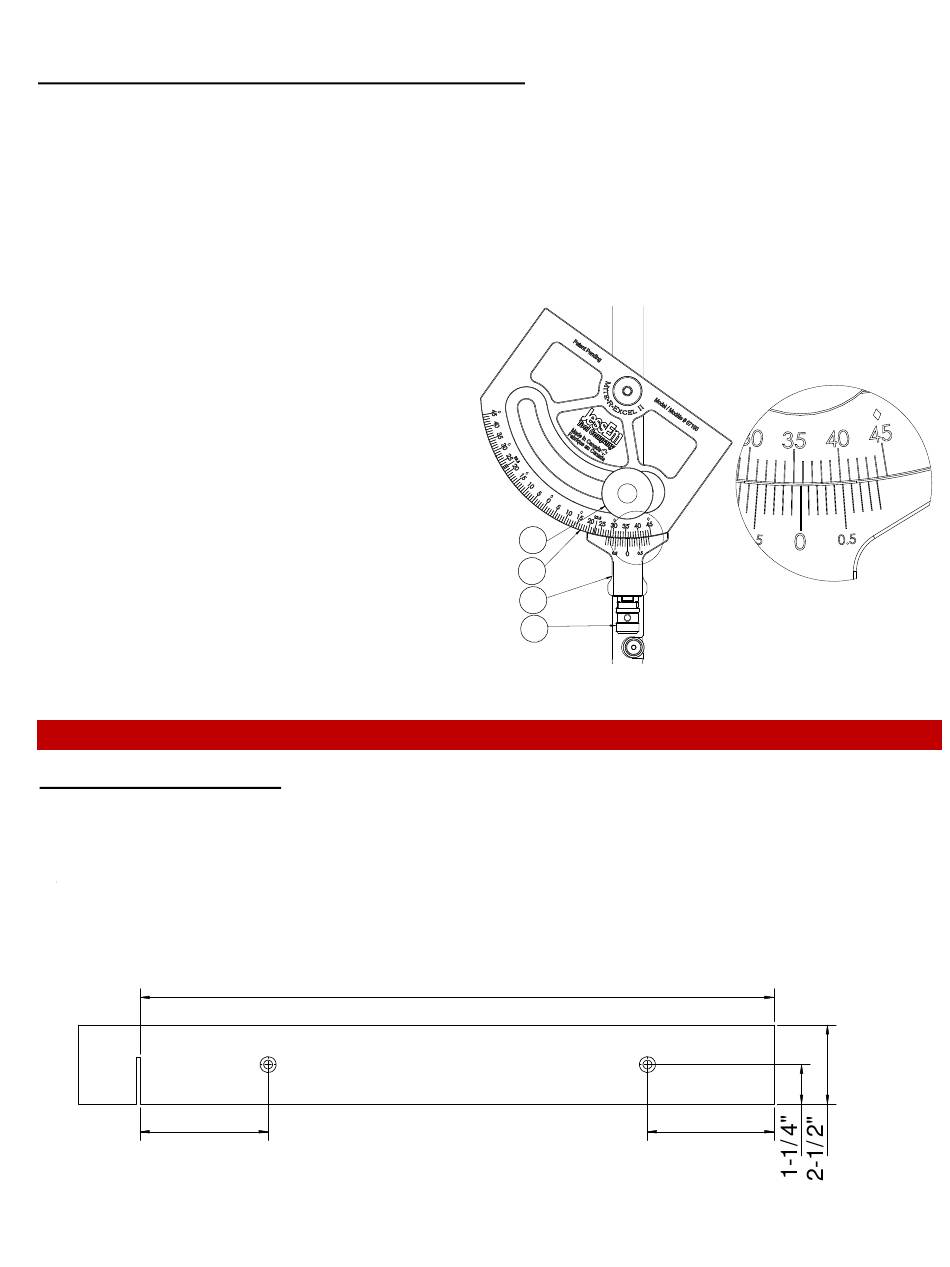

Example 2:
Setting your gauge to 35.7° degrees (Vernier Scale 2)
a. Loosen the Handle (Part #10)
b. Pull out and lock the Indexing Pin Knob (Part #5). See Figure 16 and 17 for locked and
unlocked position of the Indexing Pin Knob.
c.
Rotate the gauge to 35° degrees
d.
Using the lower Vernier Scale on the
Indexing Block (Part #50), rotate the
gauge counter clockwise until the desired
1/10th degree aligns with the nearest
whole degree.
In this example the .7 mark on the lower Vernier
Scale will line up with the "42" on the upper scale.
Tighten the Handle (Part #10) and now the gauge
is set to 35.7° degrees. Remember to keep the
Indexing Pin Knob in the disengaged position.
Mounting A Sacrificial Fence
Making a Sacrificial Fence
JessEm provides the hardware to mount a sacrificial fence.
a. You will need a ¾" thick piece of stock, cut down to 2-1/2" high and anywhere from 22 - 25"
wide. (See Figure 21)
b. Measure and mark the first hole 4" from the right side of the board and 1-1/4" from the bottom as
shown in Figure 21.
4"
10
6
50
5
20"
Figure 21
18
Example #2
INDEXING PIN KNOB
DISENGAGED
4"
