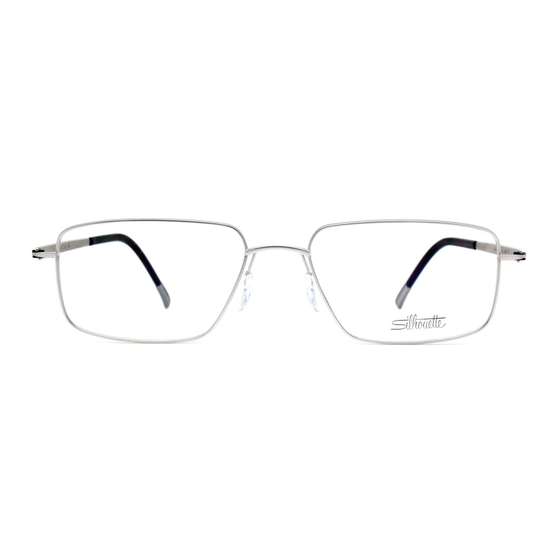

- Page 1 Titan Notion Adjustment Instructions...
- Page 2 Milling of the Lens The screwless, flexible eyerim lock (Flex-Lens-Lock) enables easy mounting of the lens because of the elasticity. Flex-Lens Lock-System The following must be considered when glazing: Lens shape must be taken from the lens pattern or from the OMA Files. DO NOT calculate the lens shape by scanning the eye rim.
- Page 3 Glazing Insert top of lens Push frame edge Frame on lens front. Push frame edge over on upper edge of over lens edge at lens edge along the When mounting from frame. the bridge. behind there is a temple.
-
Page 4: Incline With Inclination Lever
Incline with Inclination Lever AC 400 from advanced glazing box P0032 Hold side part and frame eye rim firmly by hand. * Fabric gloves or a piece of leather will help to hold in place. Place inclination lever on side part and hinge and adjust requested inclination angle. -
Page 5: Inclination By Hand
Inclination by Hand Hold side part firmly at frame eye rim. Cover temple edge with hinge closely. Adjust inclination at Titanium part. -
Page 6: Temple Disassembly
Temple Disassembly Hold Titanium side part firmly at the frame eye rim. Bend temple slighty and pull out of the disc hinge in a straight motion. Please Note: Force may only be applied backwards. Do not twist temple. -
Page 7: Hinge Greasing
Hinge Greasing P0030 Grease inside loop of hinge with high precision lubricant teflon. If neccessary clean beforehand. Attach plastic plate and mount temple. -
Page 8: Fixing Hinge-Bls
Fixing Hinge-BLS BLS 89 Place hinge plates form-fit on both sides of hinge loop. NOTE: The oval shape of the plastic BLS plug system will ensure correct positioning. -
Page 9: Temple Assembly
Temple Assembly Place temple exactly at the slot of the BLS-hinge and click it in carefully until it stops. -
Page 10: Temple Curving - Adjustment
Temple Curving – Adjustment Adjust curving of temple in large Metal needle inside temple enables cold movements. adjustment of temple end. Do Not bend.
