6.5. Mounting the Opener

6.5.1 Raising the Door:

a. When in position, remove the U-bolt (or bolts) and saddle from the
door bracket.
b. Lift the door up and away from the wall until clear of the door
bracket, before lowering the door to rest on the door stand or
(Fig 6.5.1)
prop.
NOTE: If there is limited ceiling space to lift the door, the door bracket
may have to be removed. If this is required, when refitting the door
bracket , use the reference marks on the wall for correct position and
ensure that it is secure to the wall and will support the door.
NOTE: For tight sideroom installations the door may have to be taken
down.
6.5.2 Mounting the Opener:
a. Remove the opener from the box.
b. Check the drive gear rotates freely, by pulling the string handle
down (there will be a click) to disengage opener. Then move the
forks from side to side by hand.
c. Slide the opener over the door axle and into the drum of the door
as shown in Fig 6.5.2.
d. Push the opener in as far as possible (without interfering with the
curtain) SO ONE OF THE DOOR DRUM'S WHEEL SPOKES IS
BETWEEN THE OPENER'S DRIVE FORKS.
e. Raise the door off the door stand or suitable prop.
f. Lift up and over the door bracket and use your reference marks on
the door bracket to position the door.
g. Refit the U-bolt and nuts and tighten
h. Remove the safety rope and door stand or prop.
i. Connect the power cort to a suitable powerpoint, but
SWITCH ON.
j. Secure the power cord away from any moving object (e.g the
door) with the cable clip supplied.
k. With the opener still disengaged, pull the door up and down to
make sure it runs freely.
NOTE: After Installation, ensure that parts do not extend over public
footpaths or roads.
(Fig 6.5.3).
DO NOT
Lift door
up, away
from wall
and down
onto prop
Slide opener
over door
axle
Pull string
down to
disengage
opener
T i g h t e n
U-bolts
Dominator EasyRoller Instruction Manual
Diamond PD Power Drive : Instruction Manual
© Copyright 2018

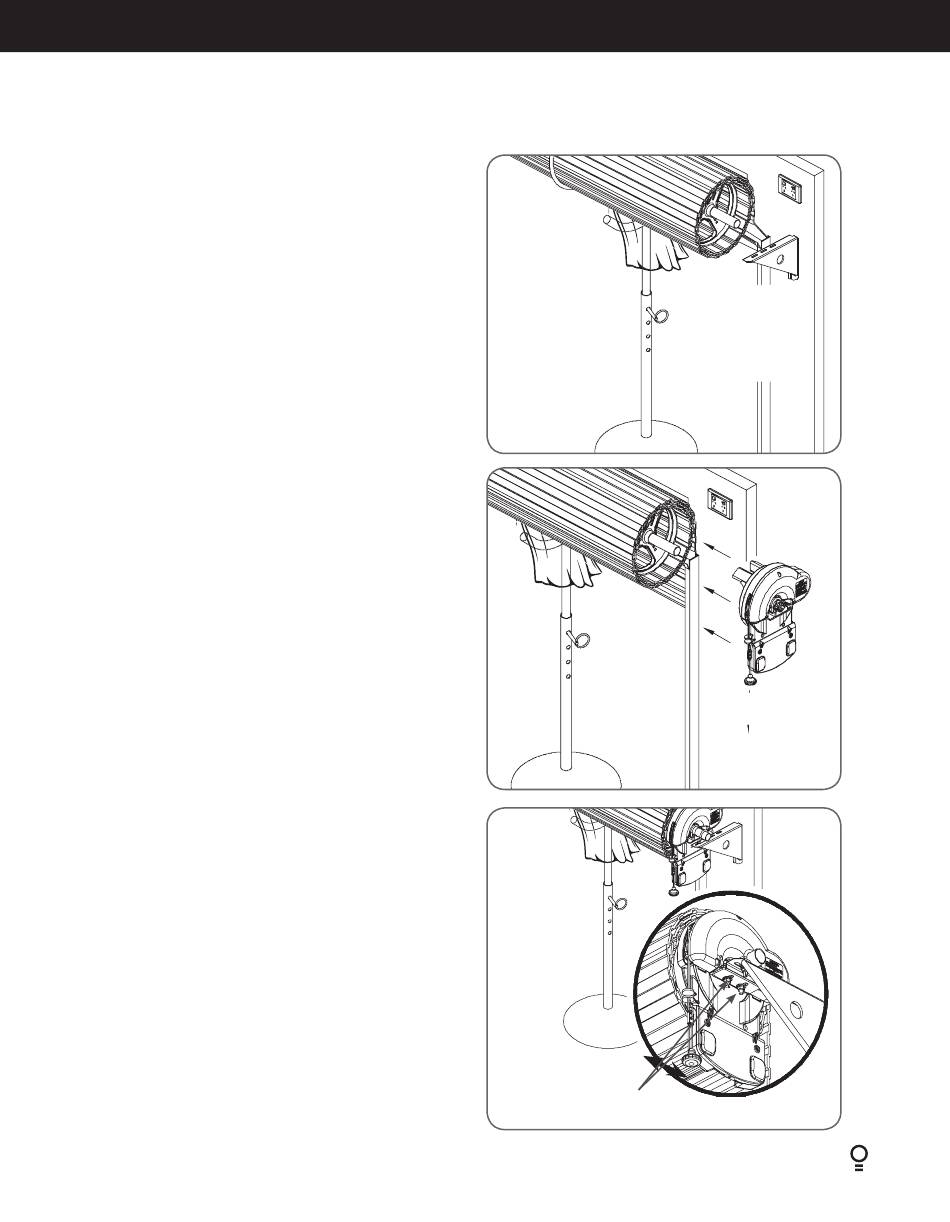

Fig. 6.5.1
