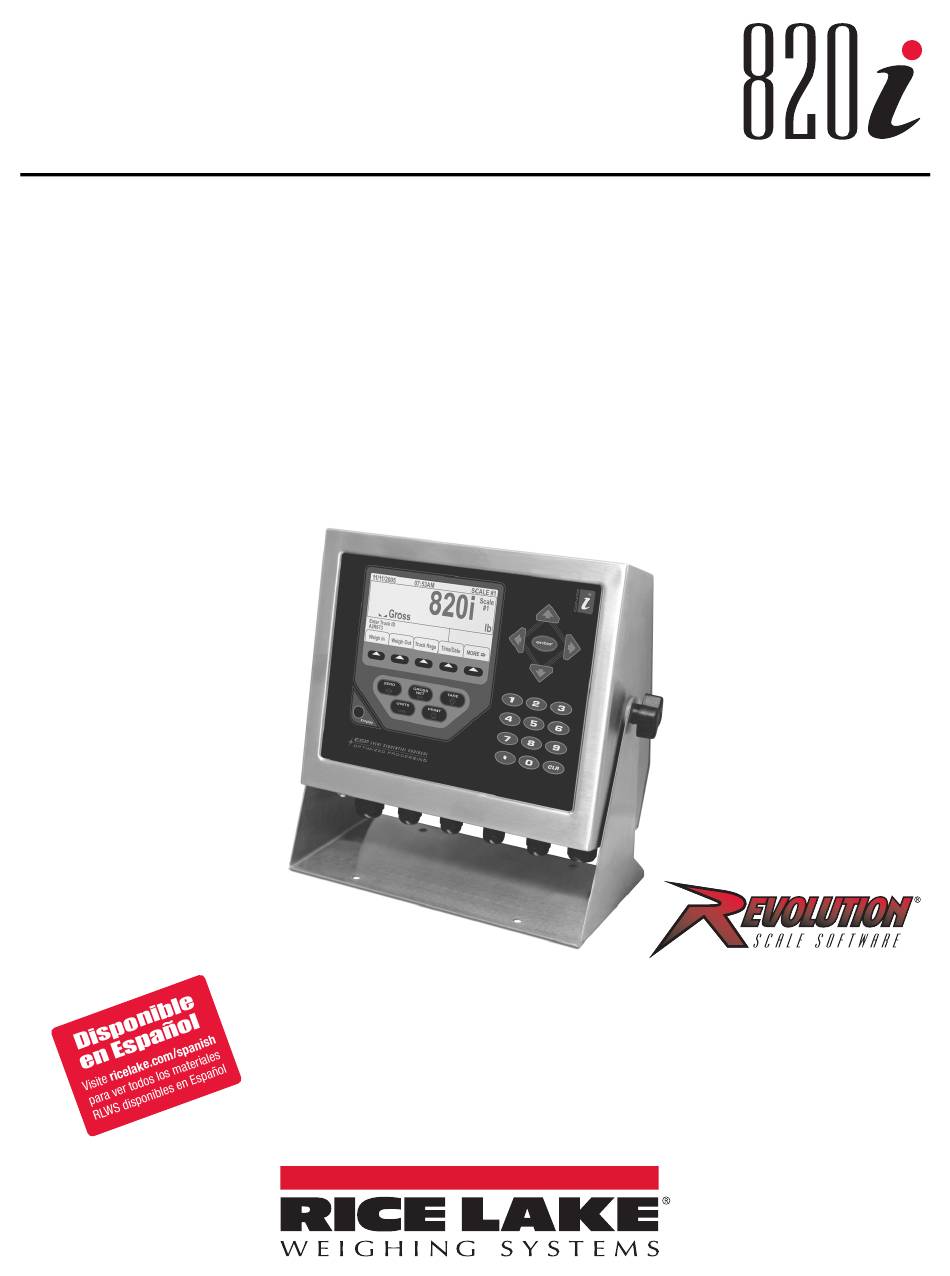

Programmable HMI Indicator/Controller
Version 1.08
Technical Manual
March 26, 2020
PN 93018 Rev C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 820i and is the answer not in the manual?

Questions and answers

Related Manuals for Rice Lake 820i

Summary of Contents for Rice Lake 820i

  • Page 1 ® Programmable HMI Indicator/Controller Version 1.08 Technical Manual March 26, 2020 PN 93018 Rev C...
  • Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.

  • Page 3: Table Of Contents

    Revolution Calibration ................49 Technical training seminars are available through Rice Lake Weighing Systems.
  • Page 4 10.10 Audit Trail Support ................. 104 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost.
  • Page 5 12.0 Specifications ............... . 108 Technical training seminars are available through Rice Lake Weighing Systems.
  • Page 6 820i Programmable HMI Indicator/Controller Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars www.RiceLake.com Visit our website...

  • Page 7: Introduction

    Warranty information can be found on the website at; www.ricelake.com/warranties The Operator Card included with this manual provides basic operating instructions for users of the 820i. Please leave the Operator Card with the indicator when installation and configuration are complete.

  • Page 8: Overview

    ® compiler utility, which can only be downloaded into the indicator. The Rice Lake Weighing Systems Web Update utility can be used to download 820i firmware upgrades to a PC from the Rice Lake Weighing Systems web site; Revolution provides functions for installing the new software into the 820i.

  • Page 9: Operating Modes

    Once configuration is complete and a legal seal is affixed to the large fillister-head screw on the indicator enclosure, this is the only mode in which the 820i can operate.
  • Page 10 820i Programmable HMI Indicator/Controller Toggle Units Press the key to switch between primary, secondary, and tertiary units. UNITS Zero Scale 1. In gross mode, remove all weight from the scale and wait for the standstill annunciator ( 2. Press the key.

  • Page 11: Softkey Operations

    For applications with more than five defined softkeys, the More… key is automatically assigned to the fifth softkey position. Press More… More… to toggle between groups of softkeys. Table 1-1. Configurable Softkeys © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 12: System Configurations And Options

    Table 1-2. Part Numbers for 820i Models Option Cards Table 1-3 lists the available 820i option cards. Most of the listed option cards are be installed in the expansion card slot, J6. USB, Ethernet, and fiber-optic interface cards are installed in connector J1.

  • Page 13: Summary Of Changes

    • New IMAGE parameter on the FEATURE menu allows inversion of the display image (blue-on-white or white-on-blue) for support of the outdoor display option. See Section 3.2.3 for more information. • Display and printing of audit trail information is described in Section 10.10. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 14: Installation

    Immediately after unpacking, visually inspect the 820i to ensure all components are included and undamaged. The shipping carton should contain the indicator, this manual, and a parts kit. If any parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately.

  • Page 15: Cable Connections

    Cable Connections The universal model of the 820i provides six cord grips for cabling into the indicator: one for the power cord, five to accommodate other cabling. Install plugs in all unused cord grips to prevent moisture from entering the enclosure.

  • Page 16: Load Cells

    2.3.3 Serial Communications Communications ports on the 820i CPU board support PS/2-type remote keyboard, full duplex RS-232, 20 mA output, or RS- 485 communications at up to 115200 bps. Optional communications cards support USB, Ethernet, and fiber-optic connections to the 820i.
  • Page 17 Removing the jumper disables RS-232 communications through connector J10. For the USB interface card only, connections for simultaneous RS-232 (configured as Port 3) and USB communications (Port 2) are provided on the USB interface card. See the communications interface card installation instructions for more information. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 18: Digital I/O

    8. Reassemble the enclosure as described in Section 2.6. The 820i automatically recognizes all installed option cards when the unit is powered on. No hardware-specific configuration is required to identify the newly-installed card to the system. www.RiceLake.com Visit our website...
  • Page 19 SERIAL PORT 3 (COMMUNICATIONS OPTION CARDS) SETUP DIGITAL I/O LOAD CELL SERIAL PORT 4 LOAD CELL SWITCH CONNECTOR CONNECTOR CHANNEL 1 CHANNEL 2 CHANNEL 2 SENSE JUMPERS Figure 2-3. 820i CPU Board © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 20: Slot Assignments

    820i Programmable HMI Indicator/Controller Slot Assignments Table 2-4 lists the slot numbers, CPU board connectors, and configuration assignments made for both onboard and expansion card functions in the 820i. See Figure 2-3 for connector locations. Slot Number Connector Function Configured As...

  • Page 21: Battery Replacement

    CPU board battery location and orientation (positive side up). Risk of explosion if battery is replaced with incorrect type. Dispose of batteries per manufacturer instruction. CAUTION Parts Kit Contents Table 2-5 lists the parts kit contents for the universal model of the 820i. Part No. Description 14626...
  • Page 22 Power Cord (Item 15) 29 To Inside of Enclosure See Detail A Inside Bottom View Ground wire from power cord (item 15) 29 To Backplate Grounding Stackup Detail A Figure 2-5. 820i Universal Model Replacement Parts www.RiceLake.com Visit our website...
  • Page 23 16892 Ground/Earth label 88733 Vent, breather sealed 88734 Nut, breather vent — 93246 Display board assembly * Additional parts included in parts kit. Table 2-6. 820i Universal Model Replacement Parts List © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 24: Configuration

    Configuration To configure the 820i indicator, the indicator must be placed in setup mode. The setup switch is accessed by removing the large fillister head screw on the bottom of the enclosure. Switch position is changed by inserting a screwdriver into the access hole and pressing the switch.

  • Page 25: Serial Command Configuration

    3.1.2 Serial Command Configuration The serial command set can be used to configure the 820i indicator using either a personal computer, terminal, or remote keyboard. Like Revolution, serial command configuration sends commands to the indicator serial port; unlike Revolution, serial commands can be sent using any external device capable of sending ASCII characters over a serial connection.

  • Page 26: Total Scale Configuration

    Menu Structures and Parameter Descriptions The 820i indicator can be configured using a series of menus accessed through the indicator front panel when the indicator is in setup mode. Table 3-1 summarizes the functions of each of the main menus.

  • Page 27: Scales Menu

    RATTRAP SMPRAT PWRUPMD TAREFN ACCUM VISIBL PEAK HOLD 120HZ BOTH 240HZ DELAY NOTARE NORMAL 480HZ PBTARE BI-DIR 960HZ KEYED AUTO 7.5HZ 15HZ 30HZ 60HZ CALIBR CALIBR Submenu Figure 3-4. SCALES Menu © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 28 820i Programmable HMI Indicator/Controller SCALES Menu Parameter Choices Description Level 2 submenus Allows configuration and calibration of each scale SCALE CONFIG Lists available and associated A/Ds Level 3 submenus Specifies the number of full scale graduations if SPLIT=OFF. (For multi-range and multi-interval scales (SPLIT  OFF), the GRADS value is derived from the capacity and display divisions specified for the range or interval.)
  • Page 29 Following the print command, the peak value is cleared and reset automatically. WZERO WVAL CALIBR WSPAN See Level 4 submenu descriptions in Table 3-5 on page WLIN REZERO Table 3-2. SCALES Menu Parameters (Continued) © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 30 820i Programmable HMI Indicator/Controller … … GRADS SPLIT FORMAT ZTRKBND ZRANGE MOTBAND PRIMAR SECNDR DECPNT DSPDIV UNITS DECPNT DSPDIV UNITS MULT 8888888 888888.8 0.453592 8888880 number 8888888 8888880 8888800 8.888888 8888800 88.88888 8.888888 888.8888 88.88888 troyoz 8888.888 888.8888 troyoz 88888.88 troylb 8888.888...
  • Page 31 Specifies primary units for displayed and printed weight. Values are: lb=pound; kg=kilogram; g=gram; UNITS oz=ounce; tn=short ton; t=metric ton; gn=grain; troyoz=troy ounce; troylb=troy pound; lt=long ton. troyoz troylb CUSTOM NONE Table 3-3. SCALES Menu, FORMAT Submenu Parameters, SPLIT = OFF © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 32 820i Programmable HMI Indicator/Controller SCALES Menu, FORMAT Submenu, SPLIT = OFF Parameter Choices Description Secondary Units (SECNDR) and Tertiary Units (TERTIA) Parameters 888888.8 8888888 8888880 8888800 Decimal point location. Determines the location of the decimal point or dummy zeros in the secondary or ter- DECPNT 8.888888...
  • Page 33 50.00000 weight 8888888 8888880 8888800 8.888888 88.88888 888.8888 troyoz 8888.888 If SPLIT = 3RNG or 3INTVL troylb 88888.88 CUSTOM NONE  Figure 3-6. FORMAT Submenu, SPLIT OFF (Multi-range and Multi-interval Scales) © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 34 820i Programmable HMI Indicator/Controller SCALES Menu, FORMAT Submenu, SPLIT  OFF Parameter Choices Description Level 4, FORMAT submenu 8888888 8888880 8888800 8.888888 Decimal point location for first range or interval. Specifies the location of the decimal point or dummy zeroes in the DECPT1 88.88888...
  • Page 35 NOTE: Use this parameter only after WZERO and WSPAN have been set. See Section 4.2 on page 47 for more information about using this parameter. Table 3-5. SCALES Menu, CALIBR Submenu Parameters © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 36: Serial Menu

    820i Programmable HMI Indicator/Controller 3.2.2 SERIAL Menu Section 10.5 on page 96 for information about 820i serial data formats. SCALES SERIAL FEATURE DISPLAY PFORMT SETPTS DIG I/O ALGOUT VERS … … PORT 2 PROGIN Same as BAUD BITS TERMIN STOP BITS...
  • Page 37 INDUST TERTIA SCALE or IND SC If STREAM ≠ OFF 4KEYS GROSS KEYPAD INVALID DISPLAY MOTION ZERO If PORT = CMD or PROGIN RANGE TARE Figure 3-9. SERIAL Menu, Port 3 © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 38 820i Programmable HMI Indicator/Controller DISPLAY SCALES SERIAL FEATURE PFORMT SETPTS DIG I/O ALGOUT VERS … PORT 4 PROGIN IQUBE SCALE IND SC DISPLAY TESTCOM See PROGIN Selections VALIDAT BAUD BITS TERMIN STOP BITS ECHO RESPONSE EOLDLY HANDSHK 9600 8NONE CR/LF...
  • Page 39 DISPLAY NOTE: IQUBE * The keyboard interface is not hot-pluggable. Power-off the 820i before attaching keyboard cable to the Port 1 connector. * Port 3 is used only for the USB interface card * For iQUBE configuration, set the port type to IQUBE then configure using Revolution * Print format outputs default to Port 4;...
  • Page 40 820i Programmable HMI Indicator/Controller SERIAL Menu Parameter Choices Description Specifies whether Port 4 is used for RS-232 or RS-485 communications. If 485 is selected, additional prompts are shown to specify half- or full-duplex operation and RS-485 address. PORTTYPE NOTE: RS-485 communications can be specified for Ports 4 and 7.

  • Page 41: Feature Menu

    PROMPT 60 CANADA INDUST INDUST Submenu string string NONE OIML IMAGE REGWORD CONTACT LOCALE LATUDE ELEVAT NEGATIVE GROSS BRUTTO number number POSITIVE CONTACT Submenu If LOCALE = ON Figure 3-11. FEATURE Menu © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 42 820i Programmable HMI Indicator/Controller FEATURE Menu Parameter Choices Description Level 2 submenus Allows selection of date format and date separator character. See Level 3 submenu parameter descriptions. DATEFMT DATE Use the TIME/DATE softkey or the SD serial command to set the date. See Section 9.0 on page 80...
  • Page 43 Elevation. Specify the elevation of the scale site in meters. Valid values are –9999 through 9999. This ELEVAT ±0–9999 parameter is shown only if LOCALE=ON. Table 3-7. FEATURE Menu Parameters (Continued) © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 44 820i Programmable HMI Indicator/Controller FEATURE Menu Parameter Choices Description Specifies whether the indicator display is presented as blue-on-white or white-on-blue. The default value, NEGATIVE, shows the standard blue-on-white image when using the stock LCD display; NEGATIVE IMAGE the optional outdoor display shows white-on-blue. When using the outdoor display, set this value to POSI-...
  • Page 45 Enter the next scheduled calibration date using the month/day/year format on the DATEFMT date NEXTCAL* parameter. Separator characters are not required. Table 3-8. CONTACT Submenu Parameters *If value is not changed, date will reflect 6 months out from last calibration. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 46 820i Programmable HMI Indicator/Controller FEATURE Menu, REGULAT/INDUST Submenu The INDUST setting of the REGULAT parameter allows customization of several tare, clear, and print functions for use in non- legal-for-trade scale installations. See Section 10.2 on page 94 for more information about regulatory mode functions.

  • Page 47: Display Menu

    PORT 3 PORT 4 PORT 2 PORT 3 PORT SERV PHONE NONE Alert modem format Alert email phone server PORT 4 PORT 2 ALERT format ONLY PORT 3 Figure 3-15. PFORMT Menu © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 48: Setpts Menu

    820i Programmable HMI Indicator/Controller 3.2.6 SETPTS Menu Section 8.0 on page 62 for more information about configuring and using setpoints. Submenus for the various setpoint kinds (shown as Go to X in Figure 3-16) are described in Figures 8-2 through 8-9, beginning on page 66.

  • Page 49: Dig I/O Menu

    PRINT KEY9 GROSS ACCUM KEYDP SETPNT KEY0 PRIM ENTER TIMDATE NAVUP CLEAR NAVDN CLRTAR DSPTAR NAVLFT CLRACC IDKEY NAVRGT TRIGGER OUTSLOT PARAM NONE number SLOT 2 Figure 3-17. DIG I/O Menu © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 50 820i Programmable HMI Indicator/Controller DIG I/O Menu Parameter Choices Description Level 2 submenus SLOTx BIT y Lists available digital I/O slots. Level 3 submenus INPUT OUTPUT PROGIN ZERO Specifies the function of the digital I/O bit. NT/GRS OFF indicates that the bit is not configured.

  • Page 51: Analog Output Menu

    59650 Tweak span. Enter tweak value to adjust the analog output span calibration. Use a multimeter to monitor the analog TWSPAN 0-65535 output value. Table 3-11. Analog Output Menu Parameters © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 52: Version Menu

    820i Programmable HMI Indicator/Controller Version Menu The VERS menu can be used to check the installed software version or, by using the softkey, to restore all Reset Config configuration parameters to their factory default values. There are no parameters associated with the Version menu: when selected, the indicator displays the installed software version number.

  • Page 53: Calibration

    Calibration Calibration The 820i can be calibrated using the front panel, serial commands, or Revolution®. Each method consists of the following steps: • Zero calibration • Entering the test weight value • Span calibration • Optional five-point linearization • Optional rezero calibration for test weights using hooks or chains The following sections describe the calibration procedure for each of the calibration methods.

  • Page 54: Serial Command Calibration

    820i Programmable HMI Indicator/Controller Calibrate Performs calibration for the selected point Temp Zero Temporarily zeroes the displayed weight of a non-empty scale. After span calibration, the difference between the temp zero and the previously calibrated zero value is used as an offset.

  • Page 55: Revolution Calibration

    7. Send the KSAVE serial command to save the calibration changes; send KEXIT to exit setup mode. Revolution Calibration The Revolution Calibration Wizard provides step-by-step scale calibration. With the 820i connected to the PC, select the Calibration Wizard from the Tools menu on the Revolution Scales display, then follow the steps listed below to calibrate the scale.

  • Page 56: Using Revolution

    To configure the 820i using Revolution, start the program, then select New from the File menu. The Select Indicator display, shown in Figure 5-1, prompts you to select the indicator type. To open a new configuration file, select the icon for the 820i and click OK. Figure 5-1. Revolution Select Indicator Display www.RiceLake.com...
  • Page 57 Using Revolution® Next, the Indicator Information display for the 820i is shown. To begin configuring the indicator, click on the Scales tab (bottom left of display), then on the Scales icon (see Figure 5-2). Figure 5-2. Revolution Indicator Information Display Next, a blank Scale display is shown, with scale entries listed for Scale #1, Scale #2, and Scale #3.

  • Page 58: Connecting To The Indicator

    Connecting to the Indicator Connect the PC serial port to port 2 of the 820i, then click on the Connect icon in the toolbar. Revolution attempts to establish communications to the indicator. If communications settings need to be adjusted, select Options… from the Tools menu.

  • Page 59: Installing Software Upgrades

    Figure 5-5. Rice Lake Web Update Display Click on the Check for Updates button in the Rice Lake Web Update application to check if a new version of the 820i software is available. To download a new software version, select the new software version and click on .

  • Page 60: Print Formatting

    Print Formatting Commands Table 6-1 lists commands you can use to format the 820i print formats. Commands included in the format strings must be enclosed between < and > delimiters. Any characters outside of the delimiters are printed as text on the ticket. Text characters can include any ASCII character that can be printed by the output device.
  • Page 61 1 is assumed. Value must be in the range 1–99. User Program-dependent Commands nn> Insert user print text string (from user program, SetPrintText API) <US <EV> Invoke user program print handler (PrintFmt AUXFMT Table 6-1. Print Format Commands (Continued) © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 62: Default Print Formats

    Default Print Formats Table 6-2 shows the default print formats for the 820i and lists the conditions under which each print format is used. The HDRFMT1 and HDRFMT2 formats are used to specify header information that can be used by the other ticket formats. The contents of the HDRFMTx format can be inserted into any other ticket format using the <H1>...

  • Page 63: Customizing Print Formats

    Revolution, you can type text directly into the grid, then select weight value fields from the tool bar and place them where you want them to appear on the printed ticket. Figure 6-1 shows an example of the Revolution print formatting display. Figure 6-1. Revolution Print Formatting Display © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 64: Using The Front Panel

    820i Programmable HMI Indicator/Controller 6.3.2 Using the Front Panel If you have no access to equipment for communication through a serial port or are working at a site where such equipment cannot be used, you can use the PFORMT menu (see Figure 6-2) to customize the print formats.

  • Page 65: Using Serial Commands

    6.3.3 Using Serial Commands With a personal computer, terminal, or remote keyboard attached to one of the 820i serial ports, you can use the serial command set described in Table 6-1 to customize the print format strings. To view the current setting of a format string, type the name of the print format and press the key.

  • Page 66: Truck Modes

    These keys are right Weigh In Weigh Out Truck Regs required when using the truck modes. 05/25/2006 08:01PM 12500 Scale Gross Weigh In Weigh Out Truck Regs Figure 7-1. 820i Display, showing Truck Mode Softkeys www.RiceLake.com Visit our website...

  • Page 67: Using The Truck Regs Display

    ID containing a decimal point. IDs entered with Weigh In Weigh Out a decimal point as part of the ID are erased from the truck register when the transaction is complete. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 68: Setpoints

    Batch setpoints are active one at a time, in an ordered sequence. The 820i can use setpoints to control up to 100 separate batch processing steps.
  • Page 69 For example, if the display shows 50.0 but the actual raw A/D value is 49.99, the setpoint will not be satisfied. Table 8-1. Setpoint Kinds (Continued) © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 70 820i Programmable HMI Indicator/Controller Kind Description Batch Continuous Time of day setpoint. Performs functions when the internal clock time of the indicator matches the spec- ified setpoint time. Delta weight setpoint. Satisfied when the change in weight on the scale is equal to or exceeds the abso- DELTA lute value specified for the setpoint.

  • Page 71: Setpoint Menu Parameters

    INRANGE BATCHPR TIMER CONCUR DIGIN Go to D Go to E DELTA CHKWEI PLSCNT PLSRAT ALWAYS NEVER DINCNT Go to G Go to F Go to H Figure 8-1. SETPTS Menu © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 72 820i Programmable HMI Indicator/Controller GROSS –GROSS ACCUM –NET Same as GROSS VALUE SOURCE TRI P BANDVAL HYSTER number number number HIGHER List of available scales LOWER If TRIP=INBAND If TRIP=HIGHER INBAND GROSS, NET, –GROSS, and OUTBAND TRIP=OUTBAND TRIP=LOWER –NET setpoints only...
  • Page 73 List of available NONE NORMAL output bits for INVERT 1–100 specified slot List of available digital I/O slots If SLOT≠NONE If BA TCH=ON Figure 8-3. +REL, –REL, %RELS and RESREL Setpoint Parameters © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 74 820i Programmable HMI Indicator/Controller P AUSE and COUNTER setpoints VALUE ACCESS NAME SENSE SLOT DIGOUT BRANCH List of available number NONE NONE NORMAL output bits for specified slot HIDE 1–60 1–100 INVERT List of available digital I/O slots COUNTER COUNTER If SLOT≠...
  • Page 75 NORMAL NONE NONE output bits for INVERT 1–100 1–100 HIDE 1–60 specified slot List of available digital I/O slots If SLOT≠ NONE Figure 8-5. COZ, INMOTON, INRANGE, and BATCHPR Setpoint Parameters © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 76 820i Programmable HMI Indicator/Controller DIGIN, AVG, and TOD setpoints VALUE NSAMPLE SOURCE TRIP BANDV AL DIN SLOT DIN MASK number number number HIGHER List of installed 24-bit mask of List of available digital I/O cards digital inputs scales LOWER If TRIP=INBAND...
  • Page 77 List of available digital I/O slots If SLOT≠ NONE Figure 8-7. DELTA and CHKWEI Setpoint Parameters © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 78 820i Programmable HMI Indicator/Controller PLSCNT VALUE SOURCE COAST BATCH PSHPRNT ACCESS NAME number number NONE List of available scales HIDE 1–60 WAITSS SLOT SENSE BRANCH NORMAL NONE INVERT 1–100 List of available digital I/O slots PLSRAT VALUE SOURCE TRIP BANDVAL...
  • Page 79 HIDE List of available 1–24 digital input slots NAME SLOT SENSE NONE NONE NORMAL 1–60 INVERT List of available digital I/O slots Figure 8-9. ALWAYS, NEVER, and DINCNT Setpoint Parameters © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 80 820i Programmable HMI Indicator/Controller SETPTS Menu Parameter Choices Description Level 2 submenus GROSS –GROSS –NET ACCUM +REL –REL %REL RESREL PAUSE Specifies the setpoint kind. DELAY WAITSS GROSS, NET, –GROSS, –NET, ACCUM, ROC, +REL, –REL, %REL, RESREL. DIGIN, DINCNT, COUNTER AVG, and TOD setpoint kinds can be used as either batch or continuous setpoints.
  • Page 81 The batch must be restarted or reset to clear the error message. The special value of zero means that the batch is never paused for an out-of-tolerance condition. Table 8-2. Setpoint Menu Parameters (Continued) © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 82 820i Programmable HMI Indicator/Controller SETPTS Menu Parameter Choices Description For relative setpoints, specifies the number of the relative setpoint. The target weight for this setpoint is determined as follows: • For +REL setpoints, the value of the relative setpoint plus the value (VALUE parameter) of the +REL...

  • Page 83: Batch Operations

    Table 8-2. Setpoint Menu Parameters (Continued) Batch Operations Softkeys can be configured to allow operator control of batch operations from the 820i front panel (see Figure 8-10), Softkeys can be configured using Revolution, serial commands, or the FEATURE menu (see Section 3.2.3).
  • Page 84 820i Programmable HMI Indicator/Controller Stops an active batch and turns off all associated digital outputs. Batch Stop To prevent personal injury and equipment damage, software-based interrupts must always be supplemented by WARNING emergency stop switches and other safety devices necessary for the application.
  • Page 85 2. Unlock STOP button (OUT position) 3. Turn 3-way switch to START Use this procedure (or the BATRESET serial command) to initialize the new batch routine following any change to the Note setpoint configuration. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 86: Serial Commands

    Serial Commands The 820i indicator can be controlled by a personal computer or remote keyboard connected to an indicator serial port. Control is provided by a set of serial commands that can simulate front panel key press functions, display and change setup parameters, and perform reporting functions.

  • Page 87: Reporting Commands

    Table 9-2. Reporting Commands 9.1.3 Clear and Reset Commands The following commands can be used to clear and reset the 820i: PCLR: Program clear. Erases the loaded user program (setup mode only). RS: Reset system. Resets the indicator without resetting the configuration.

  • Page 88: Parameter Setting Commands

    820i Programmable HMI Indicator/Controller 9.1.4 Parameter Setting Commands Parameter setting commands allow you to display or change the current value for a particular configuration parameter (Tables 9-3 through 9-11). Current configuration parameter settings can be displayed in either setup mode or normal mode using the following syntax: command<ENTER>...
  • Page 89 SC.LC.CD# Deadload coefficient — SC.LC.CW# Span coefficient — Temporary zero — SC.LC.CZ# Rezero — SC.REZERO# For commands ending with “# ”, is the scale number. Table 9-3. SCALES Serial Commands (Continued) © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 90 820i Programmable HMI Indicator/Controller Command Description Values EDP.PORT Active serial port Returns number of port being used for serial command input CMD, KEYBD, SCALE, IND SC, DISPLAY, IQUBE Installation Manual EDP.INPUT# Port serial input function See the iQUBE , PN 77224, for more information about configuring iQUBE serial scales.
  • Page 91 (up to 30 characters for each line) CONTACT.ADDR2 CONTACT.NAME1 contact_names Contact names (up to 20 characters each) CONTACT.NAME2 CONTACT.PHONE1 contact_phone_numbers Contact phone numbers (up to 20 characters each) CONTACT.PHONE2 Table 9-5. FEATURE Serial Commands © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 92 820i Programmable HMI Indicator/Controller Command Description Values contact_e-mail_address CONTACT.EMAIL Contact e-mail address (up to 30 characters) NEXTCAL Next calibration date calibration_date GRAVADJ Gravitational adjustment OFF, ON 0–90 LAT.LOC Latitude (to nearest degree of latitude) ±0–9999 ELEV.LOC Elevation (in meters) IMAGE...
  • Page 93 = screen number. WDGT#1= Widget display The 820i supports the following widget display configurations: WDGT#1=1,3,1,1Single scale display, larger font WDGT#1=1,2,2,1Dual scale display, smaller font Table 9-7. PFORMT Serial Commands © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 94 820i Programmable HMI Indicator/Controller Command Description Values — DON. Set digital output on (active) at bit , slot s. — DOFF. Set digital output off (inactive) at bit , slot s. OFF, INPUT, OUTPUT, PROGIN, ZERO, NT/GRS, TARE, UNITS, PRINT, ACCUM, SETPNT, TIMDATE, ESC, CLEAR, DSPTAR, IDKEY, KEY0–KEY9, KEYDP, ENTER, NAVUP,...

  • Page 95: Normal Mode Commands

    Stops the program and resets the batch program to the first batch step. Run the BATRESET command after making BATRESET Batch reset changes to the batch configuration. Table 9-12. Batching Control Commands © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 96: Appendix

    If not correct, deconfigure this scale assignment and reconfigure as required. Check source scale for proper mechanical operation. Check cable connection. Serial scale out of range Possible format mismatch between serial scale and 820i: Check SFMT specification under SERIAL menu. Option...

  • Page 97: Option Card Diagnostic Errors

    Appendix 10.1.1 Option Card Diagnostic Errors Option cards are detected by the 820i at power-up. If the current indicator configuration requires an option card but that card is not detected at power-up, an error similar to the following is displayed:...

  • Page 98: User Program Diagnostic Errors

    Diagnostic Boot Procedure If a user program causes an error in the start-up handler, press and hold the setup switch while cycling power to the 820i to place the indicator in setup mode. Use Revolution monitor mode to send the PCLR command erase clear the user program.

  • Page 99: Using The Xe Serial Command

    10.1.4 Using the XE Serial Command The XE serial command can be used to remotely query the 820i for the error conditions shown on the front panel. The XE command returns a decimal number representing any existing error conditions. For multi-scale applications, the value returned by the XE command represents all error conditions, if any, present on all configured scales.

  • Page 100: Regulatory Mode Functions

    820i Programmable HMI Indicator/Controller 10.2 Regulatory Mode Functions The function of the front panel keys depends on the value specified for the REGULAT parameter on the TARE ZERO FEATURE menu. Table 10-4 describes the function of these keys for the NTEP, CANADA, OIML, and NONE regulatory modes.

  • Page 101: Serial Scale Interface

    Serial ports 3, 4 and any expansion ports can be configured for serial scale input. The serial scale function allows other scale indicators to send gross, net, or tare weight data to the 820i. Once a serial port has been configured to accept scale data, the data format can be customized to match the data stream sent by that indicator.

  • Page 102: Custom Stream Formatting

    820i Programmable HMI Indicator/Controller 10.5 Custom Stream Formatting Each port can be independently configured to stream a default frame format or can be customized to stream a user-defined format. Custom formatting is very similar to the standard print formatting described in Section 6.0.
  • Page 103 Two consecutive decimals send the decimal point even if it falls at the end of the transmitted weight field. <CR> — Carriage return <LF> — Line feed Table 10-7. Custom Stream Format Identifiers © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 104: Data Formats

    Demand Output Serial Data Format When demand mode is configured for the serial port (STREAM parameter set to OFF), the 820i uses a data string formatted for a basic ticket printout. The particular ticket format printed depends on the indicator configuration.

  • Page 105: Digital Filtering

    <STX> ASCALE #1<EOL> GROSS 1699 LB<EOL> 08/20/1998 10:05 AM<EOL> <ETX> <CR> If continuous transmission is configured for the serial port, the 820i sends data using the data format shown in Figure 10-4: <STX> <ADDRESS> <STREAM DATA> <ETX> <CR> ASCII 02...
  • Page 106 820i Programmable HMI Indicator/Controller Setting the Digital Filter Parameters Fine-tuning the digital filter parameters greatly improves indicator performance in heavy-vibration environments. Use the following procedure to determine vibration effects on the scale and optimize the digital filtering configuration. 1. In setup mode, set the digital filter parameters (DIGFLT1–DIGFLT3) to 1. Set DFTHRH to NONE. Return indicator to normal mode.

  • Page 107: Conversion Factors For Secondary Units

    Appendix 10.8 Conversion Factors for Secondary Units The 820i has the capability to mathematically convert a weight into many different types of units and instantly display those results with a press of the key. UNITS Secondary and tertiary units can be specified on the FORMAT menu using the SECNDR and TERTIA parameters, or by using serial commands.
  • Page 108 820i Programmable HMI Indicator/Controller Secondary/ Primary Unit x Multiplier Tertiary Unit kilograms 15432.4 grains 35.2740 ounces 1000.00 grams 2.20462 pounds 32.15075 troy ounces 2.679229 troy pounds 0.001102 short tons 0.000984 long tons 0.001000 metric tons short tons 2000.00 pounds 907.185 kilograms 0.892857...

  • Page 109: Ps/2 Keyboard Interface

    10.9 PS/2 Keyboard Interface Serial port 1 (connector J9) on the 820i CPU board provides a PS/2-type keyboard interface (Scan Code Set 1 only) for use with a remote keyboard.Table 10-9 shows the pin assignments for a PS/2 keyboard cable.

  • Page 110: Audit Trail Support

    820i Programmable HMI Indicator/Controller 10.10 Audit Trail Support Audit trail support provides tracking information for configuration and calibration events. A separate calibration counter is provided for each scale; a single configuration counter tracks all configuration changes. To prevent potential misuse, unsaved configuration or calibration changes (those followed by an...

  • Page 111: Dimension Drawings

    Appendix 10.11 Dimension Drawings Figure 10-5. Universal Model Dimensions © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 112: Printed Information

    10.12 Printed Information System Manuals • 820i Installation Manual, PN 93018 Enclosures • 820i Panel Mount Installation Instructions, PN 95304 Option Cards (820i/920i) • Analog Output Card Installation Instructions, PN 69089 • 24-Channel Digital I/O Expansion Card Installation Instructions, PN 69087 •...

  • Page 113: Compliance

    820i and 920i series 2014/30/EU EMC EN 61326-1:2013, EN 55011:2009+A1:2010, EN 61000-6-1:1995, EN 61000-6-2:2007 2014/35/EU LVD IEC 60950-1 ed.2 2011/65/EU RoHS EN 50581:2012 __________________________ _ ___ ________ __________________________ May 3, 2019 __________________________ __________________________ __________________________ © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 114: Specifications

    Serial Communications Serial Ports Ports on CPU board support up to 115200 bps; optional dual-channel serial expansion card available The 820i complies with Part 15 of Port 2 Full duplex RS-232 with CTS/RTS the FCC Rules. Port 4 Full duplex RS-232; 2-wire RS-485, 20mA...
  • Page 116 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 www.ricelake.com...
