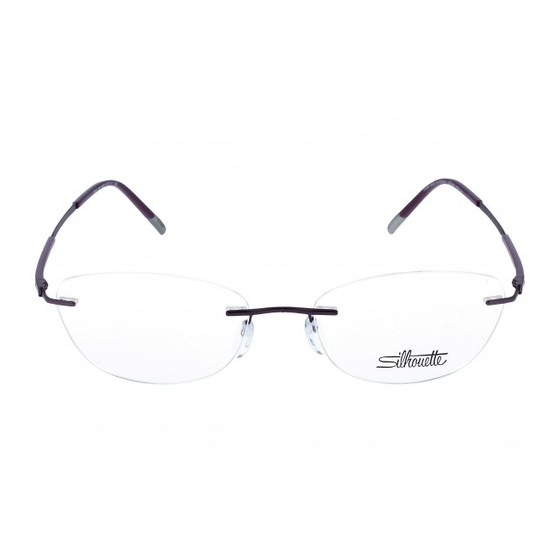

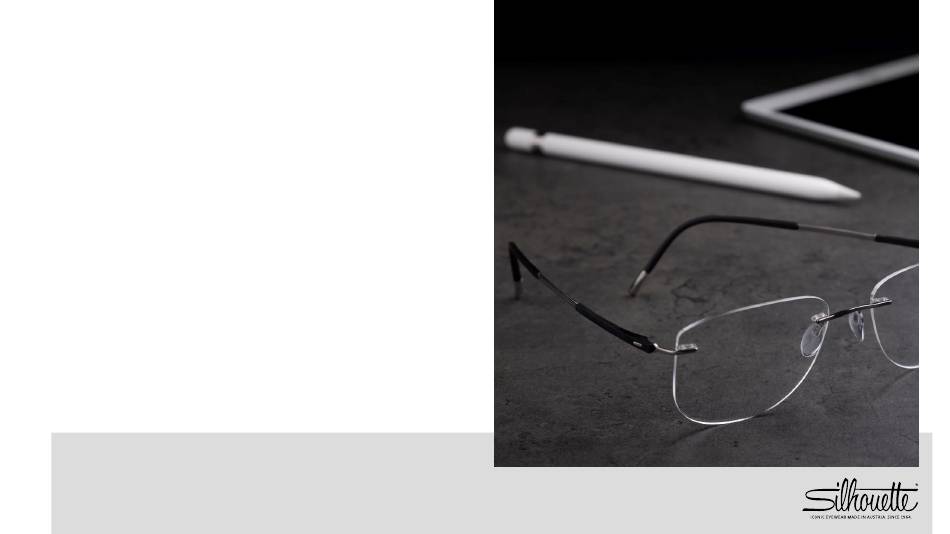

- Page 1 Titan Dynamics Contour 5540 Technical Instructions...
- Page 2 Titan Dynamics Contour | Glazing with Silhouette Vision Sensation Lenses ® Silhouette now offers premium prescription lenses for all Silhouette frames. Expertly crafted in Austria using our exclusive Panorama ® lens designs, Silhouette Vision Sensation ® lenses perfectly match the curve of every Silhouette frame.
- Page 3 Titan Dynamics Contour | Glazing Mount lenses using BLS 58 sleeve and Silhouette mounting plier with turquoise or blue tip.
- Page 4 Frame is designed with a 5.0 base curve Other base curves will work and will require bridge adjustment Recommended lenses are High Index 1.6, 1.67, Polycarbonate and Trivex Patterns available from Silhouette customer service at 800-223-0180 OMA shape files available at https://portal.silhouette.com...
- Page 5 Titan Dynamics Contour | Inclination 1. Open the temple. 2. Support lens mounting firmly with the mounting pliers. 3. Hold end piece firmly and adjust inclination into the required position.
- Page 6 Titan Dynamics Contour | Temple opening enlarge 1. Open the temple. 2. Support lens fixation firmly with mounting pliers. 3. Press the temple outward with your thumb.
- Page 7 Titan Dynamics Contour | Temple opening reduce 1. Open the temple. 2. Support lens fixation firmly with mounting pliers. 3. Press the temple inward with your index finger.
- Page 8 Titan Dynamics Contour | Temple Bend 1. Adjust the temple to the ear shape with large curves. During temple-end adjusting do not put pressure on the temple tip.
- Page 9 Titan Dynamics Contour | Temple shortening Pull off temple end.
- Page 10 Titan Dynamics Contour | Temple shortening 1. Shorten titanium wire with metal-diagonal cutter. 2. File down sharp edges and burrs...
- Page 11 Titan Dynamics Contour | Temple shortening Squeeze titanium wire with round pliers at the very end.
- Page 12 Titan Dynamics Contour | Temple removal 1. Place the red-multi tool or the new blue multi-tool near the hinge. 2. Close hinge to rest on the multi-tool. 3. Place pressure on temple directly behind the multi-tool until the temple snaps out of the hinge.
- Page 13 Titan Dynamics Contour | Temple mounting Align the temple with the hinge and press it in with your index finger.
