MUDGUARD INSTALLATION

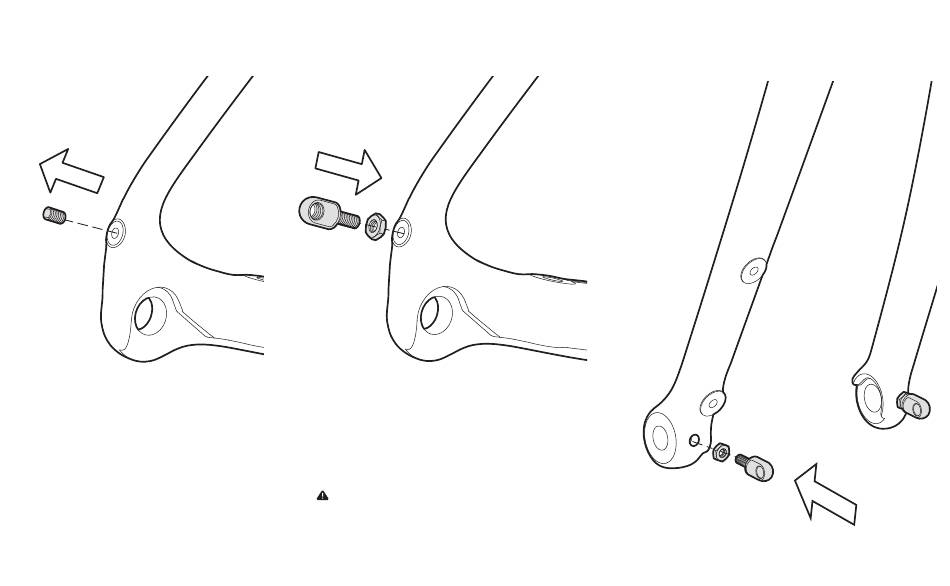

Remove set screw from threaded
mud guard eyelet hole.
13
Lightly grease threads and install M4
nut on the fender mount bolt. Install the
bolt into the frame, turning 4-4.5 times
by hand, until oriented vertically. Tighten
4mm nut against frame to lock (~1 Nm).
Do not overtighten, overstressing the threads can
result in de-bonding of the insert. Always use the
M4 nut to secure the eyelet's position.
