ELECTRIC CABLE ROUTING
It is recommended that electric cabling and junction points be installed after the brake hose has been
installed. These routing illustrations are intended as a supplement to the manufacturer's installation
instructions only. Please refer to the component manufacturer's service center or website for further
information.
11

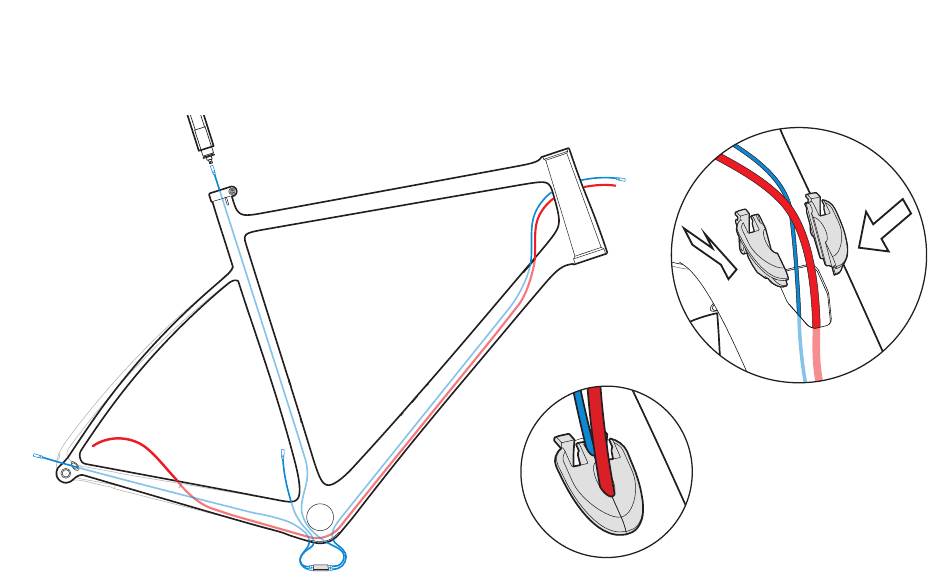

With the brake hose already
in place, route the down
tube electric wire to the
bottom bracket. Install the
two piece Down Tube Cable
Stop (Electric).
