Rohde & Schwarz ZVH4 Manual
Cable and antenna analyzer
Hide thumbs
Also See for ZVH4:
- Operating manual (242 pages) ,
- Operating manual (194 pages) ,
- Operating manual (246 pages)
Related Manuals for Rohde & Schwarz ZVH4
Summary of Contents for Rohde & Schwarz ZVH4

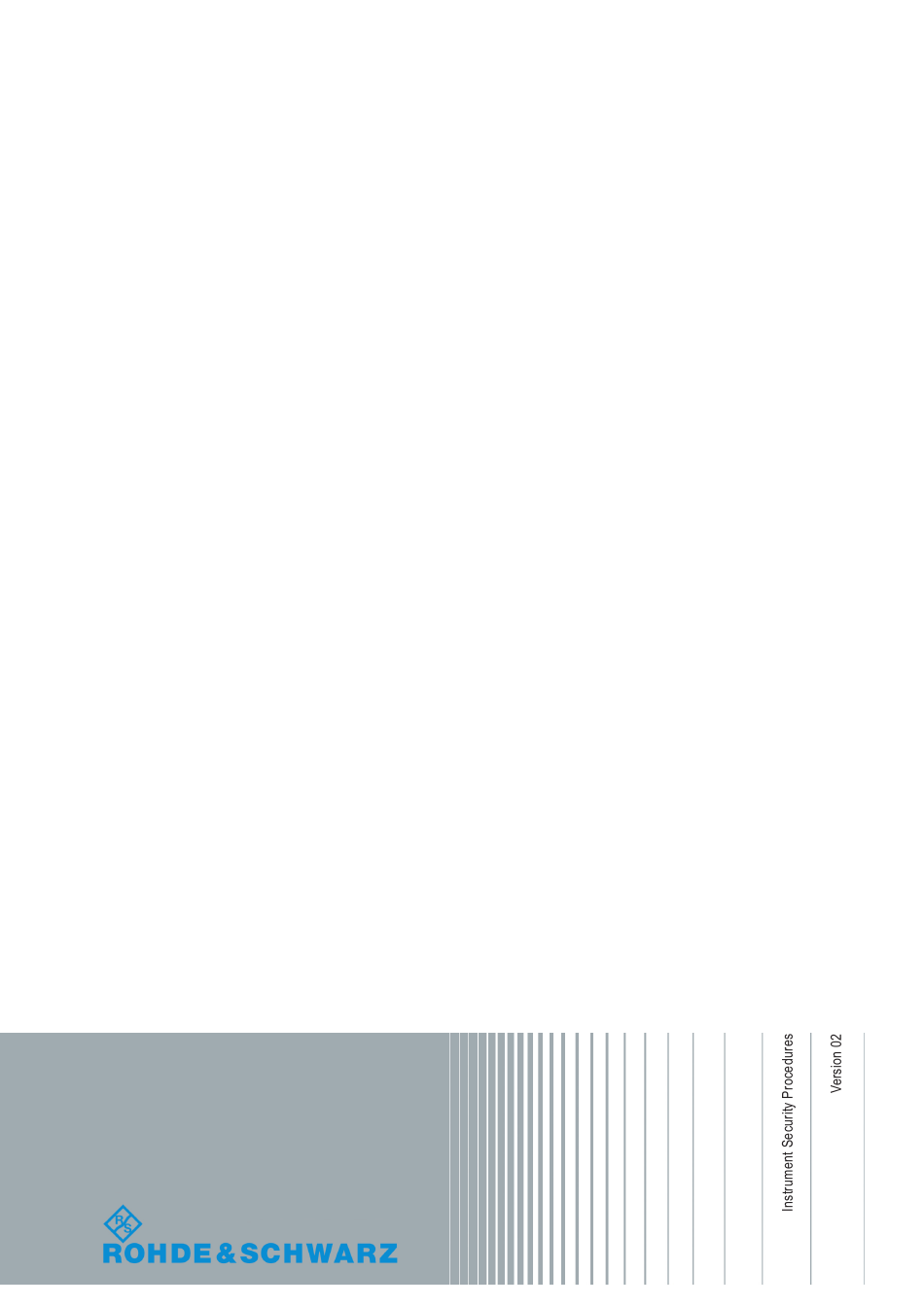

- Page 1 ® R&S Cable and Antenna Analyzer Instrument Security Procedures (;Ü[H2) 1178432402...
- Page 2 These sanitization procedures are designed for customers who need to meet the requirements specified by the US Defense Security Service (DSS). 2 Instrument Models Covered Table 2-1: Cable and Antenna Analyzer models Product name Order number R&S ZVH4 1309.6800.24 R&S ZVH8 1309.6800.28 Instrument Security Procedures 1178.4324.02 ─ 02...
- Page 3 ® Security Terms and Definitions R&S 3 Security Terms and Definitions Clearing The term "clearing" is defined in Section 8-301a of DoD 5220.22-M, "National Industrial Security Program Operating Manual (NISPOM)". Clearing is the process of eradicating the data on media so that the data can no longer be retrieved using the standard inter- faces on the instrument.
- Page 4 ® Types of Memory and Information Storage in the R&S ZVH R&S Volatile Memory Memory type Size Content Volatility User Sanitization proce- data dure ● Display memory (video Video - SRAM 512 kbyte Volatile Turn off instrument memory) (main board) power and remove ●...
- Page 5 ® Types of Memory and Information Storage in the R&S ZVH R&S Non-Volatile Memory Measurement - SRAM The main board of the R&S ZVH Cable and Antenna Analyzer has one 2 Mbyte SRAM memory device which contains intermediate measurement data. A second 256 kbyte SRAM memory device on the main board contains the measure- ment control data.
- Page 6 ® Instrument Declassification R&S ● Factory default settings (display type and contrast, installed options, baud rate, lan- guage, length unit etc.) ● User general settings (display type and contrast, installed options, baud rate, lan- guage, length unit etc.) ● User data (cable models, transducers, limit lines, channel tables, user standards) ●...
- Page 7 ® Instrument Declassification R&S These declassification procedures meet the needs of customers working in secured areas. Validity of instrument calibration after declassification The calibration makes sure that measurements comply to government standards. Rohde & Schwarz recommends that you follow the calibration cycle suggested for your instrument.
