Elite Screens Aeon AR110WH2 User Manual

Applies to all available screen materials:

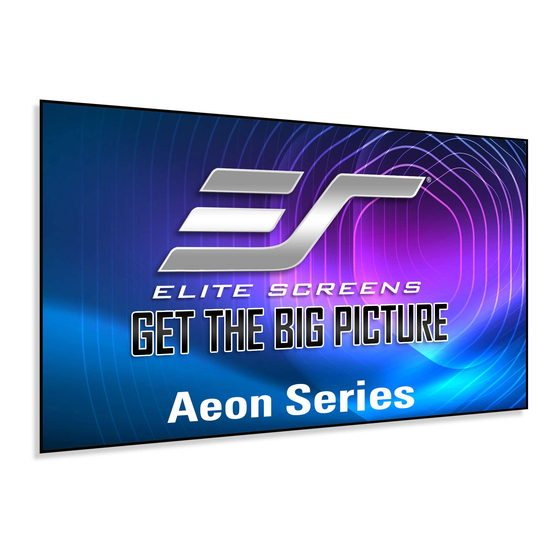

Product Description: The Aeon Series is a fixed frame projection screen that uses Elite's EDGE FREE®
technology. The EDGE FREE® design resembles a giant size flat panel TV display. The Aeon includes a velvet tape as
an installation option to further enhance the frame appearance and absorb projector overshoot. An optional LED
backlighting kit is available for added visual appearance.
Assembly Video: For further assistance, watch our assembly and installation video at
www.elitescreens.com/video/aeon-assembly
For more information on the LED kit please visit:
Hardware and Parts List
Please make sure all parts listed below are included before installation.
A. Elbow joint x 4 pcs
D. Center joints x 2 pcs
G. M6 screw x 2-12 pcs
J. M5x50 screws/anchor x 6 pcs
M. Velvet tape
V021417-EA
Aeon Series
EDGE FREE® Fixed Frame Projection Screen
User's Guide
CineGrey 3D®, CineGrey and CineWhite®
or scan the following QR Code:
http://www.elitescreens.com/led
B. Top/Bottom horizontal fame x 4 pcs
E. Center Support bar x 1-3pcs
(135"-150"x2pcs;180"-200" x3pcs)
H. M5x15 screw x24 pcs
K. Rubber hammer x 1 pc
www.elitescreens.com
C. Left/Right vertical frame x 2 pcs
N. Corner Support Bar (180"-200") x4pcs
F. Wall brackets x2-3 pcs
I. M6x12 screw x 2-12pcs
L. Screwdriver x1 pc
1
