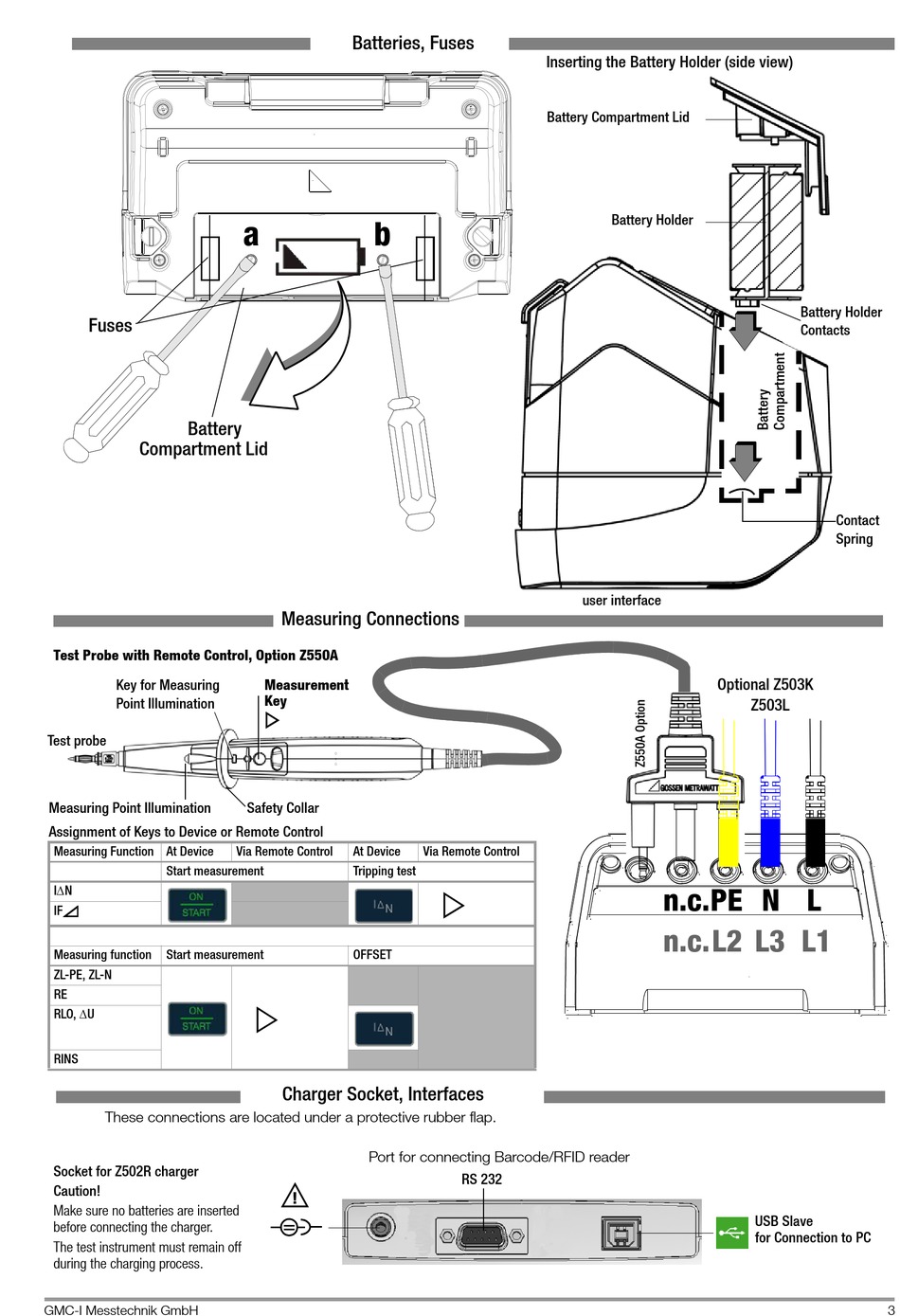

Fuses
Battery
Compartment Lid
Test Probe with Remote Control, Option Z550A
Key for Measuring
Point Illumination
Test probe
Measuring Point Illumination
Assignment of Keys to Device or Remote Control
Measuring Function At Device
Start measurement
IN
IF
Measuring function
Start measurement
ZL-PE, ZL-N
RE
RLO, U
RINS
These connections are located under a protective rubber flap.
Socket for Z502R charger
Caution!
Make sure no batteries are inserted
before connecting the charger.
The test instrument must remain off
during the charging process.
GMC-I Messtechnik GmbH
Batteries, Fuses
a
b
Measuring Connections
Measurement
Key
Safety Collar
Via Remote Control
At Device
Tripping test
OFFSET
Charger Socket, Interfaces
Port for connecting Barcode/RFID reader
!
Inserting the Battery Holder (side view)
Battery Compartment Lid
user interface
Via Remote Control
RS 232
Battery Holder
Optional Z503K
Z503L
n.c.
PE
N
n.c.
L2
L3
USB Slave
for Connection to PC
Battery Holder
Contacts
Contact
Spring
L
L1
3
