Sierra Wireless AirLink GX400 Modem
Obtaining Help for Your AgJunction Product
Contact your local dealer for technical assistance.
To find the authorized dealer near you:
Phone: (800) 247-3808
Email:
info@agjunction.com
If you need to contact AgJunction Technical Support:
Phone: (800) 247-3808
Email:
support@agjunction.com
Modem Overview
This section lists the parts included with your modem and describes the LEDs, ports, and connections on the front and
rear of the modem.
What's Included with Your Modem?
Your modem kit includes the following items at right:
•

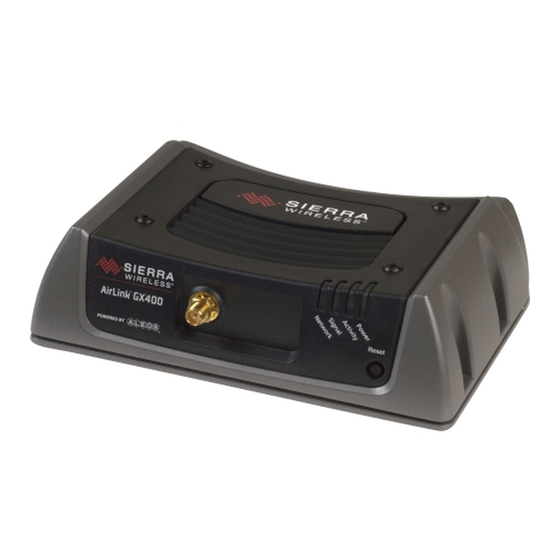

GX400 modem
–
WiFi version has an antenna port on the front
of unit (as shown at right) and includes a
detachable antenna
–
Non-WiFi version has no antenna port on the
front of the unit
•
DC power cable (4-pin power connector to 4-wire
unterminated)
•
GPS / cellular modem antenna
The DC power cable includes four unterminated wires. You
will only use three of the wires in your installation (you will
not use the green wire). See "Connecting the Cables" on
page 4.
Sierra Wireless AirLink GX400 Modem Installation Guide
Installation Guide
This guide provides the following information:
•
Parts included in your kit
•
Front/rear panel overview (LEDs, ports, connections)
•
Steps for installing the antennas and the modem and
•
Contact and Technical Support information (see bottom of this
page)
Please read this manual thoroughly before beginning the
installation.
Enter your dealer information here for quick reference:
Name:
Phone:
Email:
1
_______________________________________________
_______________________________________________
_______________________________________________
Modem
GPS / cellular modem antenna
Power cable
876-0238-000 Rev A1
Advertisement
Related Manuals for Sierra Wireless AirLink GX400
Summary of Contents for Sierra Wireless AirLink GX400
-
Page 1: Installation Guide
The DC power cable includes four unterminated wires. You will only use three of the wires in your installation (you will not use the green wire). See “Connecting the Cables” on page 4. GPS / cellular modem antenna Sierra Wireless AirLink GX400 Modem Installation Guide 876-0238-000 Rev A1... - Page 2 Serial port Connect directly to laptop via serial cable to configure modem (AgJunction does not provide the cables or software for this functionality—contact Sierra Wireless for more information) Ethernet port Connect AgJunction Link or other components for communication to this port...
-
Page 3: Mounting The Antennas
5.3 mm (0.2 in) shown at right, securely fasten the 4 places modem in your preferred location. 62.5 mm (2.5 in) 22.5 mm (0.9 in) 5.2 mm (0.2 in) 136.7 mm (5.4 in) Sierra Wireless AirLink GX400 Modem Installation Guide 876-0238-000 Rev A1... -
Page 4: Connecting The Cables
Wire colors shown at source source left correspond to wire negative positive colors of power cable shown above right Battery Power Source (9 VDC to 36 VDC 12 VDC nominal) Sierra Wireless AirLink GX400 Modem Installation Guide 876-0238-000 Rev A1...
