QUICK REFERENCE CARD
Sierra Wireless GX450 Modem
This guide provides step-by-step instructions for a quick setup
of the Sierra Wireless GX450 modem with or without a WiFi
X-Card present.
Note: Failure to follow these instructions carefully may
damage the X-Card and void the warranty agreement.
STEP 1: INSTALL THE SIM CARD
1. Ensure the device is powered off.

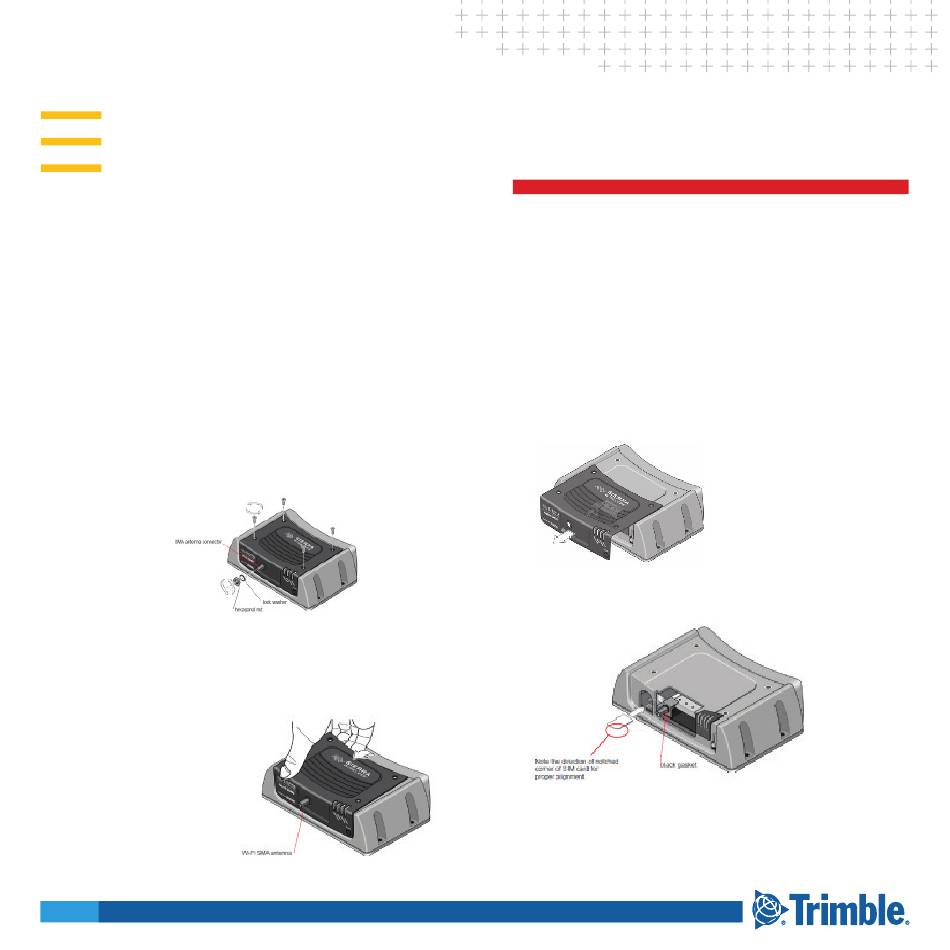

2. Unscrew the 8 mm hexagonal nut on the WiFi SMA antenna
connector at the front of the gateway, using the socket and
wrench. Then slide off the nut and lock washer. Save the nut
and washer. These are used again.
3. Remove the four screws used to secure the black decorative
cover. Use a Phillips #1 screwdriver. Save the screws for
reinstallation.
4. Gently tilt up the back of the decorative black cover and then
move the cover forward so that it slides over the WiFi SMA
antenna connector.
TRANSFORMING THE WAY THE WORLD
Warning!
Do not reset the modem to factory defaults.
Do not press and hold the reset button on the front
of the modem.
Do not utilize the web interface to update modem
firmware or perform a factory default reset.
This will remove the custom Trimble firmware and
void the factory warranty.
5. Continue to slide the cover horizontally until it clears the
SMA antenna connector.
6. Lift the cover to remove it completely. Save the cover. It is
used later.
7. Insert the SIM card, with the gold contacts facing down and
the notch on the right side, as shown in the illustration.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GX350 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sierra Wireless GX350

  • Page 1 Sierra Wireless GX450 Modem Warning! This guide provides step-by-step instructions for a quick setup of the Sierra Wireless GX450 modem with or without a WiFi Do not reset the modem to factory defaults. X-Card present. Do not press and hold the reset button on the front Note: Failure to follow these instructions carefully may of the modem.
  • Page 2 STEP 2: CONNECT THE CELLULAR ANTENNA 8. Ensure the black gasket is in place at the base of the SMA antenna connector. 1. Attach the supplied antenna to the magnetic antenna base. 9. Re-install the decorative black cover: Note the rubber o-ring location to ensure a proper seal. 2.
  • Page 3 STEP 4: CONNECT THE DISPLAY OR TM-200 Module RECEIVER 1. Ensure the TM-200 Module is powered off. 2. Using cable P/N 109865, attach connector P1 to the Ethernet port on the GX450 modem and then attach connector P2 to See the wiring diagrams. the Ethernet expansion port on the TM-200 Module or to the expan-sion port on the EXP-100 Module.
  • Page 4 FmX/FM-1000 Integrated Display CFX-750/FM-750 Display 1. Ensure the display is powered off. 1. Ensure the display is powered off. 2. Connect USB hub P/N 83517 to the USB port on the back of 2. Connect the USB hub P/N 83517 to the USB port on the back the display.
  • Page 5 STEP 5: CONNECT TO THE CELLUAR NETWORK Configure the WiFi Access Point (WiFi modems only) 1. Ensure the display is powered off. The first time the gateway is powered on its home network, it 2. Attach connector P1 of cable P/N 109862 to the power port on automatically starts the activation/provisioning process and the GX450 modem.
  • Page 6: Step 6: Configure The Network

    STEP 6: CONFIGURE THE NETWORK 4. Click the WAN/Cellular tab, and navigate to the User- Entered APN section. Enter the custom APN here if the modem does not automatically detect the cellular For many cellular carriers, the modem will automatically providers APN number.
  • Page 7 FIRMWARE VERSION MATRIX Product Software Version Required FMX®/FM-1000™ Integrated Display Version 10.01 or later, released December 2016 CFX-750/FM-750 display Version 7.71 or later, released October 2016 TMX-2050™/XCN-2050™ display Version 4.31 or later, released November 2016 AG-372 receiver Version 6.20 or later, released April 2016 GFX-750 Version 1.0 or later, released November 2017...
  • Page 8: Led Behavior

    LED BEHAVIOR Color/Pattern Description Power No power or input voltage ≥ 36 VDC ≤ 9 VDC. Solid green Gateway is connected to nominal power and is operating normally. Flashing amber/green Gateway has a GPS fix. Solid amber Gateway is entering a low-power mode or system low-level boot. Solid red Gateway is not operational (failure or in low-power mode).
  • Page 10 EU DECLARATION OF CONFORMITY Hereby, Sierra Wireless declares that the radio equipment GX450 is in compliance with Directive 2014/53/EU. The full text of the declaration of conformity is available at the following internet address: http:/ /source.sierrawireless.com Sierra Wireless, 13811 Wireless Way, Richmond, BC, Canada,...
