Quick Start (For Japan)
H3C S3100 Series Ethernet Switches

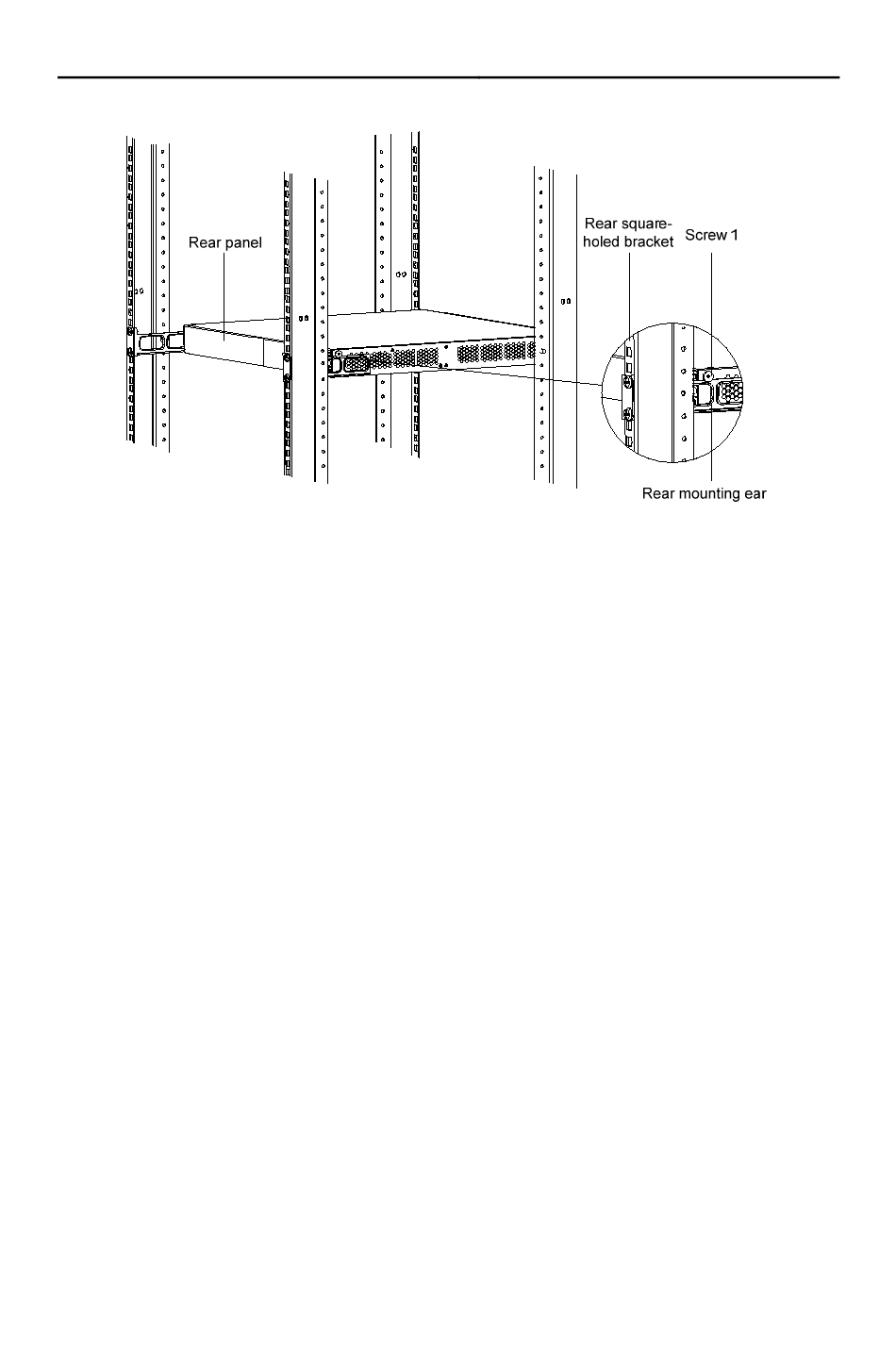

Screw 1: Load-bearing screw
Figure 3-8 Effect diagram of front and rear mounting ear
installation (1)
6) Fix the other end of the front mounting ears to the front
brackets with screws and captive nuts and ensure that front
and rear mounting ears have fixed the switch in the cabinet
securely, as shown in Figure 3-9.
3-11
Chapter 3 Installation
