Sfera Proximity Reader
353200
User and installation manual
www.bticino.com

Advertisement

Table of Contents
loading

Related Manuals for Bticino Sfera

Summary of Contents for Bticino Sfera

  • Page 1 Sfera Proximity Reader 353200 User and installation manual www.bticino.com...
  • Page 2 Sfera Proximity Reader User and installation manual...

  • Page 3: Table Of Contents

    Sfera Proximity Reader User and installation manual Contents General information Warnings and recommendations Regulatory warnings Front view Back view Installation Mounting Disassembling Use of the device Device configuration Manager master badge New manager master badge Deleting the manager master badge...

  • Page 4: General Information

    Sfera Proximity Reader User and installation manual General information The Sfera Proximity Reader must only be used with BTicino 2 wire digital systems. Front covers that may be used with the Sfera BTicino Proximity reader: Front cover 353205 Front cover 353201/02/03...

  • Page 5: Warnings And Recommendations

    Sfera Proximity Reader User and installation manual Warnings and recommendations It is important to read this manual carefully before proceeding with the installation. The warranty becomes automatically void in case of negligence, improper use, tampering by unauthorised personnel. Regulatory warnings...

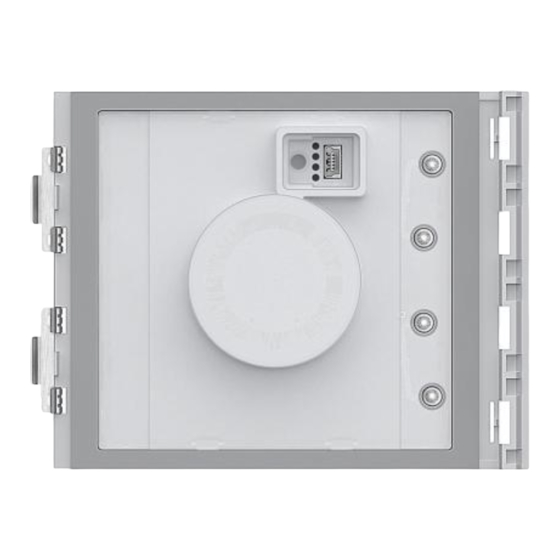

  • Page 6: Front View

    Sfera Proximity Reader User and installation manual Front view 1. Programming reset pushbutton. 4. Green LED on steady: access granted, or programming successful. 2. Mini-USB programming connector. 5. Antenna. 3. Red LED on steady: access denied, or programming error.

  • Page 7: Back View

    Sfera Proximity Reader User and installation manual Back view 1. Connection to the door lock (CP-P1) 4. Connector for the connection to and tamper (CP-P2 – future application) subsequent modules. pushbutton. 5. Connector for the connection to previous 2. Local relay contacts.

  • Page 8: Installation

    Sfera Proximity Reader User and installation manual Installation Mounting Caution: Installation, configuration, starting-up and maintenance must be performed exclusively by qualified personnel.
  • Page 9 Sfera Proximity Reader User and installation manual...

  • Page 10: Disassembling

    Sfera Proximity Reader User and installation manual Disassembling...
  • Page 11 Sfera Proximity Reader User and installation manual...

  • Page 12: Use Of The Device

    User and installation manual Use of the device The BTicino Sfera Proximity Reader enables residents to open a door lock using univocal codes, read by appropriate badges. The device consists of an antenna used for reading the badge (transponder), and luminous and sound indicators for the control of the correct storage of the codes inside the badge.

  • Page 13: Manager Master Badge

    Sfera Proximity Reader User and installation manual Manager master badge For safety reasons, a “MASTER” badge is required, directly programmed by the installer, providing access to the programming of the other badges (apartment master, passepartout, and residents). To access programming mode, a master badge must be allocated to the device. Up to 20 master badges may be saved.
  • Page 14 A short beep and the switching off of the LED confirm that the programming sequence has been completed. The Sfera Proximity Reader is ready for normal operation. The programming sequence must start within 30 seconds from the moment the...

  • Page 15: Deleting The Manager Master Badge

    Sfera Proximity Reader User and installation manual Deleting the manager master badge 1. Press and hold down the programming pushbutton; the green LED flashes. Keep holding down the pushbutton; the device emits 1 beep per second, and a long beep after ten seconds.

  • Page 16: Passepartout Badge

    Sfera Proximity Reader User and installation manual Passepartout badge To access the programming of a “Passepartout” badge, a master badge is necessary. Up to 100 passepartout badges may be saved. The proximity reader will confirm that the badge has been accepted by means of audible signals and the switching on of the green LED.
  • Page 17 A short beep and the switching off of the LED confirm that the programming sequence has been completed. The Sfera Proximity Reader is ready for normal operation. The programming sequence must start within 30 seconds and must be carried out in...

  • Page 18: Deleting Passepartout Badges

    Sfera Proximity Reader User and installation manual Deleting passepartout badges Three times Manager master 1. Move the system management key card close to the reader; The device emits a beep, and the green LED starts flashing. Repeat the operation three times in succession.

  • Page 19: Resident Badge

    Sfera Proximity Reader User and installation manual Resident badge To access the programming of a “RESIDENT” badge a manager master badge or an apartment badge is necessary (depending on the mode used). By configuring the device with M=00, this can be associated with 5 badges per apartment.
  • Page 20 A short beep and the switching off of the LED confirm that the programming sequence has been completed. The Sfera Proximity Reader is ready for normal operation. The programming sequence must start within 30 seconds and must be carried out in...

  • Page 21: Deleting Resident Badges (M=00)

    Sfera Proximity Reader User and installation manual Deleting resident badges (M=00) M= 00 managing residents using the manager master. Manager master 1. Move the system management key card close to the reader. The device emits a beep, and the green LED starts flashing.
  • Page 22 Sfera Proximity Reader User and installation manual Manager master 3. Use the previously used system management key card to confirm the cancellation. The device emits a long confirmation beep. The red LED flashes and then switches off to confirm that the deletion has been performed.

  • Page 23: New Apartment Master Badge (M= 01)

    Sfera Proximity Reader User and installation manual New apartment master badge (M= 01) M= 01 managing residents using the apartment master Manager master 1. Move the system management key card close to the reader; the reader emits a short beep and the green LED starts flashing.
  • Page 24 A short beep and the switching off of the LED confirm that the programming sequence has been completed. The Sfera Proximity Reader is ready for normal operation. The programming sequence must start within 30 seconds and must be carried out in...

  • Page 25: Deleting The Apartment Master Badge (M=01)

    Sfera Proximity Reader User and installation manual Deleting the apartment master badge (M=01) M= 01 managing residents using the apartment master. Three times Manager master 1. Move the system management key card close to the reader; the device emits a beep, and the green LED starts flashing.

  • Page 26: New Resident Badge (M= 01)

    Sfera Proximity Reader User and installation manual New resident badge (M= 01) M= 01 managing residents using the apartment master. Apartment Master 1. Move the apartment management key card close to the reader; the reader emits a short beep and the green LED starts flashing. The programming procedure starts.
  • Page 27 A short beep and the switching off of the LED confirm that the programming sequence has been completed. The Sfera Proximity Reader is ready for normal operation. The programming sequence must start within 30 seconds and must be carried out in...

  • Page 28: Deleting Resident Badges (M=01)

    Use the TiSferaDesign software to delete the resident key cards. Reset If it is necessary to delete all previously saved badges, It is also possible to reset the Sfera Proximity Reader and delete all the previously set modules. Caution: disconnect the power supply (BUS).

  • Page 29: Configuration Using The Software

    Sfera Proximity Reader to the PC using a USB-miniUSB cable. miniUSB - USB When updating the software the device must be powered. The Sfera Proximity Reader connected using an USB cable is recognised by the PC as a virtual port (VIRTUAL COM).
  • Page 30 BTicino SpA Viale Borri, 231 21100 Varese www.bticino.com BTicino Spa reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same.
