Page 1: User Manual
A WILSON ELECTRONICS BRAND DRIVE 4G-X FLEET PROFESSIONAL VEHICLE CELLULAR SIGNAL BOOSTER KIT User Manual 877.312.4547 solidsignal.com NEED HELP? -
Page 2: Table Of Contents
______ Index Package Contents Mount Outside Antenna & Route Cable STEP 1: Mount Inside Antenna STEP 2: Wiring The Power Supply To Vehicle Battery STEP 3: Connect Coax Cables To Booster STEP 4: Connect Power Supply To Booster STEP 5: Light Patterns Troubleshooting Safety Guidelines... -
Page 3: Package Contents

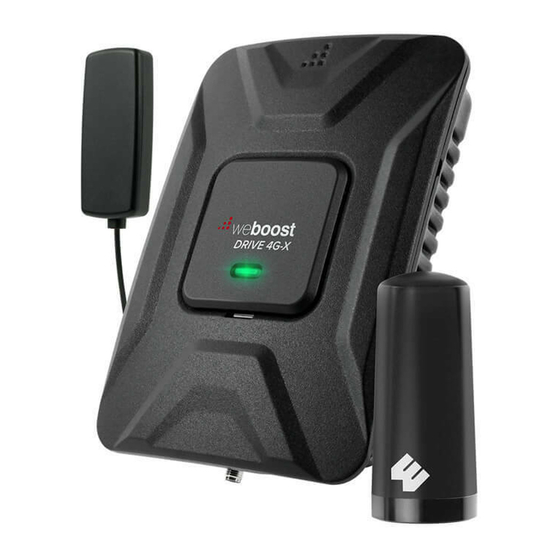

________ Package Contents Outside NMO 4G In-Vehicle Power Drive 4G-X Antenna Antenna + Supply Booster Connector & Bracket Mounting Cable Optional Protective Cable Tape For Installation DRIVE 4G-X FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT... -
Page 4: Step 1: Mount Outside Antenna & Route Cable
Set up the system by routing the cable through an open door or window, completing the setup instructions, verifying the system works as desired, and then drilling the hole. PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE 4G-X FLEET... - Page 5 3/4” bit Protective Tape After hole has been drilled, remove collar insert NMO Mounting Cable through (SMA insert connector end fi rst) and through hole remove collar. DRIVE 4G-X FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT...
- Page 6 NMO mount and hand tighten into place. Ensure the antenna is screwed all the way in and make sure the casket is touching the vehicle surface. screw on NMO Antenna hand tighten PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE 4G-X FLEET...
- Page 7 For a professional installation we recommend routing the cable under the headliner and down through the side trim panel to the desired booster location on the fl oor of the vehicle. side trim panel DRIVE 4G-X FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT...
-
Page 8: Step 2: Mount Inside Antenna
Adhesive and Velcro® mounting options are included. seat option dash option In-Vehicle ehic Antenna Antenn In-Vehicle Antenna clean surface of dash before attaching adhesive strip PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE 4G-X FLEET... -
Page 9: Step 3: Wiring The Power Supply To Vehicle Battery
. DRIVE 4G-X FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT... -
Page 10: Step 4: Connect Coax Cables To Booster
NOTE: Bracket can be used to fasten booster in a specifi c location if desired. from NMO Outside Antenna Connect the cable from the 4G In-Vehicle Antenna to the port labeled “Inside Antenna” on the booster. from Inside Antenna PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE 4G-X FLEET... -
Page 11: Step 5: Connect Power Supply To Booster
NOTE: Do NOT connect the power to the Signal Booster until you have connected both the Inside and Outside Antennas. Power Supply DRIVE 4G-X FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT... -
Page 12: Light Patterns
NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply. After troubleshooting you must initiate a new power cycle by disconnecting and then reconnecting power to the Booster. 877.312.4547 solidsignal.com NEED HELP? PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE 4G-X FLEET... -
Page 13: Troubleshooting
The best way to keep these spheres of signal from overlapping is to maximize separation between the inside and outside antennas. DRIVE 4G-X FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT... -
Page 14: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to temperatures in excess of that range. -
Page 15: Specifi Cations
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifi cations not expressly approved by weBoost could void the authority to operate this equipment. 877.312.4547 solidsignal.com... -
Page 16: Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material...
