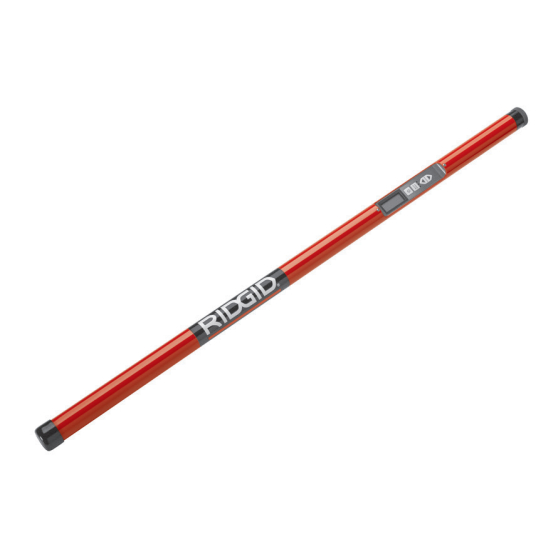

Emerson RIDGID MR-10 Operator's Manual

Magnetic locator
Hide thumbs Also See for RIDGID MR-10:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
MR-10
Magnetic Locator
WARNING!
Read this Operator's Man ual
carefully before using this
tool. Failure to understand
and follow the contents of this
manual may result in electri-
cal shock, fire and/or serious
person al injury.
MR 10
Operator's Manual
Visit us at www.TestEquipmentDepot.com
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIDGID MR-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson RIDGID MR-10

Summary of Contents for Emerson RIDGID MR-10

  • Page 1 MR 10 Operator’s Manual MR-10 Magnetic Locator WARNING! Read this Operator’s Man ual carefully before using this tool. Failure to understand and follow the contents of this manual may result in electri- cal shock, fire and/or serious person al injury. 99 Washington Street Melrose, MA 02176 Phone 781-665-1400...

  • Page 2: Table Of Contents

    MR-10 Magnetic Locator Table of Contents Recording Form for Machine Serial Number ................1 Safety Symbols ..........................2 General Safety Information Work Area Safety ........................2 Electrical Safety ..........................2 Personal Safety...........................2 Equipment Use and Care......................2 Service............................3 Specific Safety Information MR-10 Magnetic Locator Safety....................3 Description, Specifications and Standard Equipment Description..........................3 Specifications..........................4...

  • Page 3: Safety Symbols

    MR-10 Magnetic Locator Safety Symbols In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safety information. This section is provided to improve under- standing of these signal words and symbols . This is the safety alert symbol.

  • Page 4: Service

    MR-10 Magnetic Locator does not turn it ON and OFF. Any tool SAVE THESE INSTRUCTIONS! that can not be controlled with the switch is dangerous and must be repaired. Keep this manual with the tool for use by the operator. •...

  • Page 5: Specifications

    MR-10 Magnetic Locator Specifications Icons Display......Black and White LCD Speaker .......Mylar Speaker Absolute Signal Body Material/ Strength Construction ....Aluminum Tube with (0-99) Signal Recessed Controls Graph Length ......39.25" (100 cm) Polarity Indicator Operating Temperature ....0º F to +120º F (- Gain 18º...

  • Page 6: Changing/Installing Batteries

    MR-10 Magnetic Locator from electric shock and other causes The RIDGID MR-10 Magnetic Loca - NOTI E and prevent equipment damage. tor conforms to all applicable EMC standards. However, the possibility of it causing interfer- 1. Make sure the unit is OFF.

  • Page 7: Locator General Considerations

    MR-10 Magnetic Locator 1. Check for an appropriate work area as stones, snow, ice, water and the ground it- self. These have no effect on the performance in-dicated in the General Safety of the locator (unless they contain ferrous or Section.

  • Page 8: Specific Locating

    MR-10 Magnetic Locator “AUTO NULL ” sections for information to Specific Locating improve locates. See Figures 7 and 8 for 1. When the signal source has been gener- locating signal patterns. ally located, move the locator to the verti- cal position. Signal for a Signal for a Vertically...

  • Page 9: Auto Null

    Avoid rubbing too hard. Do not use aggressive mal settings and sensitivity, cycle the power cleaning agents or solutions. OFF, then ON. Calibration The RIDGID MR-10 Magnetic Locator is fac- tory calibrated and only requires recalibration Before AUTO NULL if repaired.

  • Page 10: Disposal

    MR-10 Magnetic Locator Disposal Parts of the RIDGID MR-10 Magnetic Locator contain valuable materials and can be recy- cled. There are companies that specialize in recycling that may be found locally. Dispose of the components in compliance with all applica- ble regulations.
  • Page 11 MR-10 Magnetic Locator...

  • Page 12: Lifetime Warranty
