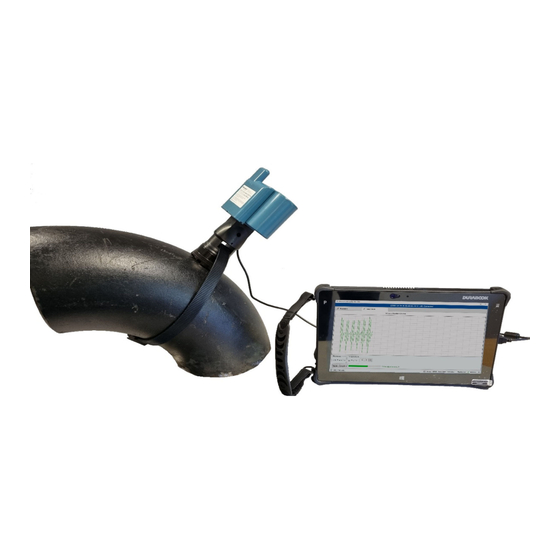

Emerson Rosemount IK220 Quick Start Manual

Emerson Rosemount IK220 Quick Start Manual

Installation kit for rosemount wireless corrosion transmitters

Advertisement

Quick Links

Quick Start Guide
MS-00825-0100-4213, Rev AA
June 2023
Rosemount
IK220 Installation Kit
for Rosemount Wireless Corrosion
Transmitters
including Rosemount CC21
Commissioning Communicator

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rosemount IK220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Emerson Rosemount IK220

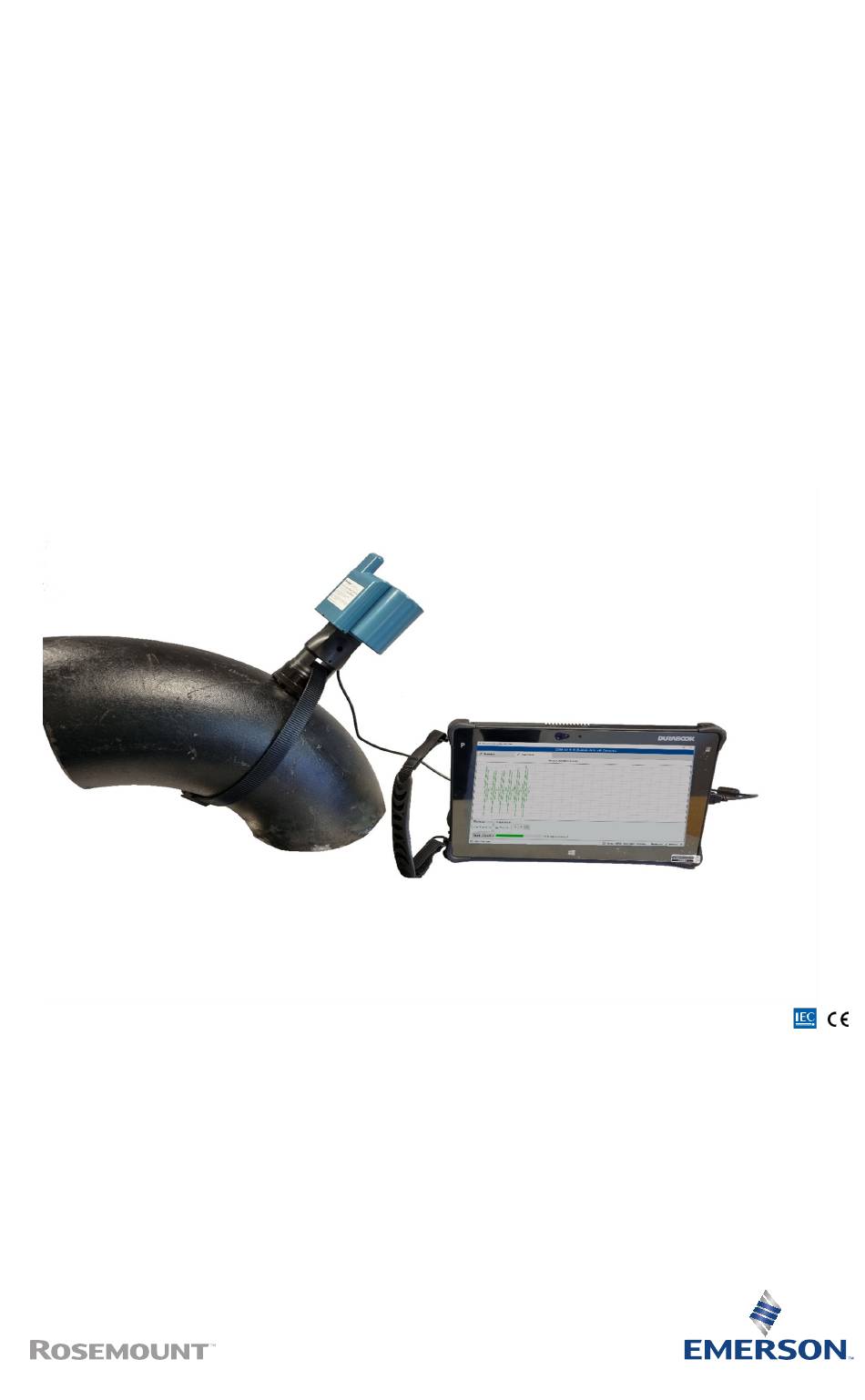

  • Page 1 Quick Start Guide MS-00825-0100-4213, Rev AA June 2023 Rosemount IK220 Installation Kit ™ for Rosemount Wireless Corrosion Transmitters including Rosemount CC21 Commissioning Communicator...
  • Page 2 (I.S.) installations. Refer to the Rosemount Wireless Corrosion Transmitter Reference Manual for more instruction. The manual and this guide are also available electronically on Emerson.com\Rosemount. This guide does not provide instructions for the mechanical installation of the Rosemount Wireless Corrosion Transmitters.
  • Page 3 June 2023 Quick Start Guide Product certifications........................ 20 Declaration of Conformity......................23 China RoHS..........................24 Quick Start Guide...
  • Page 4 Quick Start Guide June 2023 Emerson.com/Rosemount...
  • Page 5: Rosemount Installation Kit Ik220 Overview

    June 2023 Quick Start Guide 1  Rosemount Installation Kit IK220 Overview 1.1  What is in the box Below lists the equipment which is contained in the Installation Kit IK220, it is broken down to show which equipment is used with each Rosemount Wireless Corrosion Transmitter for installation.
  • Page 6 Smart nylon band (ET210) (3.5 m) • Standard sensor shoe (ET210/ET310) (5) • Flat sensor shoe (ET210/ET310) (5) • Strap tensioner ET310 (1) • Strap tensioner ET410 (1) • Metal strapping (ET310/ET410) (3.5 m) • Uncalibrated sample block (including washers and nuts) Emerson.com/Rosemount...
  • Page 7: Commissioning Overview And General Information

    June 2023 Quick Start Guide 2  Commissioning overview and general information 2.1  Rosemount CC21 Commissioning Communicator The Rosemount CC21 Commissioning Communicator is an electronic interface which connects the tablet PC to Rosemount Wireless Corrosion Transmitter for commissioning in the field. Compatibility The Rosemount CC21 is ‘associated apparatus’...
  • Page 8 1. Common join key: on the gateway, a single join key is entered. On the transmitters the same common join key can be set on all sensors to join the network. 2. Commission file: provisioning uses automated data entry from commissioning file saved onto the tablet PC. Emerson.com/Rosemount...
  • Page 9 Rosemount WirelessHART Gateway Setup This section details how to set up a common join key on the Rosemount WirelessHART Gateway. Procedure 1. Navigate to Emerson gateway browser. 2. Once in the gateway browser, navigate to Network → Network Settings. 3. Select Show join key button.
  • Page 10 Quick Start Guide June 2023 Wireless HART Gateway settings Figure 2-2: Rosemount A. Network settings B. Show join key button C. Common join key option D. Yes and No button on active advertising E. Save Changes button Emerson.com/Rosemount...
  • Page 11: Commissioning Of A Rosemount Wireless Corrosion Transmitter

    June 2023 Quick Start Guide 3  Commissioning of a Rosemount Wireless Corrosion Transmitter This section will detail the process of commissioning a Rosemount Wireless Corrosion Transmitter. This will include configuring and provisioning the transmitter to a wireless network and installation of the transmitter. 3.1 ...
  • Page 12 5. Click Join Network to attempt join the sensor to the network now and to view the join status. This is useful for wireless diagnostics. Figure 3-2: Installation App provisioning screen information entry A. Manual option B. Network ID C. Join Key D. Provision button E. Join Network button Emerson.com/Rosemount...
  • Page 13 June 2023 Quick Start Guide 3.3  Provisioning using automated data entry via commissioning file Automated data entry can make provision large numbers of transmitters faster and less prone to typing errors. First, a commissioning file for each network needs to be generated and copied to the installation app folder on the tablet PC.
  • Page 14 – there may be stronger radio links to the network which will subsequently appear. Note When installation is completed, the sensor will automatically start trying to join the network. During this time, network discovery is disabled. Emerson.com/Rosemount...
  • Page 15 June 2023 Quick Start Guide Figure 3-5: Network discovery in provisioning tab A. Shows if network discovery is active B. Visual indication of signal strength C. Network ID D. Transmitter ID given by WirelessHART gateway E. Number of hops between transmitter and gateway F.
  • Page 16 Quick Start Guide June 2023 Figure 3-7: Status bar during installation A. Installation status of the transmitter Emerson.com/Rosemount...
  • Page 17: Installation Of A Rosemount Wireless Corrosion Transmitter

    June 2023 Quick Start Guide 4  Installation of a Rosemount Wireless Corrosion Transmitter For mechanical installation and detailed commissioning information of a Rosemount Wireless Corrosion Transmitter, refer to the specific transmitter quick start guide. Note Rosemount Wireless Corrosion Transmitters should not be installed without installation training being delivered by qualified trainers.
  • Page 18 For detailed installation instructions, please refer to the specific transmitter quick start guide: Rosemount Wireless ET210 Corrosion Transmitter Quick Start Guide Rosemount Wireless ET310 Corrosion Transmitter Quick Start Guide Rosemount Wireless ET310C Corrosion Transmitter Quick Start Guide Rosemount Wireless ET410 Corrosion Transmitter Quick Start Guide Emerson.com/Rosemount...
  • Page 19 June 2023 Quick Start Guide Figure 4-2: Installation ET210/ET310/ET410 installation A. Start/Pause button B. Complete button C. Transmitter measured thickness (mm or inches) D. Transmitter measured temperature (Celsius or Fahrenheit) E. Transmitter ultrasonic waveform including envelope (update every 10 seconds) 4.3  Troubleshooting If the application or the transmitter stops responding, then carry out the process below:...
  • Page 20 European Directive information A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. 5.2  Ordinary location certification...
  • Page 21 June 2023 Quick Start Guide Use only with approved sensor - see instructions. Markings: Potential static hazard The CC21 Commissioning Cable must only be Special Conditions: used in a non-hazardous area – it provides an interface between unspecified non-hazardous area equipment and a Mesh sensor. It must not be used to provide power whilst located in a hazardous area.
  • Page 22 See certificate for specific conditions of safe use. Special Conditions: 5.9  Brazil UL-BR 19.1144X Certificate: ABNT NBR IEC 60079-0:2013, ABNT NBR IEC Standards: 60079-11:2013 [Ex ia Ga] IIC Markings: See certificate for specific conditions of safe use. Special Conditions: Emerson.com/Rosemount...
  • Page 23 June 2023 Quick Start Guide 6  Declaration of Conformity Quick Start Guide...
  • Page 24 Permasense, a strategic business unit of Emerson Electric Co, St. Louis, Missouri and part of Emerson Process Management (“Emerson”), is aware of and has a program to meet its relevant obligations of the Chinese Order No. 32, 2016; Administrative Measures for the Restriction of Hazardous Substances in Electrical and Electronic Equipment (China RoHS 2), which entered into force on 1 July 2016.
  • Page 25 June 2023 Quick Start Guide Quick Start Guide...
  • Page 26 Quick Start Guide June 2023 Emerson.com/Rosemount...
  • Page 27 June 2023 Quick Start Guide Quick Start Guide...
  • Page 28 2023 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
