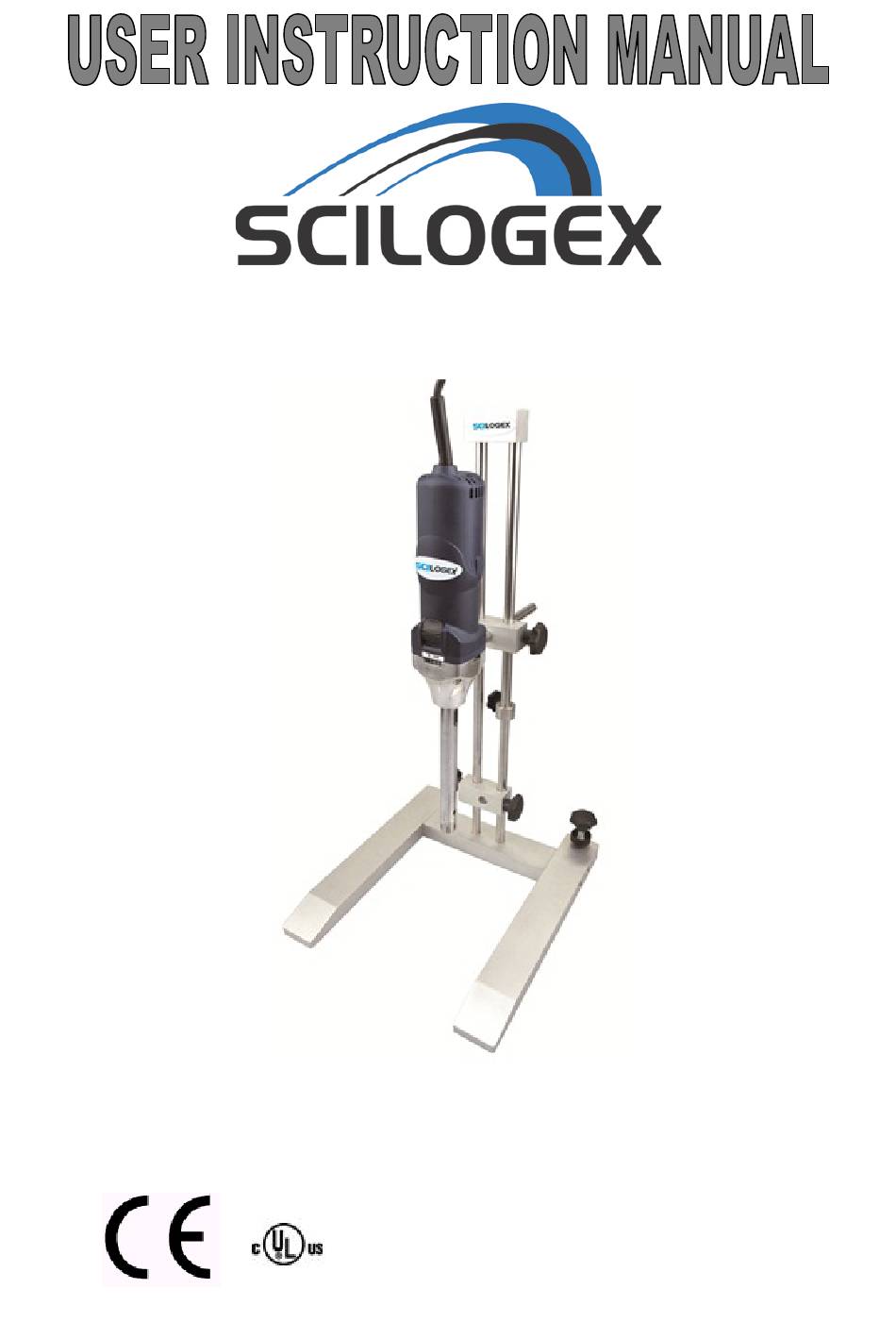

- Page 1 D-500 HOMOGENIZER ____________________________________________________________________________ CE/ cULus-Declaration of Conformity EC-Declaration of Conformity...
-
Page 2: Table Of Contents
Contents Product Description Important Safeguards Unpacking the instrument Proper use of the D-500 Dispersing Aggregates Cleaning Sterilization Corrosion Working with D-500 Working with Speed Control Overload protection Maintenance of Motor Specification and Technical D-500 Stand Assembly of H Stand Assembly of the PT plate stand... -
Page 3: Product Description
Any further dispersing will only introduce unnecessary heat into the medium. • The D-500 must never run without liquid – the lower slide bearing is cooled and lubricated by the liquid phase of the treated medium. Any dry running will destroy the slide bearing! •... -
Page 4: Unpacking The Instrument
Return unit to our service center for examination and repair. • Switch off the unit before changing the dispersing element. • Only suitable dispersing shafts from SCILOGEX may be used. • Glass vessels must always be secured with a clamp to prevent them from sliding. - Page 5 Make sure that the unit is switched off when connecting or disconnecting the dispersing shaft into the drive. For correct use the D-500 drive must be secured to a stand with a boss head. We recommend that for this purpose you only use the H-600 plate stand or the PT-plate stands.
-
Page 6: Dispersing Aggregates
Dispersing Aggregates • Disassembly of the dispersing tool 1. Hold the dispersing tool with a cloth (to avoid cutting of your hand due to sharp edges at the stator). At the same time turn the shaft tube clockwise. Screw the shaft tube of the stator and pull it over the axle and put it aside. -
Page 7: Cleaning
3. Remove the PTFE bearing from the axle. After this disassembly you should have the following five parts: shaft tube, axle, rotor, stator and PTFE bearing. To assemble the dispersing tool please follow above 3 steps in reverse order (3./2./1.) When assembling the dispersing tool, always make sure that the PTFE bearing is fixed correctly and cooled by the working medium. -
Page 8: Working With D-500
1= 10,000rpm 2= 14,000rpm 3= 18,000rpm 4= 22,000rpm 5= 26,000rpm 6= 30,000. (+/- 1000rpm at each setting.) For an emergency stop, press the large button on the drive. For reaching the best effects, the rotor speed of D-500 should be adapted to the dispersion problem. IMPORTANT The maximum rotor speed depends on the kind of sample and its viscosity. -
Page 9: Overload Protection
Stand The D-500 homogenizer is normally delivered with either the H-600 stand or the PT 800 plate stand. It is always important to safely fix the unit even when not using the original stand for it, as the center of gravity is relatively high. -
Page 10: Assembly Of The Pt Plate Stand
Once this bottom “H” has been fixed, take the double rod and insert into the middle piece of the foot stand. Turn it around and fix it with the other allen key using the smaller screws for it. Turn it around and fix the drive with the support rod at the upper boss head and the strap clamp at the lower boss head. -
Page 11: Warranty
This instrument has a warranty of 24 months from date of purchase which covers material and workmanship. Scilogex will repair or replace free of charge the defect parts which were found defective after an inspection finds that the defect is due to materials or workmanship. - Page 12 This Limited Warranty applies only to the product manufactured by or for Scilogex that can be identified by Name Plate. Scilogex is not liable for any damage to or loss of any products or material stored or tested in the instruments or programs, data, or other information stored on any media contained within the product, or any non-Scilogex product or part not covered by this warranty.
