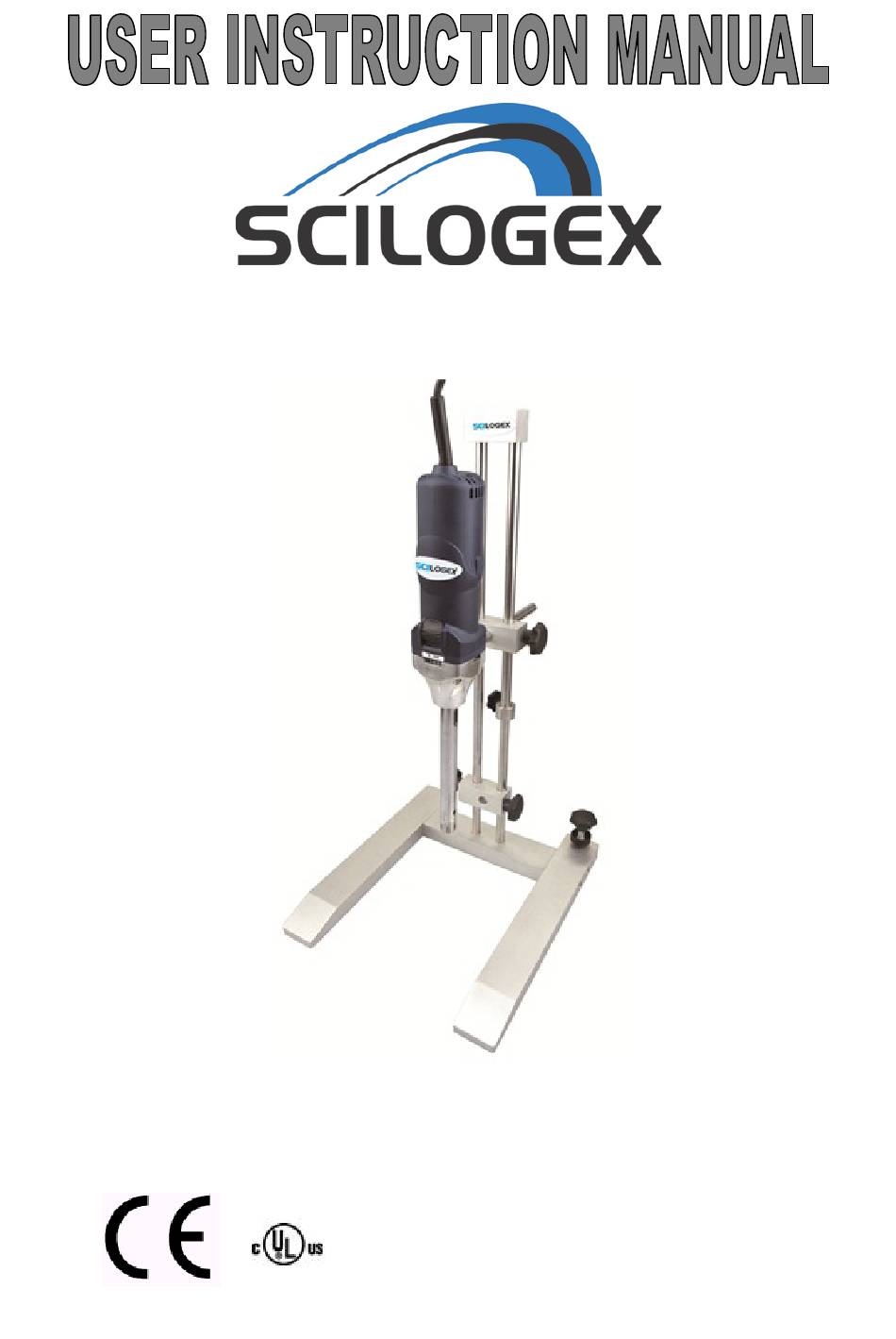

- Page 1 D-500 HOMOGENIZER ____________________________________________________________________________ CE/ cULus-Declaration of Conformity EC-Declaration of Conformity...
-
Page 2: Table Of Contents
Contents Product Description Important Safeguards Unpacking the instrument Proper use of the D-500 Dispersing Aggregates Cleaning Sterilization Corrosion Working with D-500 Working with Speed Control Overload protection Maintenance of Motor Specification and Technical D-500 Stand Assembly of H Stand Assembly of the PT plate stand Warranty... -
Page 3: Product Description

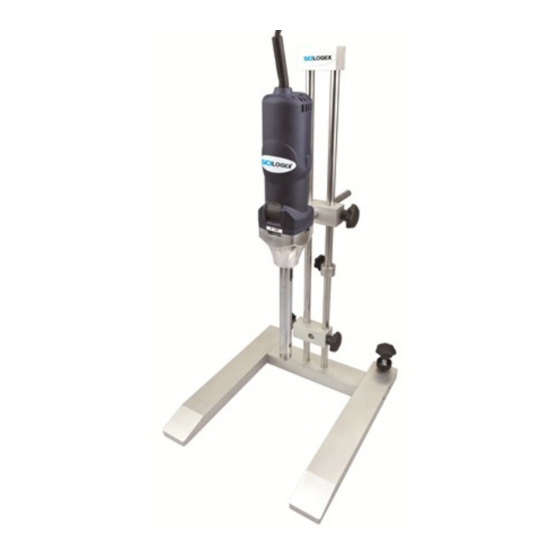

Product Description The D-500 Disperser is a high speed dispersing instrument. It is based on the Rotor/Stator Technology. The shaft and rotor/stator can be disassembled for easy cleaning. You will receive the dispersing tools completely assembled for immediate use with your disperser. Should you dismantle these (e.g. for cleaning) please refer to page 6. -
Page 4: Unpacking The Instrument
Return unit to our service center for examination and repair. • Switch off the unit before changing the dispersing element. • Only suitable dispersing shafts from SCILOGEX may be used. • Glass vessels must always be secured with a clamp to prevent them from sliding. - Page 5 Proper Use The voltage on the name plate must match the main voltage. If it does not, do not operate the instrument. Screw the support rod into the flange of the drive and tighten it. Make sure that the “nylon” washer is between the flange and the nut to avoid scratching and rubbing marks on the flange.
-
Page 6: Dispersing Aggregates
Dispersing Aggregates • Disassembly of the dispersing tool 1. Hold the dispersing tool with a cloth (to avoid cutting of your hand due to sharp edges at the stator). At the same time turn the shaft tube clockwise. Screw the shaft tube of the stator and pull it over the axle and put it aside. -
Page 7: Cleaning
3. Remove the PTFE bearing from the axle. After this disassembly you should have the following five parts: shaft tube, axle, rotor, stator and PTFE bearing. To assemble the dispersing tool please follow above 3 steps in reverse order (3./2./1.) When assembling the dispersing tool, always make sure that the PTFE bearing is fixed correctly and cooled by the working medium. -
Page 8: Working With D-500
Working with D-500 The optimal immersion depth of the dispersing shaft is approximately 2/3 below the liquid surface and 1/3 above the bottom of the beaker. When inserting the dispersing shaft slightly slanted (approximately at an angle 15 degrees), it improves the efficiency of the disperser. -
Page 9: Overload Protection
Overload Protection When the motor overloads and the power supply cuts off, switch off the main switch to O, disconnect the aggregate and re-start the instrument as fast as possible, without the load in order to accelerate cooling by the built-in fan. Maintenance of Motor The motor does not need any maintenance and there are no parts inside which can be repaired by the user. -
Page 10: Assembly Of The Pt Plate Stand
Once this bottom “H” has been fixed, take the double rod and insert into the middle piece of the foot stand. Turn it around and fix it with the other allen key using the smaller screws for it. Turn it around and fix the drive with the support rod at the upper boss head and the strap clamp at the lower boss head. -
Page 11: Warranty
This instrument has a warranty of 24 months from date of purchase which covers material and workmanship. Scilogex will repair or replace free of charge the defect parts which were found defective after an inspection finds that the defect is due to materials or workmanship. - Page 12 This Limited Warranty applies only to the product manufactured by or for Scilogex that can be identified by Name Plate. Scilogex is not liable for any damage to or loss of any products or material stored or tested in the instruments or programs, data, or other information stored on any media contained within the product, or any non-Scilogex product or part not covered by this warranty.
