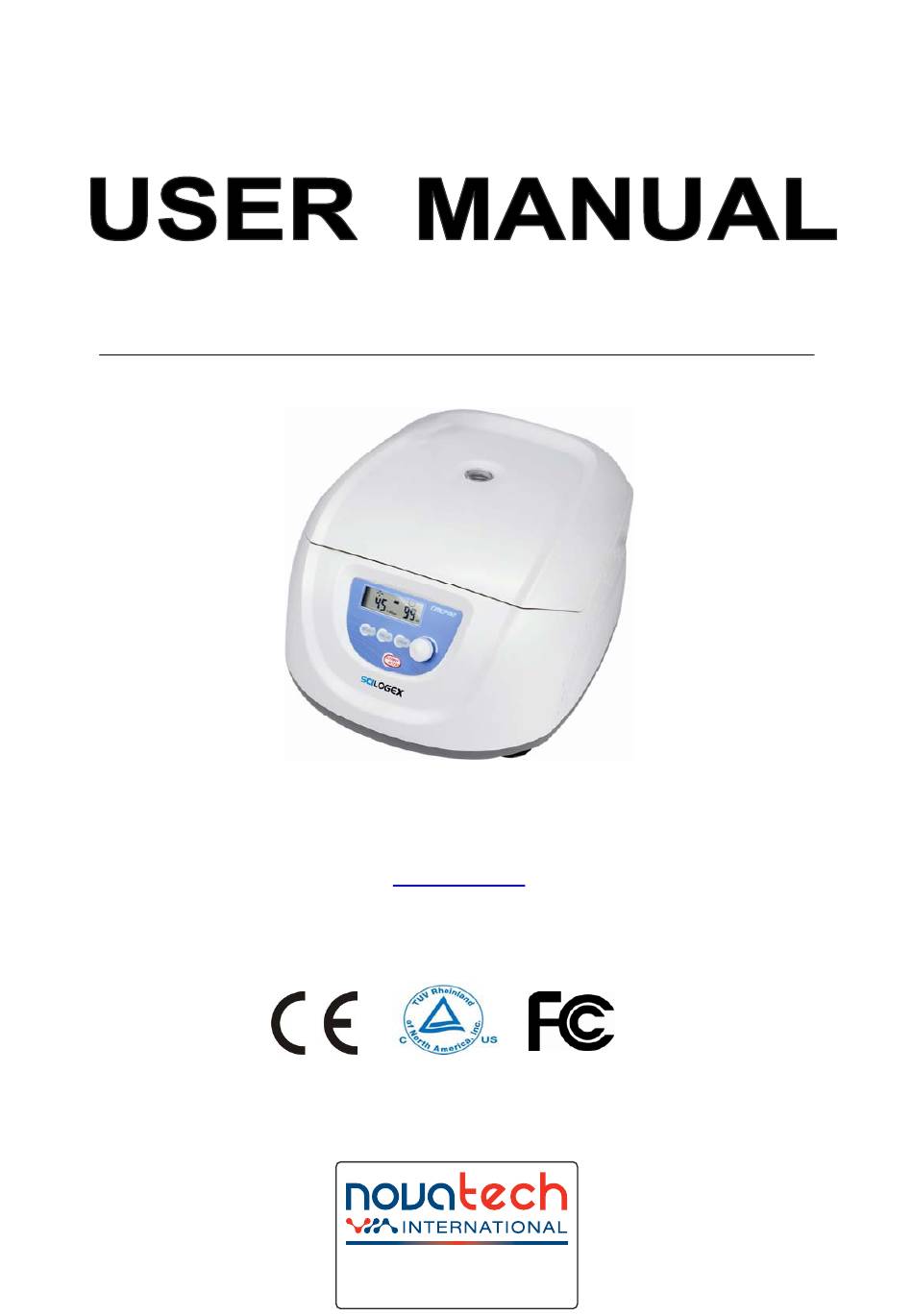

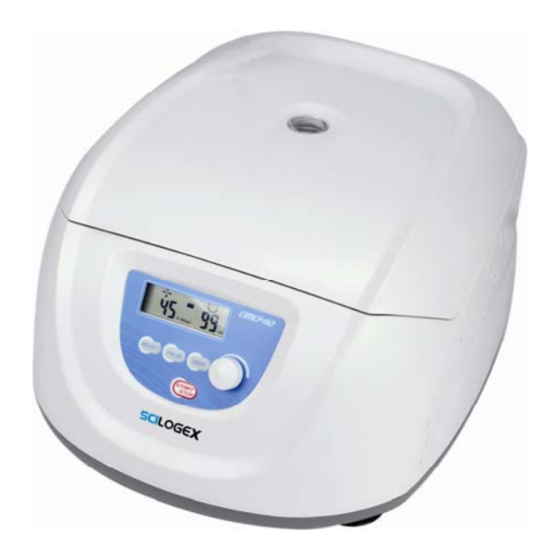

- Page 1 DM 0412 Clinical Centrifuge SCILOGEX, LLC www.scilogex.com Before using centrifuge, please carefully read this user manual for efficient operation and safety. sales@novatech-usa.com www.novatech-usa.com Tel: (866) 433-6682 Fax: (866) 433-6684 Tel: (281) 359-8538 Fax: (281) 359-0084...
-
Page 2: Table Of Contents
Contents Safety Reminder ............................. 1 1. Specifications ............................. 3 2. Declaration of Conformity ......................... 3 3. Required Operational Conditions ....................... 4 3.1 Basic operational conditions ......................4 3.2 Transport and storage conditions ...................... 4 4. Installation ..............................4 4.1 Location ............................4 4.2 Connection of the power cord and grounding .................. - Page 3 Copyright: No part of this manual may be reproduced or transmitted without prior written permission of Scilogex. We can not be responsible to inform at real-time if the outline and specifications of centrifuge are subject to change for improvement. VERSION201204...
-
Page 4: Safety Reminder
Safety Reminder Common safety precautions Carefully read the following safety precautions for a thorough understanding. Follow the instructions and procedures described in this manual to operate this centrifuge safely. Carefully read all safety messages in this manual and the safety instructions on the centrifuge. Safety messages are labeled as indicated below. - Page 5 If the centrifuge, rotor and accessories that have been contaminated by solutions with toxic, radioactive or pathogenic materials, clean it according to the decontamination procedure as specified. If you require service at site, please sterilize and decontaminate the centrifuge in advance, and then notify the service center the details of the materials and procedure.
-
Page 6: Specifications
1. Specifications Maximum speed 4500rpm (300-4500rpm), increment: 100rpm Maximum RCF 2490×g, increment: 100×g Maximum capacity 10ml×12, 15ml×8 Timer 30 seconds -99 minutes-HOLD, continuous operation Driving Motor Brushless DC motor Safety devices Door interlock、 over-speed detector、 over-temperature detector、 automatic internal diagnosis Power requirements Single-phase, 110V-240V, 50Hz/60Hz, 3A Dimensions（mm）... -
Page 7: Required Operational Conditions
3. Required Operational Conditions 3.1 Basic operational conditions （1）Power: 110V-240V, 50Hz/60Hz, 3A. （2）Ambient temperature: 2℃~40℃. （3）Relative humidity: ≤80%. （4）No vibration and airflow around. （5）No electric dust, explosive and corrosive gases around. 3.2 Transport and storage conditions （1）Storage temperature: -40℃~55℃. （2）Relative humidity: ≤93%. 4. -
Page 8: Connection Of The Power Cord And Grounding
4.2 Connection of the power cord and grounding WARNING To avoid electrical shocks, ensure your hands are dry when touching the power cord. This centrifuge must be grounded properly. An minimum 10A outlet providing a sufficient ground is required, and this must meet local safety requirements. -
Page 9: Operation Panel
6. Operation panel Figure 6-1 Operation panel Item Symbol Name Function Select button Press the button to choose the program which you want to modify. The speed can be accelerated and held at the speed when Pulse button pressing Pulse on. Press the button to open the door The button is not available Open/ lock button when the centrifuge is running. -
Page 10: Rotor Preparation
Main interface is as figure 6-2. The speed is set to be 4500rpm, the door lock is released and the running time is 12 minutes. When speed symbol is rotating, this indicates the centrifuge is running. If the rotation is faster, the speed is higher. Temperature of chamber is displayed and cannot be controlled. Time symbol displays the ratio of working to time setting. -
Page 11: Operation
8. Operation CAUTION Do not push or lean against the centrifuge while it is running. Do not run the centrifuge when fragments or sample solutions are left in the centrifuge chamber. Always keep the centrifugal chamber clean. If the centrifuge makes strange noise during operation, stop it immediately and contact our service center. - Page 12 There is a circulating function to increase/decrease the speed values. Rotate the program button clockwise to change settings from small → large → maximum → minimum. Rotate the program button anti-clockwise to change settings from large → small → minimum → maximum. （2）Set the time Press select button , time value flashes in the time setting mode.
-
Page 13: Rcf Operation
8.2 RCF operation （1） Turn on the power switch （2） Set a RCF (Relative Centrifugal Force) value CAUTION Do not exceed the allowable maximum RCF value of the rotor and adapters. Press the select button and choose speed unit ×g, the speed symbol will flash into RCF value input status. - Page 14 （1）Centrifuge If the centrifuge is exposed to ultraviolet rays for a long time, the color of the door may be changed or the label may be peel off. After using, cover the centrifuge with a piece of cloth to protect it from direct exposure.
-
Page 15: Troubleshooting
10. Troubleshooting 10.1 Possible problems and solutions This centrifuge has a self-diagnostic function. If a problem occurs, an error/warning code will be displayed on the time display screen, and the operator can determine the malfunction with the alarm code below. Symptom Causes Solutions... -
Page 16: Instructions For The Rotor And Tubes
10.2.2 In the case of power outage The door cannot be opened automatically if there is a power outage. It is available to be opened manually as follows. （1）Ensure if the rotor has stopped rotating. Listen carefully to ensure no rotating sound can be heard. （2）Insert a screw driver into a hole to open door. - Page 17 11.1.2 Available rotors and adapters Maximum Tubes Dimension Maximum Rotor Radius Tubes (Ф×L Adapters speed（rpm） type Rotor (×g） 15ml con 17×120 4500 2490 A10P15 1.5-5ml vacu 13×82 4500 2218 A10P15 13×106 2490 4-7 ml vacu 4500 A10P15 16×75 2218 A12-10P 8.5-10 ml vacu 16×107 A10P15...
-
Page 18: Tubes
11.2 Tubes 11.2.1 Cleaning and sterilizing tubes O：Applicable X：Inapplicable Conditions Materials Acidic（pH5 or lower） Acidic（higher than pH5 ） Alkaline（higher than pH9 ） Cleaning fluids Alkaline（pH9 or lower） Neutral（pH7） Warm water(up to 70 ) ℃ Ultrasonic cleaning Neutral detergent（pH7） 115℃（0.7kg/cm ）30minutes Autoclaving 121℃（1.0kg/cm ）20 minutes... -
Page 19: Calculate Rcf
11.2.4 Conditions and life expectancy of tubes The life expectancy of plastic tubes depends on the characteristics of samples, speed of the rotor used, temperature applied and so on. When the plastic tubes are used for ordinary aqueous samples (pH between 5.0 and 9.0), their life expectancies are defined as follows. -
Page 20: 14．Warranty
14 ． Warranty 14.1 Warranty of centrifuge This centrifuge is guaranteed for two years from the date of delivery provided that it has been operated and maintained properly. 14.2 Warranty of the rotor The rotor is guaranteed for 5 years from the date of delivery upon manufacturer. Please pay attention, do not use the rotor once it has been corrosion or fatigue damage. - Page 21 SCILOGEX, LLC 500 Four Rod Road Suite 122 Berlin, CT 06037 Tel: 1-860-828-5614 Fax: 1-860-828-5389 E-mail: info@scilogex.com Http://www.scilogex.com...
