Reference Number Index - ABB REACT 2 Quick Installation Manual

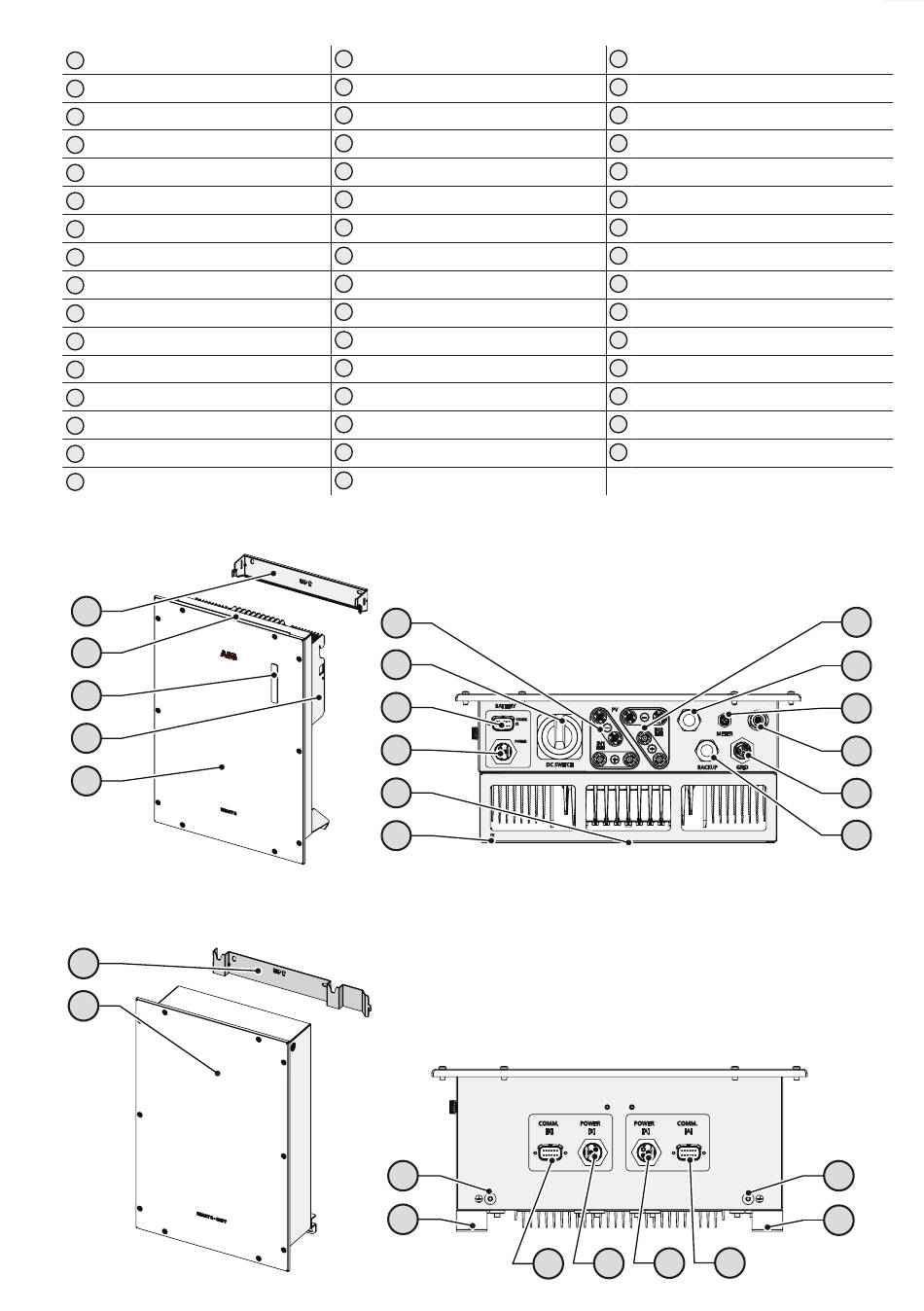

1. Reference number index

REACT2-UNO wall bracket
01
REACT2-UNO
02
Synoptic
03
heat sink
04
REACT2-UNO front cover
05
Input connectors MPPT1 (IN1)
06
DC and battery disconnect switch
07
Battery communication connector COMM.[A]
08
Battery power connector POWER [A]
09
REACT2-UNO wall attachment point
10
REACT2-UNO external protective earth
11
Input connectors MPPT2 (IN2)
12
Service cable gland
13
METER connector
14
Wi-Fi antenna connector
15
AC output (BACKUP) cable gland
16
REACT2-UNO-3.6/5.0-TL (external view)
01
02
03
04
05
REACT2-BATT (external view)
20
21
30
31
32
17 AC output (GRID) connector
20 REACT2-BATT wall bracket
21 REACT2-BATT
22 Battery communication connector COMM.[B]
23 Battery power connector POWER [B]
24
REACT2-BATT external protective earth [B]
25
REACT2-BATT external protective earth [A]
26 REACT2-BATT wall attachment point
30 LAN Ethernet connector (RJ45)
31 Coin cell
32 DC input terminal
33 Memory card
34 RS485-METER communication card
35
RS485-PC communication card
36
RS485-LOGGER communication card
37
RS485-LOGGER line termination switch
06
07
08
BATTERY
09
10
11
24
26
PC-485 LOGGER-485
METER-485
CARD CARD CARD
- 2 -
38 RS485-PC line termination switch
39 RS485-METER line termination switch
40 Communication and control signal screw terminal block
41 Multifunctional relay screw terminal block
42 AC output (BACKUP) screw terminal block
43
AC output (GRID) screw terminal block
44
Cable conduit
50 Meter ABB B21
51 REACT-MTR-1PH
52 Hole for line cable
53 AC power supply terminal block
54 METER RS485 screw terminal block
55 METER ABB B23, B24
56
Three-phase connection screw terminal block
57
METER RS485 screw terminal block
PV
COMM.
POWER
DC SWITCH
MEMORY PC-485 LOGGER-485
METER-485
CARD CARD CARD
CARD
RS485
RS485
METER
LOGGER
RS485
PC
COMM. POWER POWER COMM.
[B] [B] [A] [A]
09
22 23
RS485
METER RS485
LOGGER
RS485
PC
12
13
14
METER
15
BACKUP GRID
17
16
33
34
35
36
37
38
39
25
26
08
(Continue to next page)
