AMP(I)-8075 and AMP(I)-8150

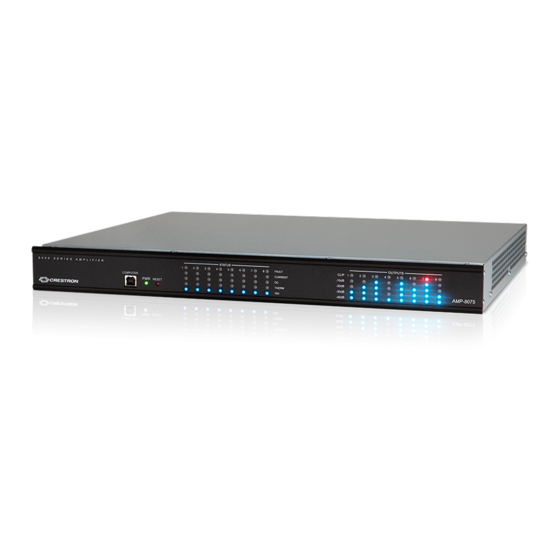

Crestron® 8-Channel Commercial Amplifiers
The Crestron® AMP-8075, AMP-8150, AMPI-8075, and
high-efficiency multichannel power amplifiers offering excellent sound
quality. All four feature similar operation. For simplicity within this guide,
the term "amplifier" is used for all models except where noted.
In the Box
1
AMP-8075, AMP-8150, AMPI-8075, or AMPI-8150,
8-Channel Commercial Amplifier
Additional Items
2
Bracket, Rack Ear, 1U (2032122)
2
Bracket, Rear Mounting (2045677)
8
Connector, 2-Pin (2044402)
8
Connector, 3-Pin (2003575)
AMP-8075 and AMP-8150 Only
1
Fuse, 10.0 A, Time Lag, 1.25 in. x 0.25 in., Ceramic Cartridge,
250 V (2017577)
1
Cable, Power, 6 ft 7 in. (2001134)
AMPI-8075 and AMPI-8150 Only
1
Fuse, 6.3 A, Time Lag, 5 x 20 mm, Ceramic Cartridge,
250 V (2024846)
1
Cable, Power (P/N varies by country)
AMPI-8150
are
These devices occupy 1U of rack space.

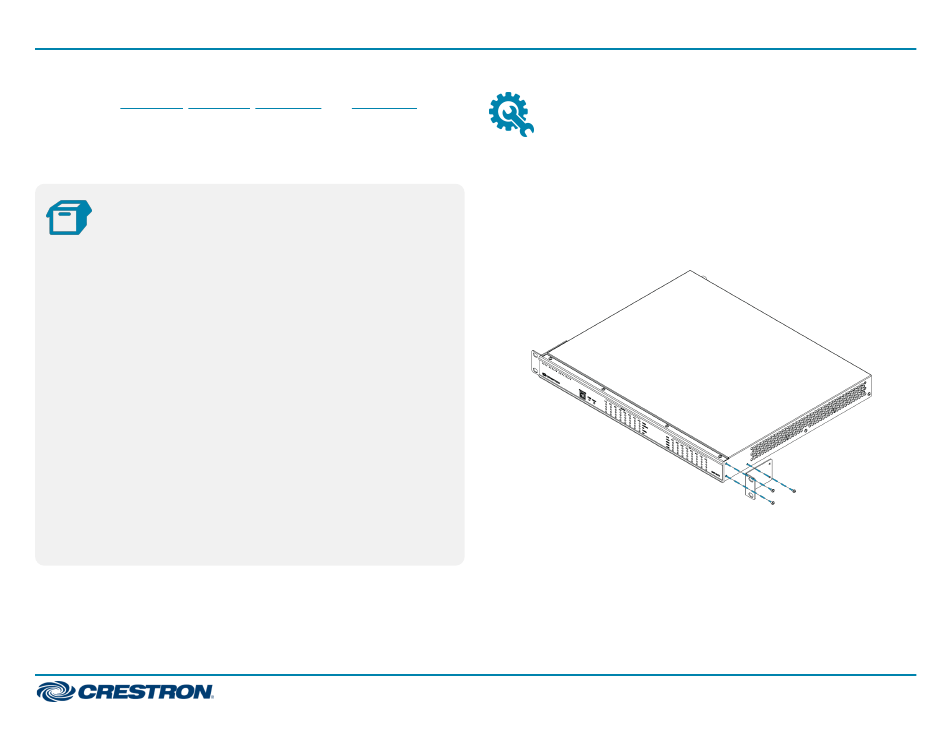

To install the included rack ears:
1. Use a #1 Phillips screwdriver to remove the three screws from each
side of the front of the amplifier as shown in the following illustration.
2. Use the six screws removed in the previous step to attach the included
rack ears to the amplifier.
Install the Device
Quick Start
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crestron AMP-8075
Summary of Contents for Crestron AMP-8075
- Page 1 Quick Start AMP(I)-8075 and AMP(I)-8150 Crestron® 8-Channel Commercial Amplifiers The Crestron® AMP-8075, AMP-8150, AMPI-8075, and AMPI-8150 high-efficiency multichannel power amplifiers offering excellent sound Install the Device quality. All four feature similar operation. For simplicity within this guide, the term "amplifier" is used for all models except where noted.
-
Page 2: Connect The Device
Quick Start AMP(I)-8075 and AMP(I)-8150 Crestron® 8-Channel Commercial Amplifiers To install the included rear mounting brackets: 1. Use a #1 Phillips screwdriver to remove the four screws from the rear Connect the Device of the amplifier as shown in the following illustration. - Page 3 Quick Start AMP(I)-8075 and AMP(I)-8150 Crestron® 8-Channel Commercial Amplifiers Amplifier Front Amplifier Rear...
-
Page 4: Speaker Connections
Speakers are bridged with the Crestron Avia™ Audio tool, which can be downloaded from www.crestron.com/software. The possible bridging combinations are Output 1 & Output 2, Output 3 & Output 4, Output 5 &... -
Page 5: Fuse Replacement
Quick Start AMP(I)-8075 and AMP(I)-8150 Crestron® 8-Channel Commercial Amplifiers Fuse Replacement if the amplifier does not power up when power is turned on, the fuse may Operate the Device need to be replaced. The fuse holder is located on the rear panel next to the power switch. -
Page 6: Monitor Operation
Presence of a fault secure location in the cloud. Supported devices are preconfigured to An overcurrent condition connect to the service. Use of the service requires a registered Crestron XiO Cloud account. A DC offset condition Excessive operating temperature... - Page 7 AMP(I)-8075 and AMP(I)-8150 Crestron® 8-Channel Commercial Amplifiers Additional Information Visit the Product Page For information on RoHS declarations for the AMP-8075 and AMP-8150, refer to the AMP-8075 and AMP-8150 Notice (Doc. 8759). Scan the QR code to visit the product page.
