Crestron C2N(I)-AMP-4X100 Quick Start Manual

C2N(I)-AMP-4X100
4 Room Audio System
Hardware Hookup
1

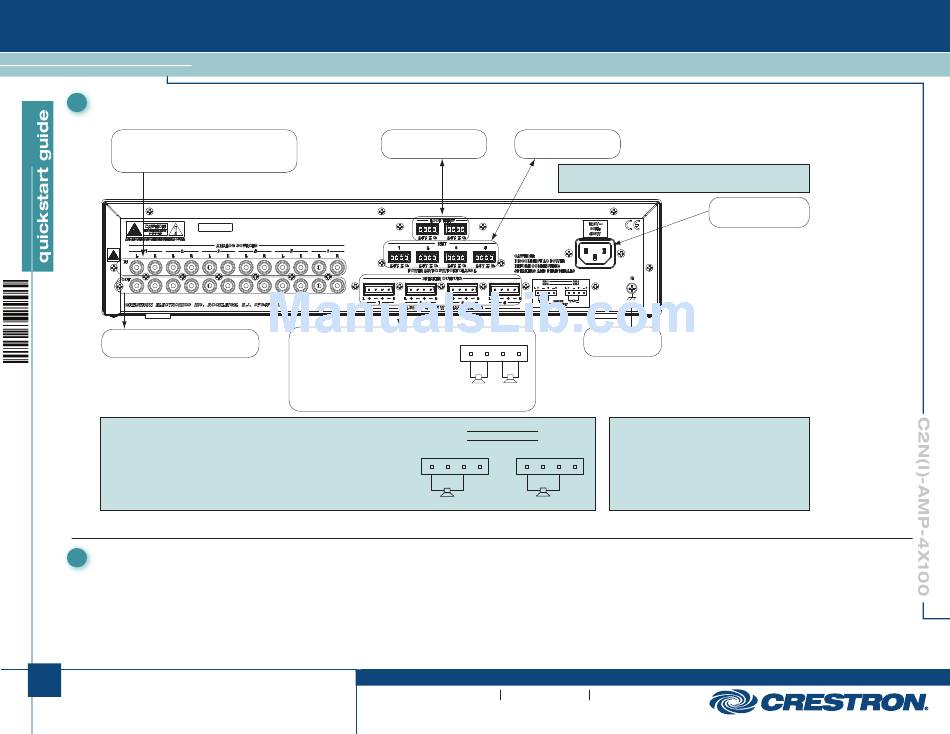

Make the necessary connections as called out in the diagram below. Connect power last.
ANALOG SOURCES (IN)
From Unbalanced Stereo Line Level Audio
Outputs from Source Devices
ANALOG SOURCES (OUT)
To Additional Amplifiers
NOTE: For triple the power (into 8 Ω speakers only), SPEAKER OUTPUTS 1
and 2 or SPEAKER OUTPUTS 3 and 4 can be bridged. For example, the left
speaker's + and - terminals are connected to the two + terminals of output #1
and the right speaker's + and - terminals are connected to the two + terminals
of output #2. Refer to the diagram to the right.
To adjust volume when bridged, select ROOM 1 for SPEAKER OUTPUTS 1
and 2 or select ROOM 2 for SPEAKER OUTPUTS 3 and 4.
Attach the Labels
2
Use the included labels and inserts to prepare the C2N(I)-AMP-4X100:
1. Locate the SOURCE and ROOM label inserts included with the unit (SOURCE insert has space for six labels, ROOM insert has room for four labels).
2. Apply the peel-and-stick labels in the appropriate positions on the inserts, being careful to match label positions to what is configured in the programming software. For neatest appearance, when applying a label,
cover the white guidelines on the insert. First and last labels cover one line each; labels in between cover lines on their left and right sides.
1
